Description: 40TPS12A 1200V 40A SCR

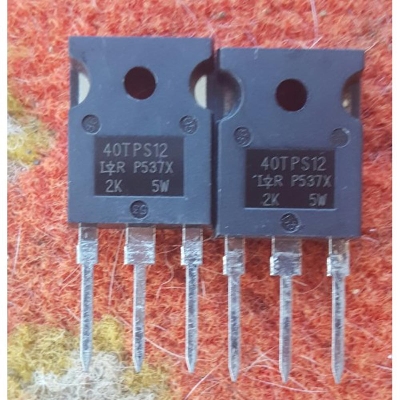

40TPS12APBF 40TPS12A 40TPS12 35A 1200V Phase Control SCR Unidirectional Thyristor Transistor TO-247 Package Electronics Circuitry & Parts

The VS-40TPS… high voltage series of silicon controlled rectifiers are specifically designed for medium power switching and phase control applications. The glass passivation technology used has reliable operation up to 125 °C junction temperature.

Features:

• Type: SCR
• Size: 15.87mm Length, 5.31mm Width, 20.7mm Height
• Material: Plastic Molded
• Voltage Rating: 1200V Repetitive Peak Reverse
• Current Rating: 35A
• Temperature Rating: -40 to 150 Deg C
• No. of Pins: 3 Pins
• Mounting: Through Hole
• Designed and qualified according to JEDEC®-JESD 47
• Low IGT parts available
• 125 °C max. operating junction temperature
• Material categorization: for definitions of compliance please see
• Low IGT .
• 125 °C max. operating junction temperature.
• Thyristor High Voltage .
• Phase Control SCR, 40A

Application:

• Typical usage is in input rectification crowbar (soft start) and AC switch motor control, UPS, welding and battery charge.

• High Voltage Mosfet with low saturation voltage
• Collector-Emitter Voltage (VCE): 1200V
• Collector Current (IC): 30A @25°C
• Minimum Gate threshold voltage (VGE) is 4.5V
• Maximum Gate threshold voltage (VGE) is 8.5V
• Gate-Emitter Voltage is (VGE) is ±20V (max)
• Rise time and fall time is about 20ns and 100ns respectively.
• Available in To-3P package
