4CH 4 Channel Wireless RF Remote Control 4CH Remote Control 4 Keys Wireless Transmitter Receiver Circuit With 4 Button Switches Remote 4CH Transmitter And Receiver For Arduino

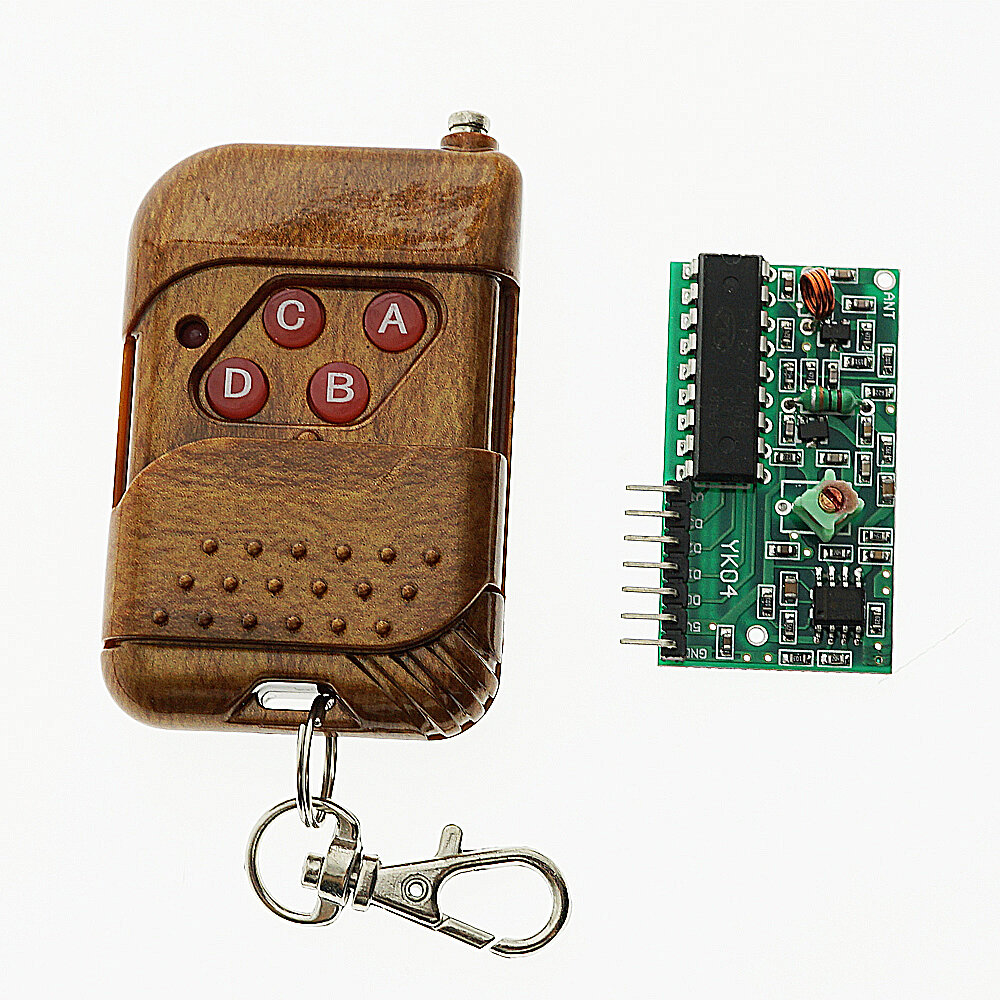

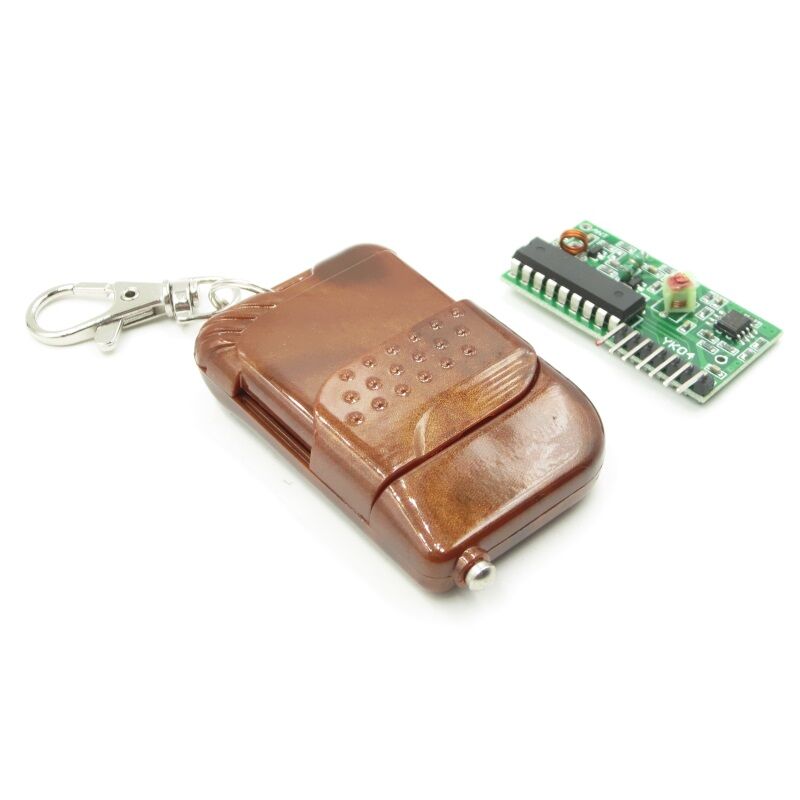

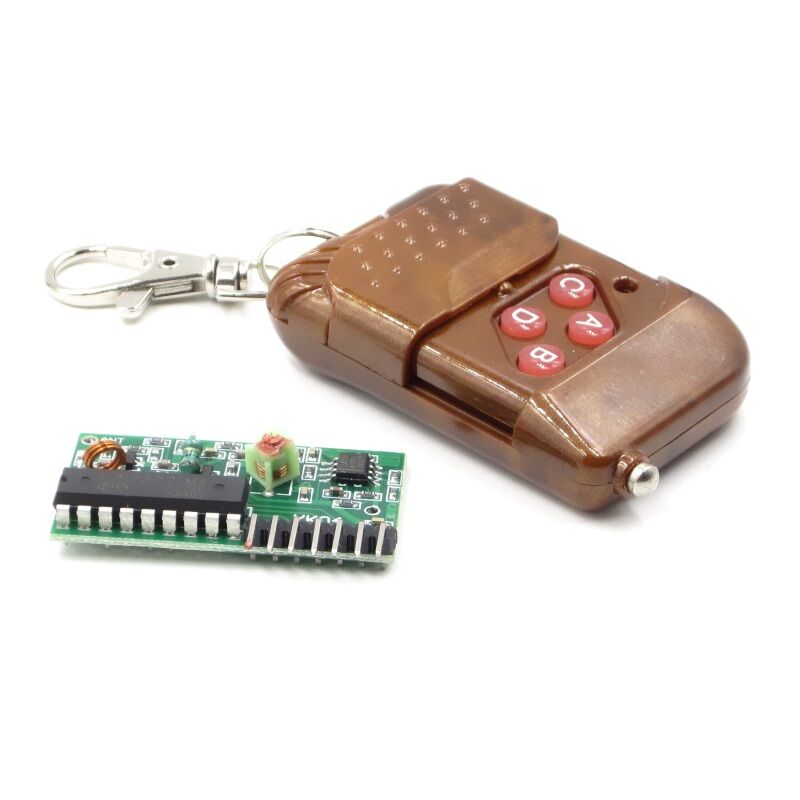

Description: Wireless 4 Channel RF 433MHz Remote Control 4 Keys Transmitter Receiver Module 4 CH With Battery

4 Channel Wireless RF Remote Control 433MHz 4CH Remote Control 4 Keys Wireless Transmitter Receiver Circuit With 4 Button Switch Remote 4CH Transmitter And Receiver For Arduino

The 4 Channel Wireless Four Button Remote Control Transmitter Receiver Module with Non-Locking mode can be composed of a fixed code four radio receiver circuits, remote control of four four-bit data output code corresponding to the module, you can easily make up a wireless remote control receiver circuit.

They are widely applied in the majority home electronics enthusiasts, industrial remote control electronic product design and development can be very good as a single-chip signal input source, especially for students and colleges electronic circuit design, the graduate design of the remote control circuit portion. Receiver module self-locking, non-locking, interlocking three models, please describe in the remarks before ordering.

• There are four buttons on the remote control and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3.
• Press the buttons to transmit signals, the corresponding data bit is output high.

Features:

• Product Name Wireless RF Remote Control Transmitter Receiver
• Chip SC2262
• Keys 4 Key Remote Control
• Channel Numbers 4CH
• Powered By 1 x DC 12V 23A Battery(Not Included Here)
• Operating Current 10mA
• Resonance Mode ASK
• Operating Frequency 315MHZ
• Transmitting Diatance
• 120-150M
• Coding Type Rolling Code
• Remote Control Size 6 x 3.8 x 1.3cm/2.4″ x 1.5″ x 0.51″(L*W*T)
• Receiver Module Size
• Voltage: DC5V
• Chip: SC2272-M4
• Frequency:315-433MHZ
• Size:4 x 2.8 x 0.6cm/1.6″ x 1.1″ x 0.24″(L*W*T)
• Materials Plastic Electronic Parts
• Main Color Black Green
• Net Weight 38g

Specifications:

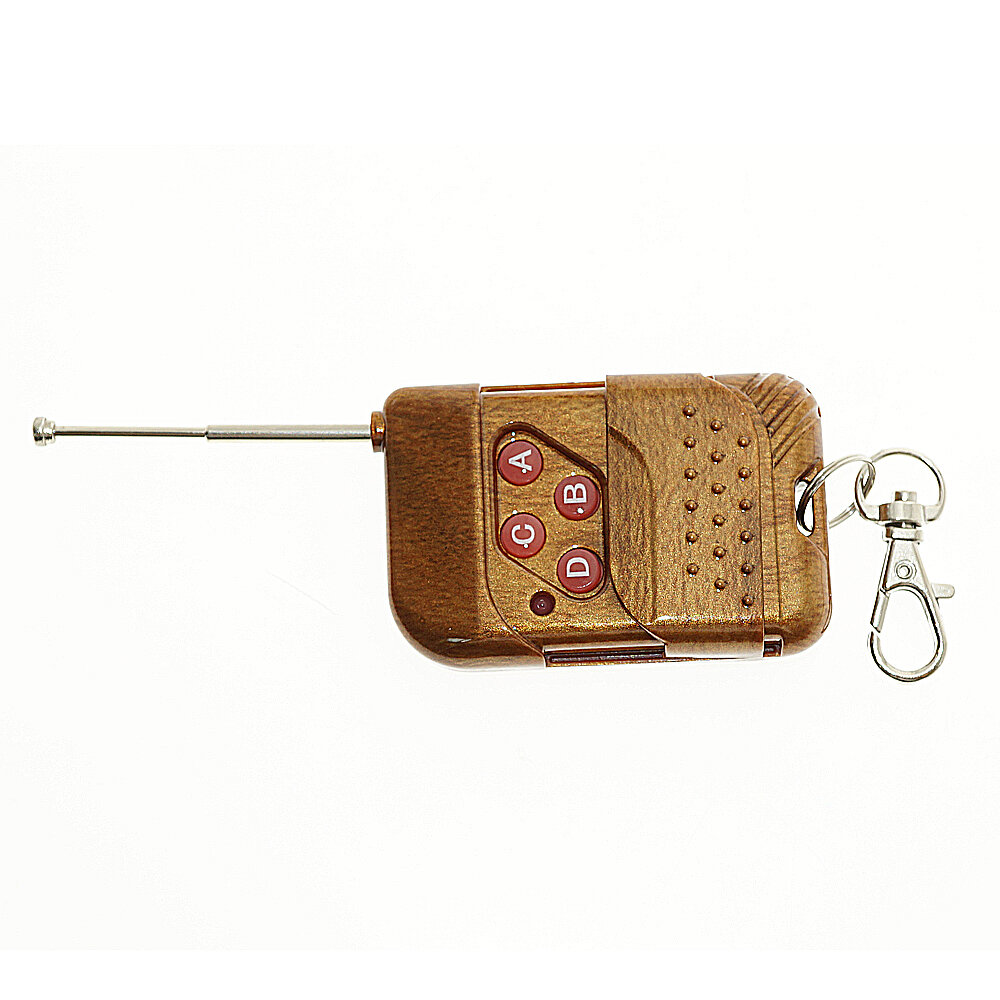

1. Remote Control

• Operating voltage: DC12V (27A / 12V battery a)
• Working Current: 10mA / 12V
• Radiation power: 10mw /12V
• Modulation: ASK (amplitude modulation)
• Transmission frequency: 315MHZ (SAW frequency stabilization)
• Transmission distance: 50-100M (no proof, the receiver sensitivity is negative 100dbm)
• Encoder Type: Fixed code

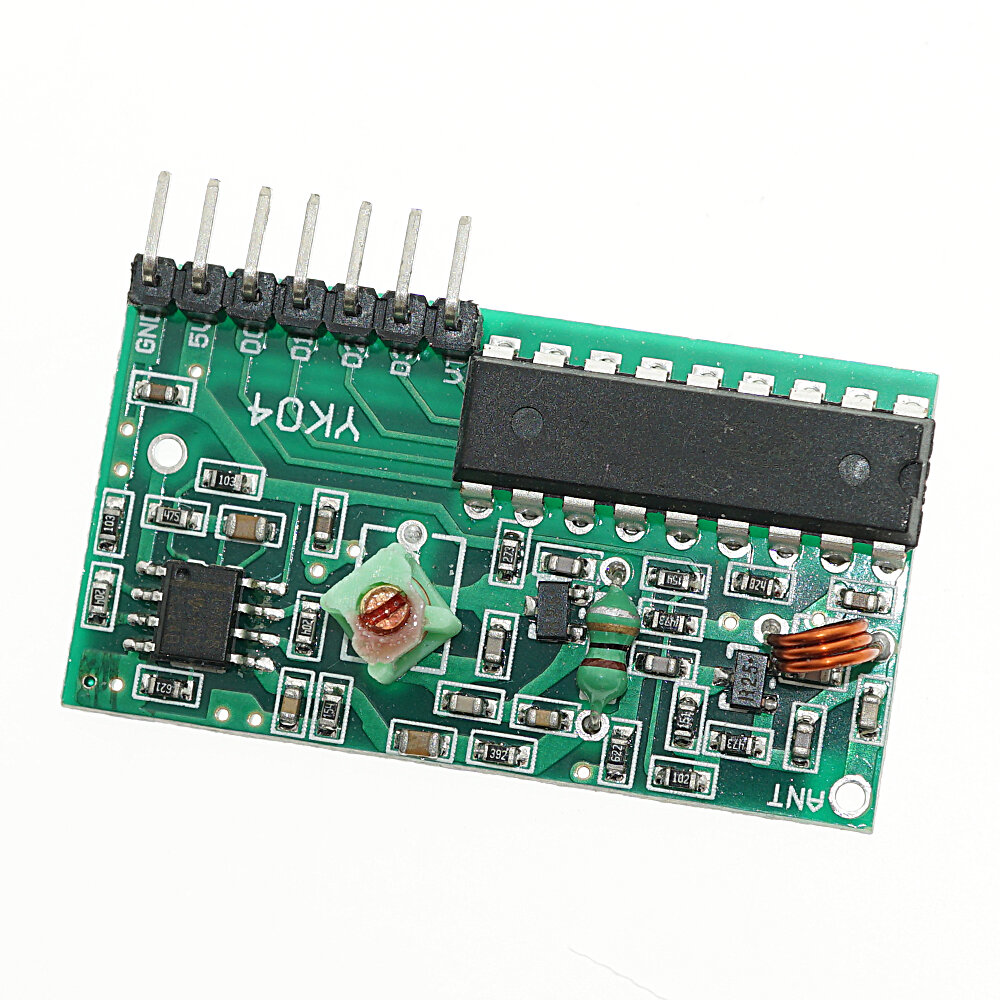

2. Decoding receiver board

• Working voltage DC5V
• Receiver sensitivity is -98db.
• Size: 41*22mm
• There are four buttons on the remote control, corresponding to the receiving board feet four data bits D0, D1, D2, D3. Press the button to transmit a signal, the corresponding data bit will output high.

Pin out:
