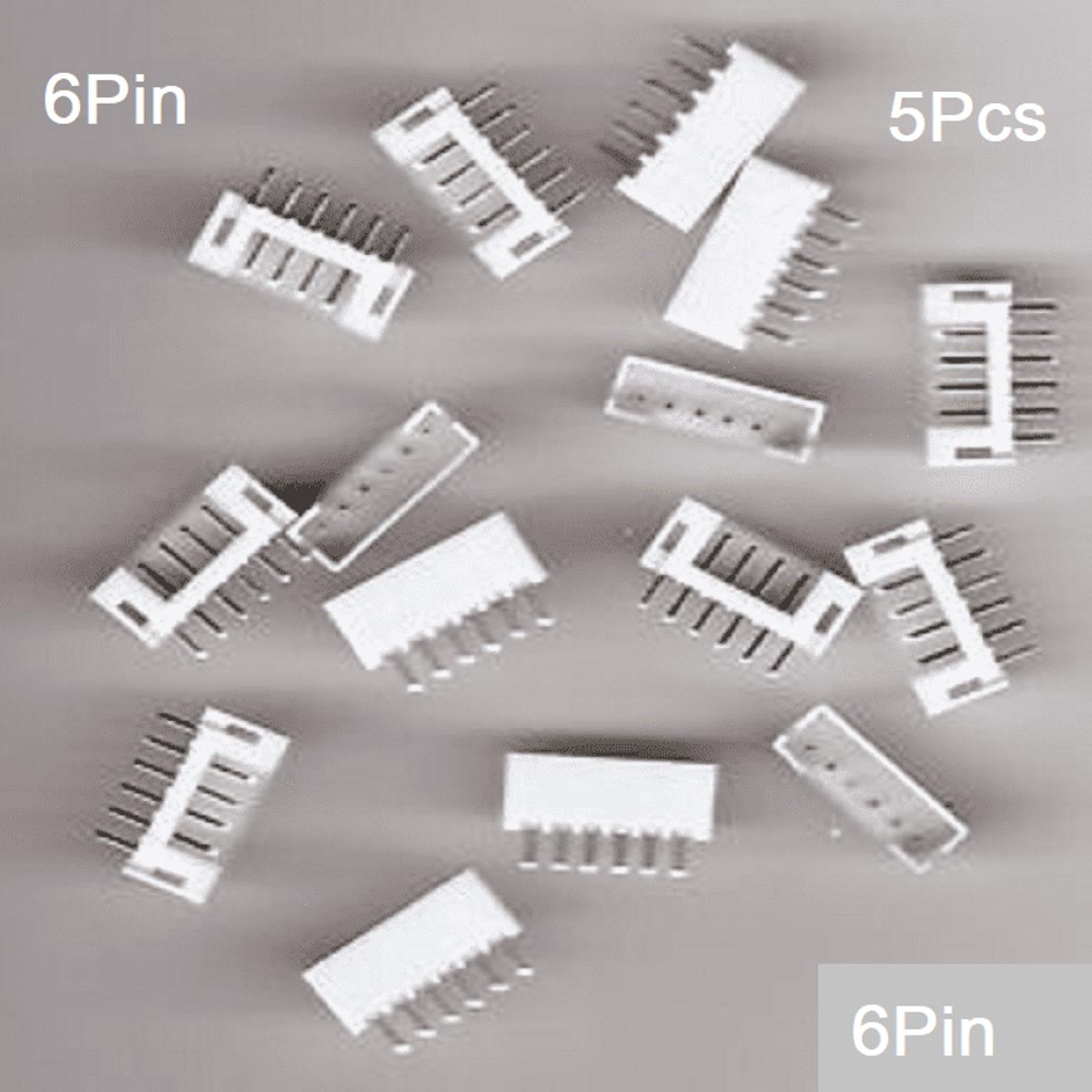

4Pcs- 6Pin MALE Header For FEAMALE Housing JST Male Header 6 Pin Leads 2.54mm Pitch Male Socket Connector For Female Cables DIY

Name: 4Pcs- 6Pin MALE Header For FEAMALE Housing JST Male Header 6 Pin Leads 2.54mm Pitch Male Socket Connector For Female Cables DIY
SKU: UDBD04818
Price: 59 BDT
Availability: InStock

Category: Building Materials

SKU: UDBD04818

Seller: Udvabony BD

Visa/Mastercard 10% Discount(T&C)

Nagad 10% instant Cashback(T&C)

Tk 50

Tk 59

15% OFF

0 review(s)

Application: Wire to Board
Series: PH Connector
Pitch: 2.0mm
Positions: 6
Gender: Male Header , Female Housing
PC Board Mounting Direction: Top Entry ( Straight )
Number of Rows: 1
Applicable wire: AWG#26
End of wire Material: Solder bare wire
Voltage rating: 100V DC/AC

Call For Order : 09613-800800

Description: PH2.0-6P 2.0mm 6Pin Male Connector

LED light controlling system, illuminator, speakers, monitors, household appliances, copiers, fax machines, medical equipment, electrothermal equipment, computers, electronic toys, batteries, circuit boards and other products.

Specifications:

Application: Wire to Board
Series: PH Connector
Pitch: 2.0mm
Positions: 6
Gender: Male Header , Female Housing
PC Board Mounting Direction: Top Entry ( Straight )
Number of Rows: 1
Applicable wire: AWG#26
End of wire Material: Solder bare wire
Voltage rating: 100V DC/AC
Current rating: 2.0A AC, DC
Withstand voltage: 800 VAC/minute (effective value)
Working Temperature: -25°C to +85°C
Insulation resistance: ≥ 1000M Ω
Contact resistance: ≤ 0.02 Ω
Applicable PC board thickness: 0.8 to 1.6mm

Application: Wire to Board
Series: PH Connector
Pitch: 2.0mm
Positions: 6
Gender: Male Header , Female Housing
PC Board Mounting Direction: Top Entry ( Straight )
Number of Rows: 1
Applicable wire: AWG#26
End of wire Material: Solder bare wire
Voltage rating: 100V DC/AC
