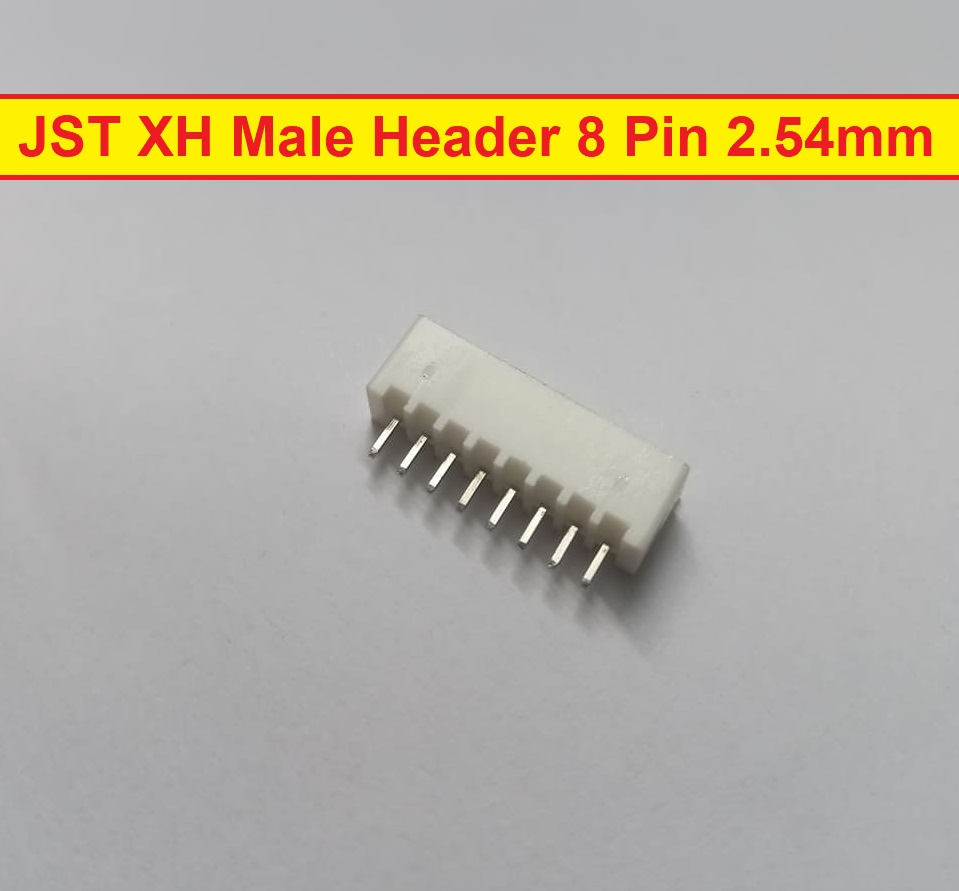

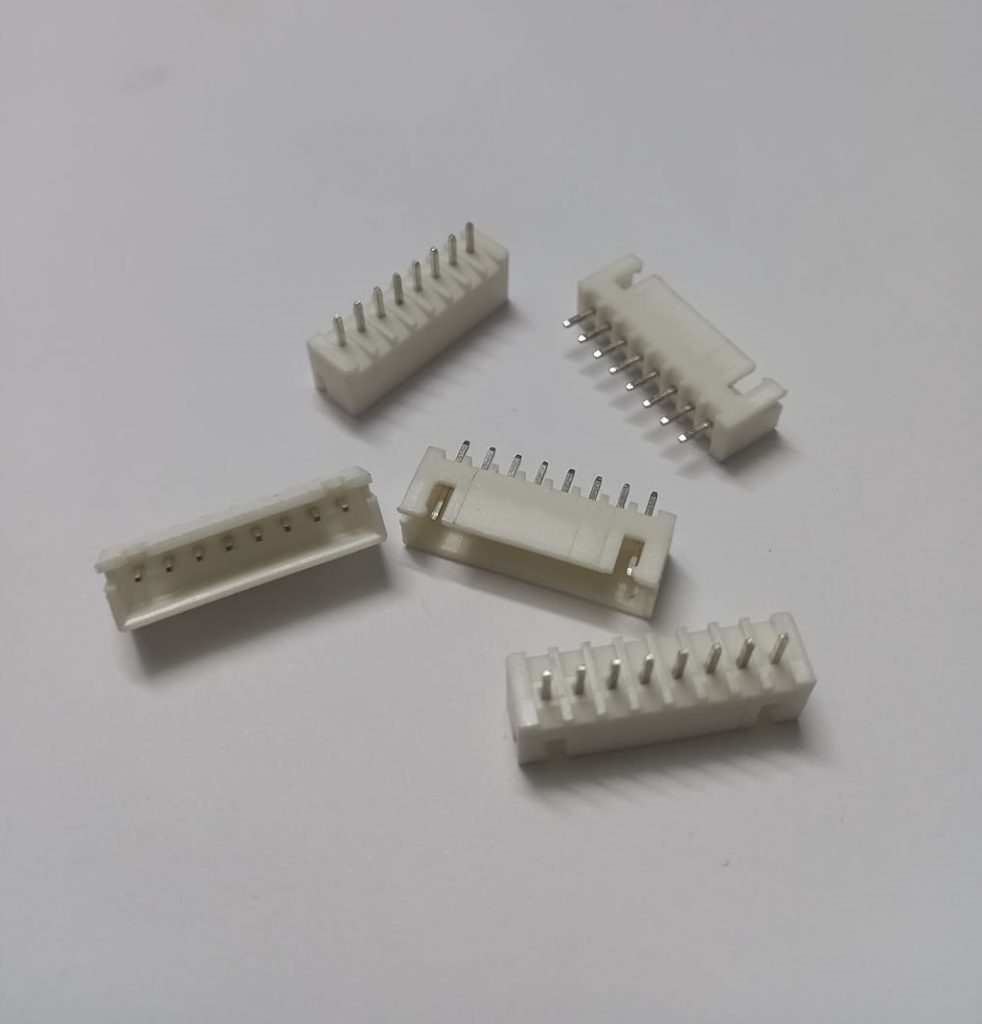

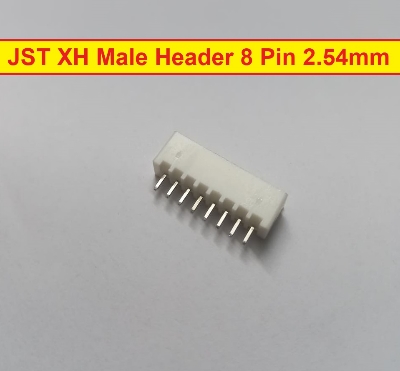

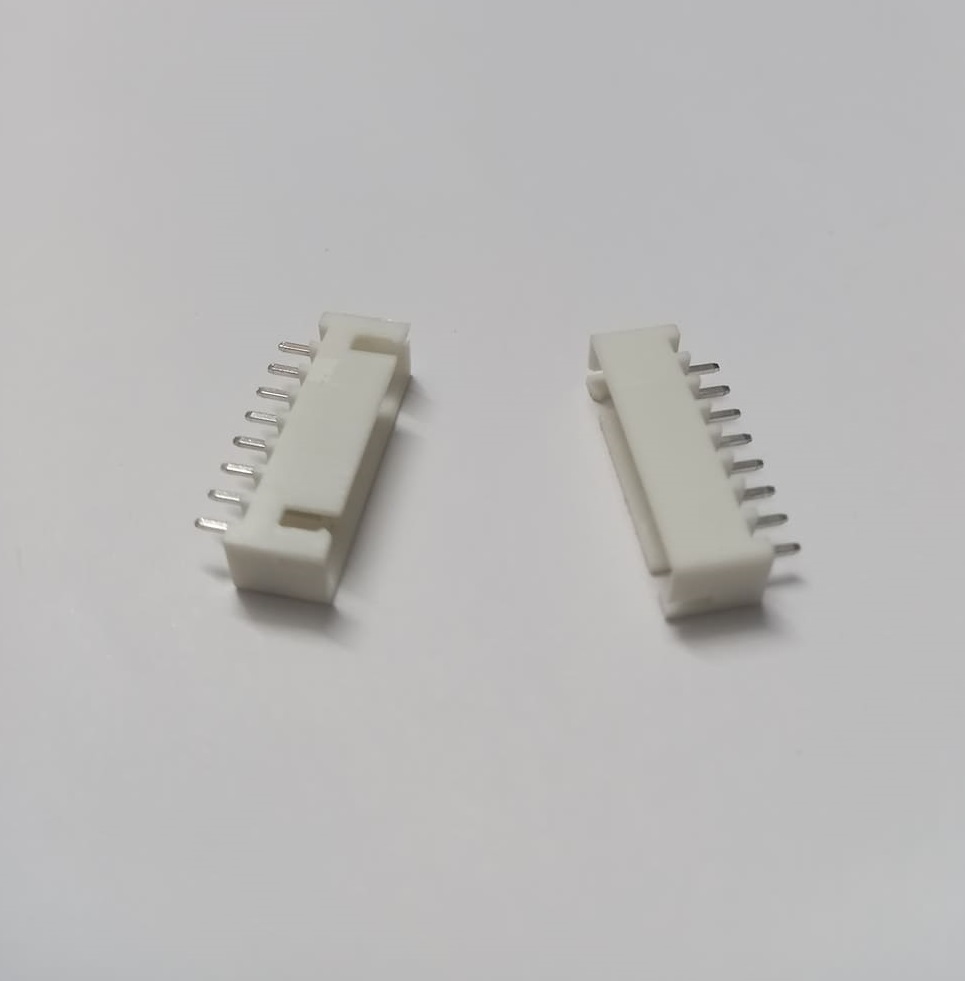

Description: Female Housing JST XH Male Header 8 Pin 2.54mm Pitch Male Connector

LED light controlling system, illuminator, speakers, monitors, household appliances, copiers, fax machines, medical equipment, electrothermal equipment, computers, electronic toys, batteries, circuit boards and other products.

Female Housing JST XH Male Header 8 Pin 2.54mm Pitch Male Connector For Electronics Projects PCB Mount Circuit Breadboard Friendly DIY

Specifications & Features:

Application: Wire to Board

Series: PH Connector

Pitch: 2.54mm

Positions: 8

Number of Rows: 1

Voltage rating:300V

Current rating: 2.0A AC, DC

Working Temperature: -25°C to +85°C

Insulation resistance: ≥ 1000M Ω

Contact resistance: ≤ 0.02 Ω

Applicable PC board thickness: 0.8 to 1.6mm

Gender: Male Header , Female Housing

PC Board Mounting Direction: Top Entry ( Straight )

Package Include:

• Application: Wire to Board
• Series: PH Connector
• Pitch: 2.54mm
• Positions: 8
• Number of Rows: 1
• Voltage rating:300V
• Current rating: 2.0A AC, DC
• Working Temperature: -25°C to +85°C
