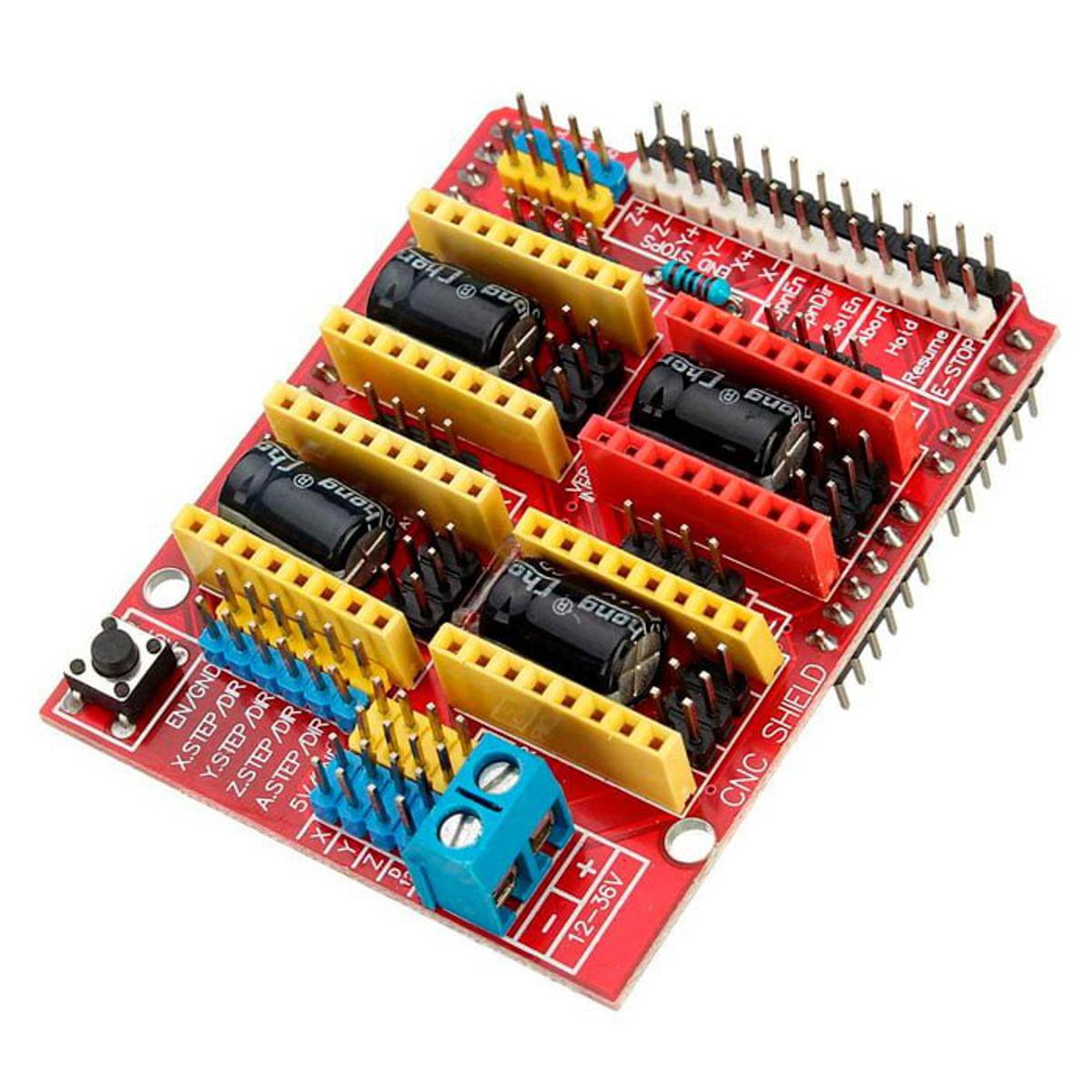

Description: Arduino Compatible CNC Shield V3 With 4 Pcs A4988 Stepper Motor Driver

This expansion board, as drive expansion board, can be used for engraving machines and 3D printers. It totally has four slots and can drive 4 A4988 stepper motors, and each stepper motor only needs two IO ports. That is, 6 IO ports can be well managed three stepper motors. A4988 is a complete micro-stepping motor driver with built-in translator for easy operation.

Features:

• Latest CNC shield V3 expansion board: each stepper motor needs only 2 IO ports.
• A4988 driver module: suitable for driving 8V ~ 35V stepper motor, five different step modes.
• 4-Axis support(X, Y, Z, A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13).
• Jumpers to set the Micro-Stepping for the stepper drivers.
• A4988 driver expansion board can be used for engraving machines and 3D printers.

Specifications of CNC Shield Board & A4988 Stepper Motor Driver CNC Shield Board:

• PWM Spindle and direction pins
• Coolant enable
• Uses removable A4988 compatible stepper drivers
• Compact design
• Stepper Motors can be connected with 4 pin connectors or soldered in place
• Runs on DC 12-36V (At the moment only the DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
• Please note that this is an unassembled kit and Basic soldering skills are needed
• PCB Size: 68 x52mm

A4988 Stepper Motor Driver:

• Low RDS (On) Output
• Automatic current decay mode detection / selection
• Mix with slow current decay modes
• Synchronous rectification for low power dissipation
• Internal UVLO
• Crossover-current protection
• 3.3V and 5V compatible logic supply
• Thermal shutdown circuitry
• Ground fault protection
• Load short-circuit protection
• Five selectable step modes: full, 1/2, 1/4, 1/8 and 1/16
• Warning: Connecting or disconnecting a stepper motor while the driver is powered can destroy the driver.
• PCB Size: 20 * 15mm / 0.8 * 0.6in
• Weight (1pc): 2g

Package Included:

• 1 x CNC Shield V3 Board
• 4 x A4988 Stepper Motor Driver
