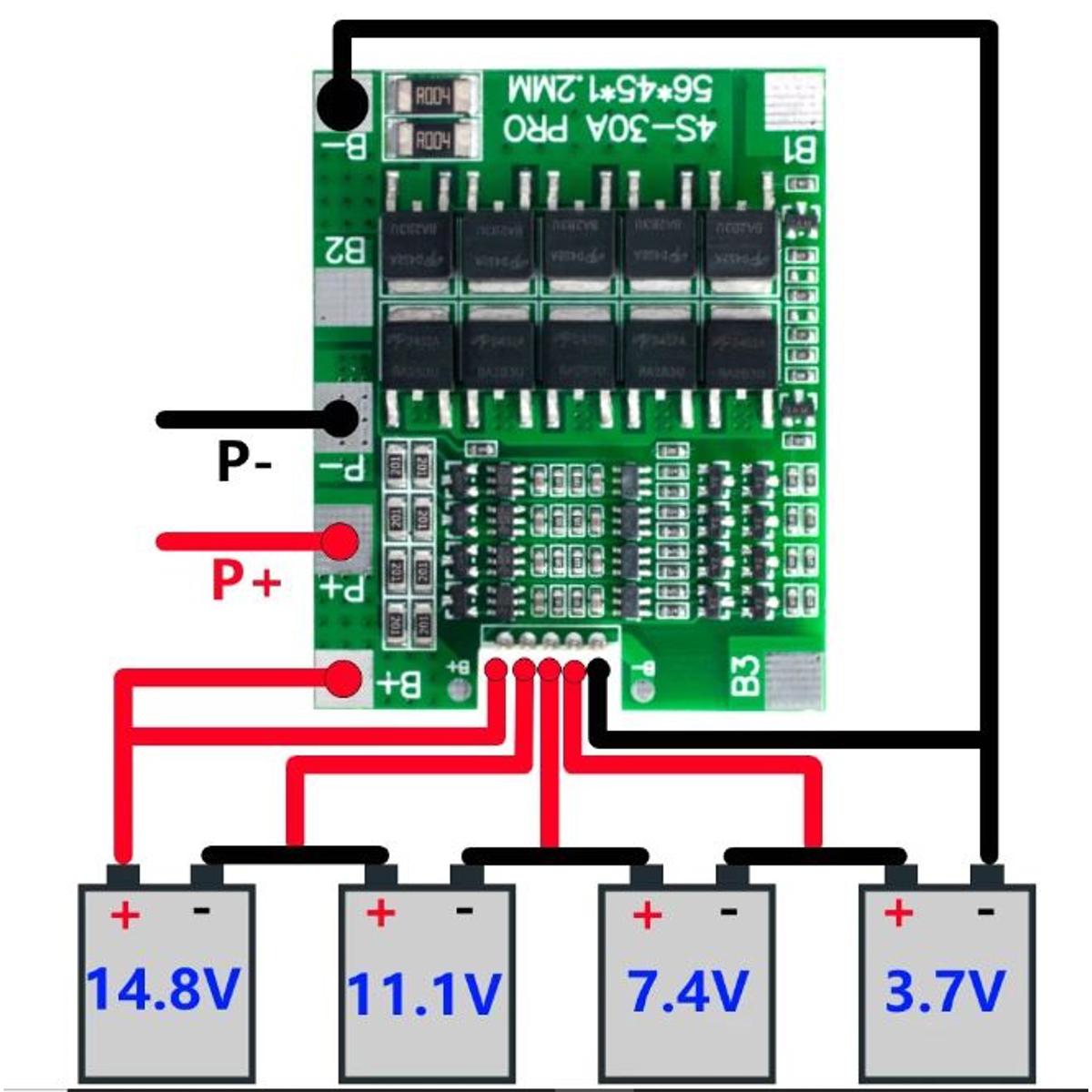

4S 30A PRO 14.8V Li-ion Lithium 18650 Battery BMS Packs PCB Protection Board Balance Integrated Circuits Board

Category:
SKU: RDE02136
Seller: READY ELECTRONICS
App Coupon & 10% Extra Savings ( T&C)
Tk 550
0 review(s)
  • Over charge detection voltage: 4.28+ 0.05 V
  • Over charging voltage: 4.08 ± 0.1
  • Over discharge voltage: 2.55±0.08
  • Over charge detection delay time 0.1s
  • Temperature range：-30/+80℃
  • Balanced current: 60±5 mA
  • Working current: 30A
  • Over current: 75±5A
  • Short circuit protection function: there is, disconnect the load can be self recovery.
  • Size:56*45*3mm
  • Main function:
  • Over charge protection, over discharge protection function, short circuit protection function, over current protection function, balance.

Call For Order : 09613-800800
4S 30A PRO 14.8V Li-ion Lithium 18650 Battery BMS Packs PCB Protection Board Balance Integrated Circuits Board





  • Over charge detection voltage: 4.28+ 0.05 V
  • Over charging voltage: 4.08 ± 0.1
  • Over discharge voltage: 2.55±0.08
  • Over charge detection delay time 0.1s
  • Temperature range：-30/+80℃
  • Balanced current: 60±5 mA
  • Working current: 30A
  • Over current: 75±5A
  • Short circuit protection function: there is, disconnect the load can be self recovery.
  • Size:56*45*3mm
  • Main function:
  • Over charge protection, over discharge protection function, short circuit protection function, over current protection function, balance.
