4S Bms Battery Protection Board 4S 10A 14.8V 16.8V 18650 Aa Aaa Lipo Li-Ion Lithium Battery Bms Chargers Protection Module Electronics Circuitry & Parts - Power Bank Circuit

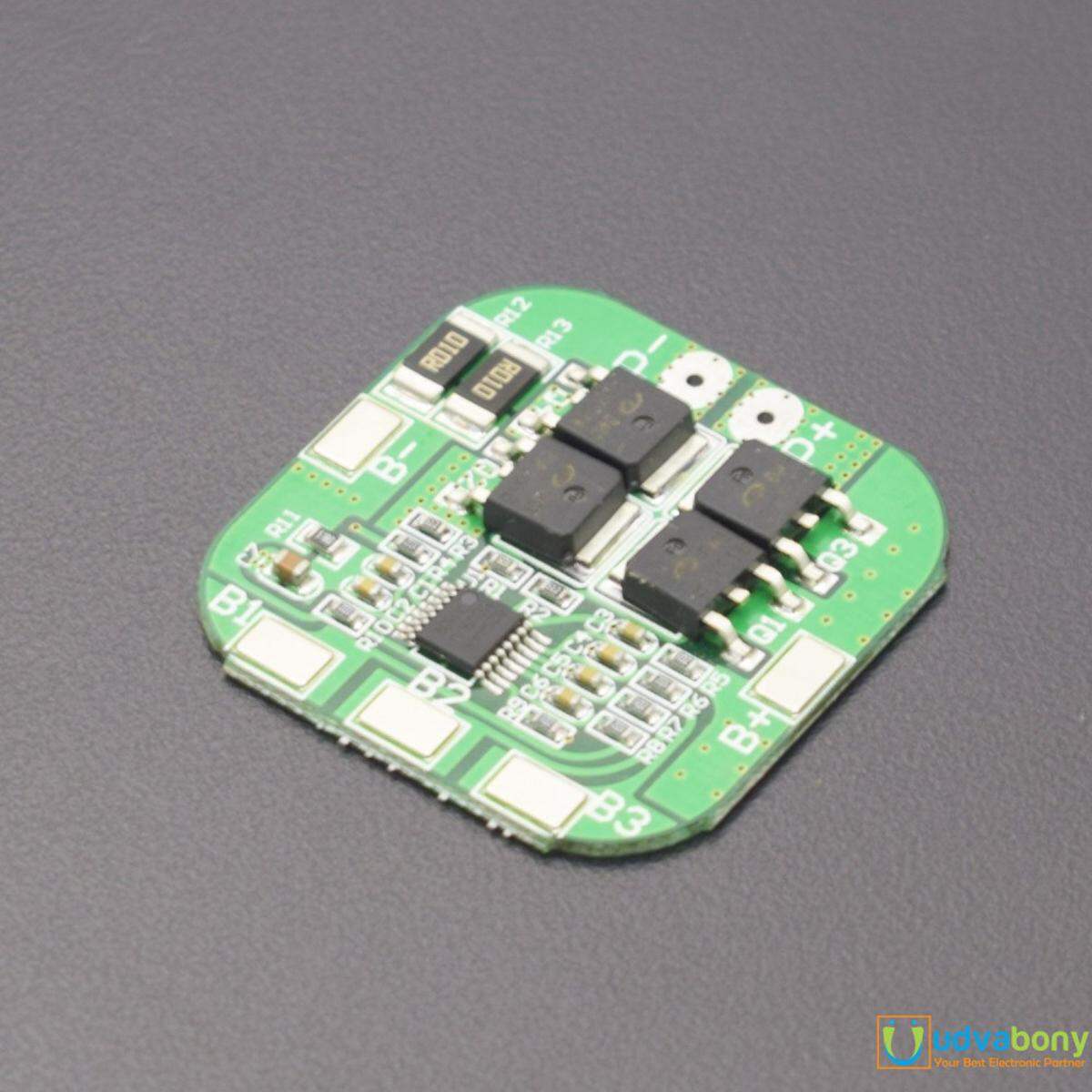

Description: BMS PCM PCB Module For Charging & Protecting Li-Ion Cells 4S 10A 14.8V 16.8V

Features:

• Short circuit protection.
• Overcharge protection.
• Over discharge protection.
• Overcurrent protection.
• Can be used for various 3.7V lithium cells.
• Compact size and lightweight.
• Ensure package security.

Technical data:

• Size: 35x35x3mm
• overcharge detection voltage: 4.25-4.35V ± 0.05V
• Over-discharge voltage detection: 2.5V-3.0V ± 0.05V
• Working current: 5A
• Maximum current: 10A (overcurrent protection)
• working temperature: -40 ~ 50 degrees
• storage temperature: -40 ~ 80 degree
• quiescent current:30uA
• internal resistance: below100mΩ
• lifetime:50,000 hours

Package Include:

• 1 x BMS PCM PCB Module For Charging & Protecting Li-Ion Cells 4S 6V 10A For 18650
