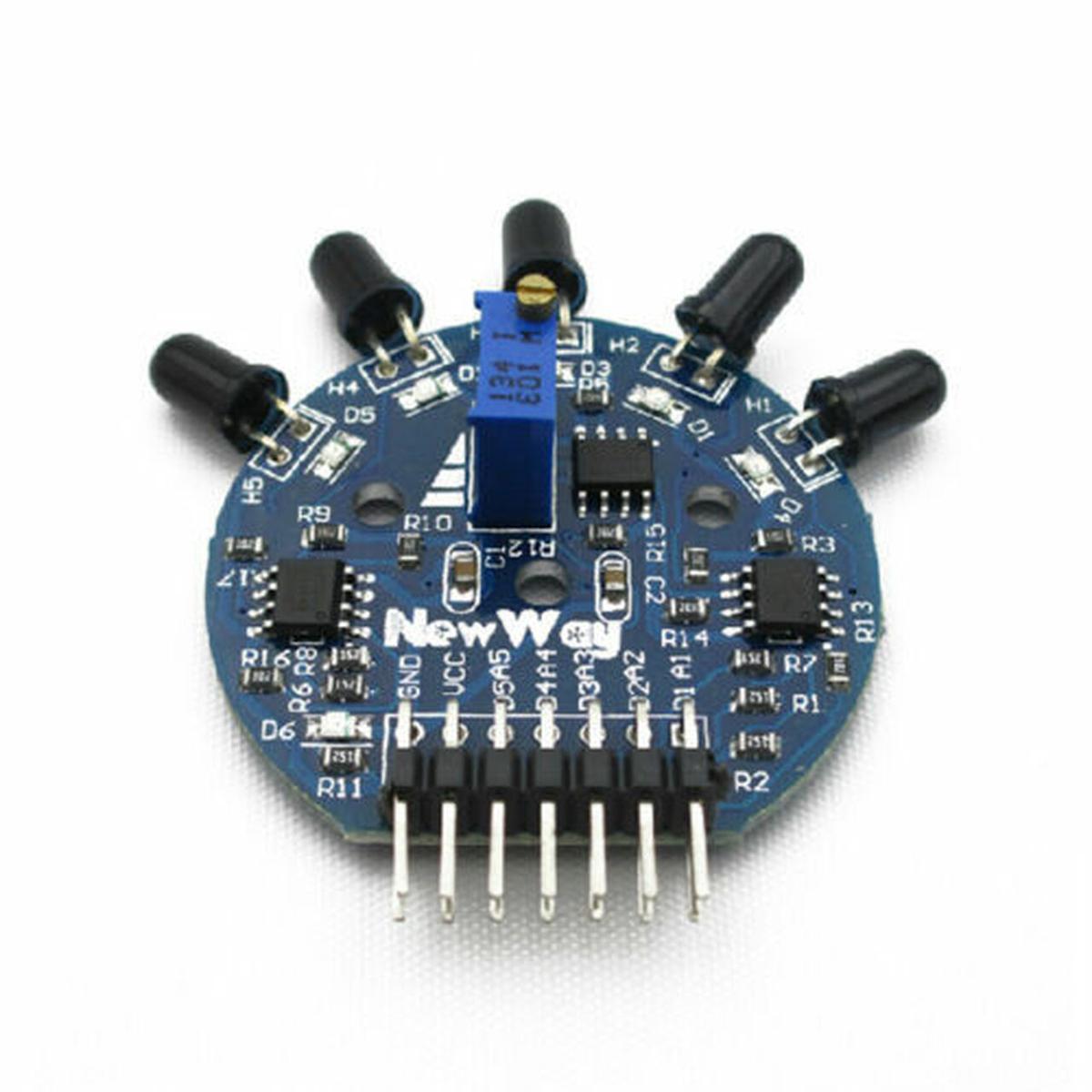

Description: 5 Way Flame Sensor Module – Digital and Analog Output – For Arduino

Use this module to detect a flame in large range (>120 degree). Perfect if you want your robot to detect if there is any fire around. It detects fire with the 5 flame sensors which are arranged in 120 degree detection range, with each sensor providing a 30 degree detection range. This module outputs an analogue signal, which can provide a very precise reading on each sensor, and also a digital signal which is very easy to use, you can adjust the digital output sensitivity by the on-board potentiometer. The 5 LED indicators are helpful in debugging and testing.

• Five channel flame sensor design, wide range of detection (the detection range of the ordinary single flame sensor is probably about 30°, as the distance increases, the range is gradually reduced, the detection range of the product is greater than 120°)
• Able to output a digital signal (high and low), easy to use
• Able to output an analog signal (voltage signal), the measurement signal can be more accurately, the occasions for high precision
• All five outputs status indicator, so whether debug or bring great convenience in the practical application of
• Digital output detection distance adjustable.The analog output sensitivity adjustable, more flexible design
• Using 1% resistor design, signal output is more accurate, suitable for the needs of high-precision measurement occasions
• Onboard 3 M3 mounting holes for easy installation
• 3.3V-9V power supply, and is compatible with most of the SCM system
• The patch devices used in all SMT process auto matic welding, military quality reliable

Specification:

• Voltage:3.3V – 9V
• Analogue & Digital outputs
• On-board potentiometer and indicators
• Detecting range: >120 degree

Features:

• Analog /Digital outputs
• On-board potentiometer for adjusting sensitivity
• Wide angle detection
• LED indicators

Pin Definition:

• GND: Ground
• VCC: Input voltage (3 : 9v)
• A1, A2, A3, A4, A5: Analog output
• D1, D2, D3, D4, D5: Digital output

Working principle:

The item is able to detect the flame band respectively in the range of 700-1100 nm, short-wave near-infrared (SW-NIR), and is output via an electric signal (voltage signal).

Application of occasions:

All occasions flame detection needs

Use Case:

Fighting robot

Fire alarm

Documents:

flame_schematic

Package Includes:

1 x5-Channel Flame Sensor Module.
