5 Pin Rotary Switch 20mm Rotary Encoder Switch D-Shaft Digital Potentiometer 20 Pulse Mechanical Rotary Encoder Switch Flat Shaft Rotary Selector Switch 5Pin Leads

Category: Building Materials
SKU: UDBD05488
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 77
Tk 91
Tk 91
15% OFF
0 review(s)
  • Rated voltage: DC 5V
  • Rotation Angle: 360 degrees (no stop point)
  • Rotation Life: 30000+200 Cycles
  • Contact Resistance: ≤100mΩ
  • Insulation Resistance: ≥100MΩ
  • Oscillation: ≤10mS pressing
  • Operating Temperature: -30~80°C
  • Storage Temperature: -40~85°C

Call For Order : 09613-800800

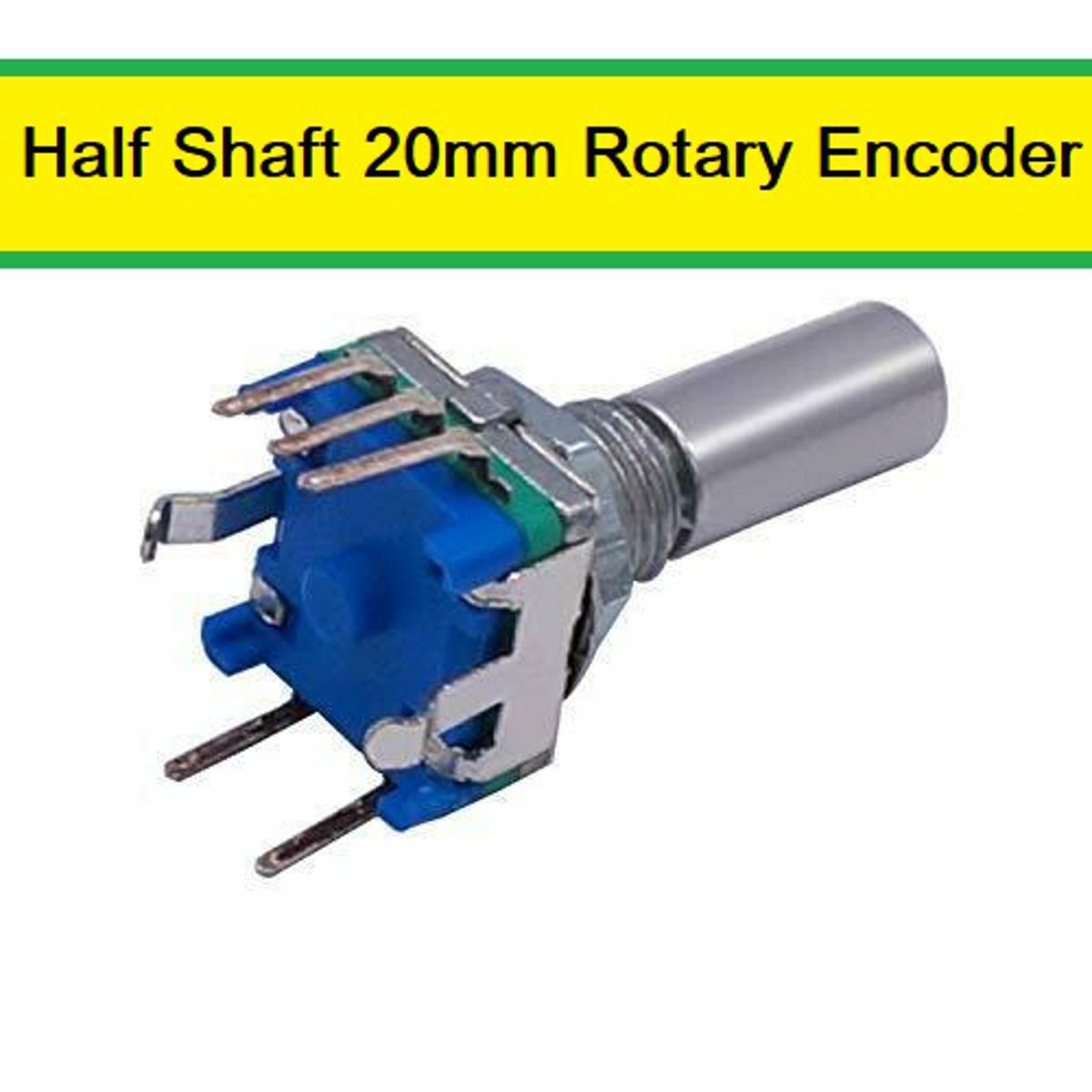

Description: Half Shaft 20mm Rotary Encoder Code Switch Digital Potentiometer 20 Pulse Mechanical Rotary Encoder Flat Shaft Through Hole

Half Shaft 20mm Rotary Encoder Code Switch Digital Potentiometer 20 Pulse Mechanical Rotary Encoder Flat Shaft Through Hole

Specifications:

  • Rated voltage: DC 5V
  • Rotation Angle: 360 degrees (no stop point)
  • Rotation Life: 30000+200 Cycles
  • Contact Resistance: ≤100mΩ
  • Insulation Resistance: ≥100MΩ
  • Oscillation: ≤10mS pressing
  • Operating Temperature: -30~80°C
  • Storage Temperature: -40~85°C

Features:

  • Rotary encoder with switch function (on press down).
  • Shaft diameter = 6mm
  • Detents on the encoder: tactile feedback as you turn the knob
  • Detent-less: smooth turning with no feedback
  • Number of detent: 20
  • Number of pulse: 20 PPR
  • Travel of push-on switch:0.5mm
  • Max./min. operating current (Resistive load): 10mA/1mA
  • The rotary encoder has switch function.
  • Made of high quality material, anti-corrosion, wear resisting and durable.
  • Sensitive response, stable performance, long service life.
  • ple structure, easy to install and use.
  • Widely used in automotive electronics, multimedia audio, instentation, household appliances, smart home, medical equipment, etc






  • Rated voltage: DC 5V
  • Rotation Angle: 360 degrees (no stop point)
  • Rotation Life: 30000+200 Cycles
  • Contact Resistance: ≤100mΩ
  • Insulation Resistance: ≥100MΩ
  • Oscillation: ≤10mS pressing
  • Operating Temperature: -30~80°C
  • Storage Temperature: -40~85°C
