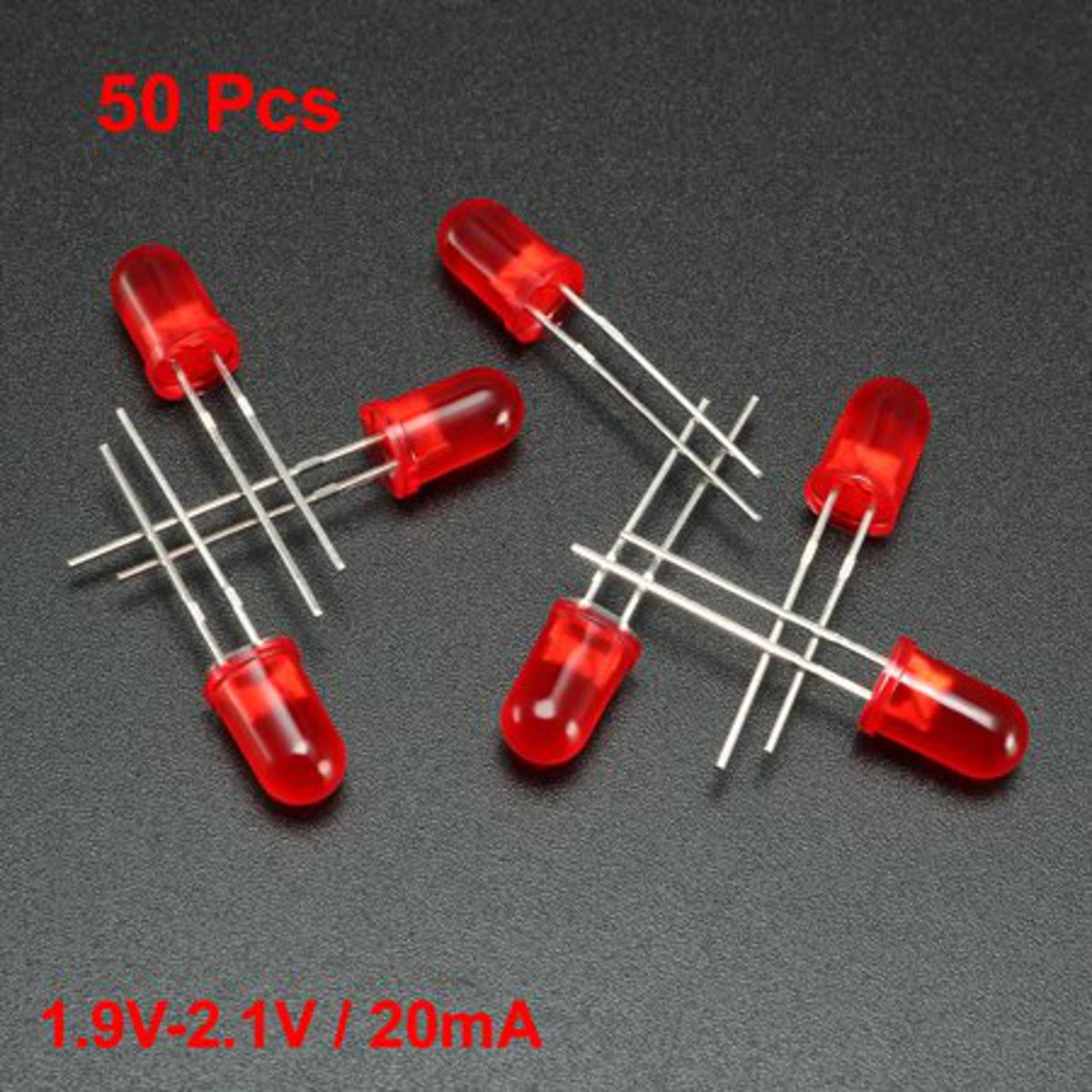

Description: 5mm LED Red

A light-emitting diode (LED) is a two-lead semiconductor light source. It is a p–n junction diode that emits light when activated. When a suitable voltage is applied to the leads, electrons are able to recombine with electron holes within the device, releasing energy in the form of photons. This effect is called electroencephalogram, and the color of the light (corresponding to the energy of the photon) is determined by the energy band gap of the semiconductor. LEDs are typically small (less than 1 mm2) and integrated optical components may be used to shape the radiation pattern.

This is a very basic 5mm LED with a Blue lens. It has a typical forward voltage of 2.0V and a rated forward current of 20mA.

• 1.8-2.2VDC forward drop
• Max current: 20mA
• Suggested using current: 16-18mA
• Luminous Intensity: 150-200mcd

Features:

• Long Life
• Excellent Brightness Output
• Low Current Consumption
• Extremely Long Life
• Economically Priced
• Standard Type

Parameter Conditions:

• Forward voltage: max 3.0, IF=20mA
• Reverse breakdown voltage: min 5.0, IR=100 uA
• Luminous intensity: min 40mcd, Typ 70mcd, IF=20mA
• Peak wavelength: Typ 570nm, IF=20ma
• Spectral line halt width: Typ 20nm, IF=20ma

Absolute Maximum Ratings:

• Power dissipation: @ Ta=25ТА C – 90mW
• Forward current: DC (IF) 30mA
• Reverse voltage: 5V
• Operating and storage temp: -55-100ТА C
• Lead soldering temp: (1/16″ from body) 260ТА C for 5 sec

• 1.8-2.2VDC forward drop
• Max current: 20mA
• Suggested using current: 16-18mA
• Luminous Intensity: 150-200mcd
