Description: 5Pair- IR Transmitter & Receiver LED Sensor 5mm 940nm IR LED Light Infrared Transmitter Receiver TX RX LED Sensor Light 5mm

IR LED emits light in infrared region, which is invisible to human eyes. It is a high-intensity diode packed in water clear plastic package. It makes a pair with IR photodiode.

IR Transmitter Specification:

• IR EMITTER, 940NM, 5MM, THROUGH HOLE
• Peak Wavelength:940nm
• Forward Current If(AV):100mA
• Rise Time:800ns
• Fall Time tf:800ns
• Radiant Intensity:45mW/Sr
• Viewing Angle:22°
• Forward Voltage VF Max:1.35V
• Operating Temperature Min:-40°C
• Operating Temperature Max:85°C
• Diode Case Style:T-1 3/4 (5mm)
• No. of Pins:2
• Packaging: Each
• MSL:–
• Angle of Half Sensitivity ±:22°
• Current If @ Vf:100mA
• External Diameter:5.8mm
• External Length / Height:8.7mm
• LED / Lamp Size:5mm
• Lead Diameter:0.5mm
• Lead Length:25.7mm
• Lead Spacing:2.54mm
• Operating Temperature Range:-40°C to +85°C
• PIV Max:5V
• Peak Forward Current:200mA
• Peak Pulse Current Ippm:1.5mA
• Radiant Intensity Max:150mW/Sr
• Radiant Intensity Min:30mW/Sr
• Radiometric Power:35mW
• Reverse Leakage Current Max:10µA
• Storage Temperature Max:100°C
• Storage Temperature Min:-55°C
• Voltage Vf Typ:1.35V
• Wavelength Typ:950nm

IR Receiver Specification:

• Lens: 5mm Diameter / Black / Round
• Emitting Color: IR 940nm Receiver
• Luminous Intensity: No
• Receiving Angle 90 Degree
• Forward Voltage / Current: | 20mA
• Polarity: Anode (Longer Part) | Cathode (Shorter Part)
• Emitted Colour : Infrared.
• Lens Color : Black Clear.
• Forward Voltage (V) : 1.2-1.4V.
• Forward Current (mA): 100mA.
• Wavelength (nm): 940nm

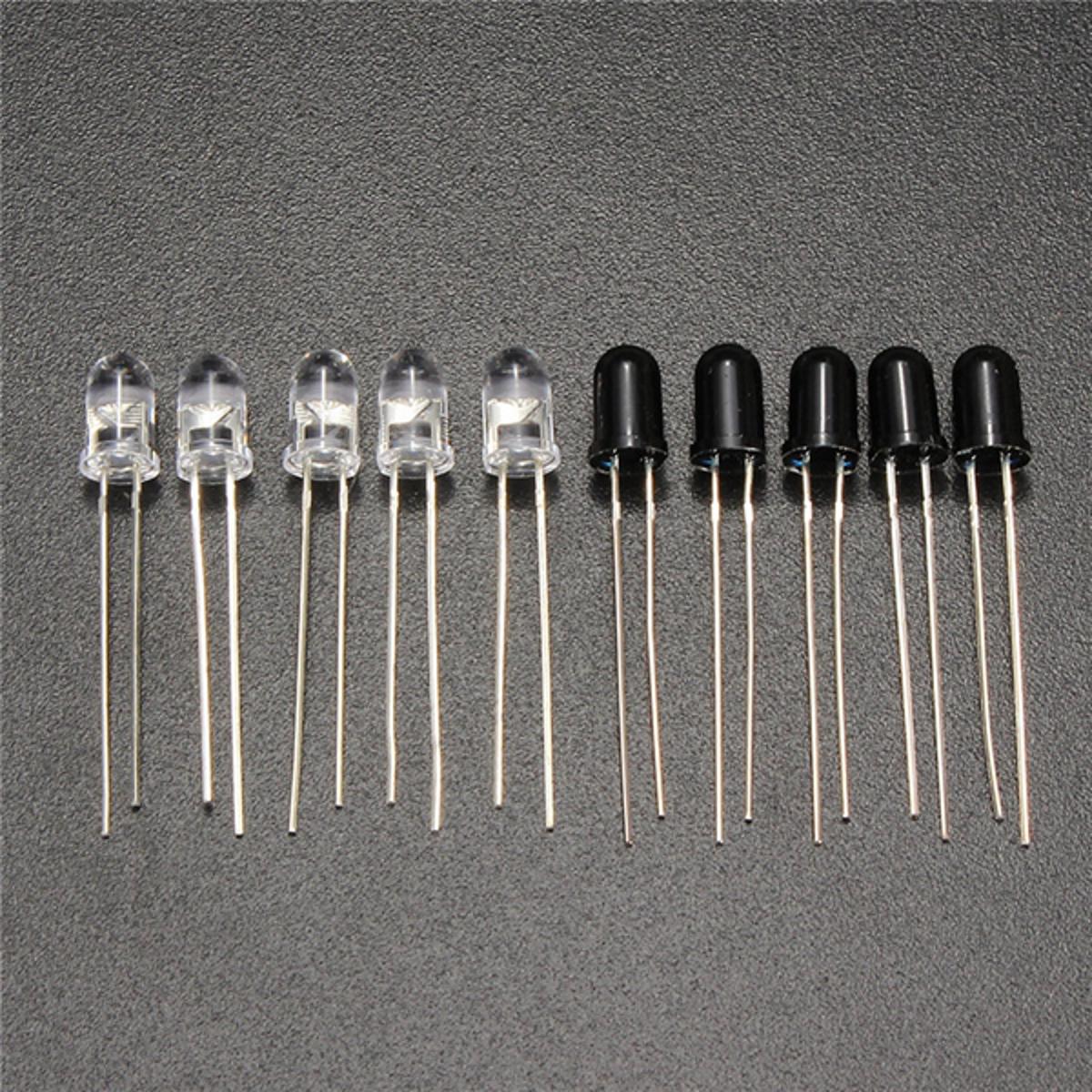

Package Include:

• 5 Pcs IR Transmitter
• 5 Pcs IR Receiver

• IR Transmitter Specification:

• IR EMITTER, 940NM, 5MM, THROUGH HOLE
•  Peak Wavelength: 940nm
•  Forward Current If(AV): 100mA
•  Rise Time: 800ns
•  Fall Time tf: 800ns
•  Radiant Intensity: 45mW/Sr
•  Viewing Angle: 22°
•  Forward Voltage VF Max: 1.35V
•  Operating Temperature Min: -40°C
•  Operating Temperature Max: 85°C
•  Diode Case Style: T-1 3/4 (5mm)
•  No. of Pins: 2
•  Packaging: Each
•  MSL: –
•  Angle of Half Sensitivity ±: 22°
•  Current If @ Vf: 100mA
•  External Diameter: 5.8mm
•  External Length / Height: 8.7mm
•  LED / Lamp Size: 5mm
•  Lead Diameter: 0.5mm
•  Lead Length: 25.7mm
•  Lead Spacing: 2.54mm
•  Operating Temperature Range: -40°C to +85°C
•  PIV Max: 5V
•  Peak Forward Current: 200mA
•  Peak Pulse Current Ippm: 1.5mA
•  Radiant Intensity Max: 150mW/Sr
•  Radiant Intensity Min: 30mW/Sr
•  Radiometric Power: 35mW
•  Reverse Leakage Current Max: 10µA
•  Storage Temperature Max: 100°C
•  Storage Temperature Min: -55°C
•  Voltage Vf Typ: 1.35V
•  Wavelength Typ: 950nm

• IR Receiver Specification:

• Lens: 5mm Diameter / Black / Round
• Emitting Color: IR 940nm Receiver
• Luminous Intensity: No
• Receiving Angle 90 Degree
• Forward Voltage / Current: 20mA
• Polarity: Anode (Longer Part) Cathode (Shorter Part)
• Emitted Colour : Infrared.
• Lens Color : Black Clear.
• Forward Voltage (V) : 1.2-1.4V.
• Forward Current (mA): 100mA.
• Wavelength (nm): 940nm
