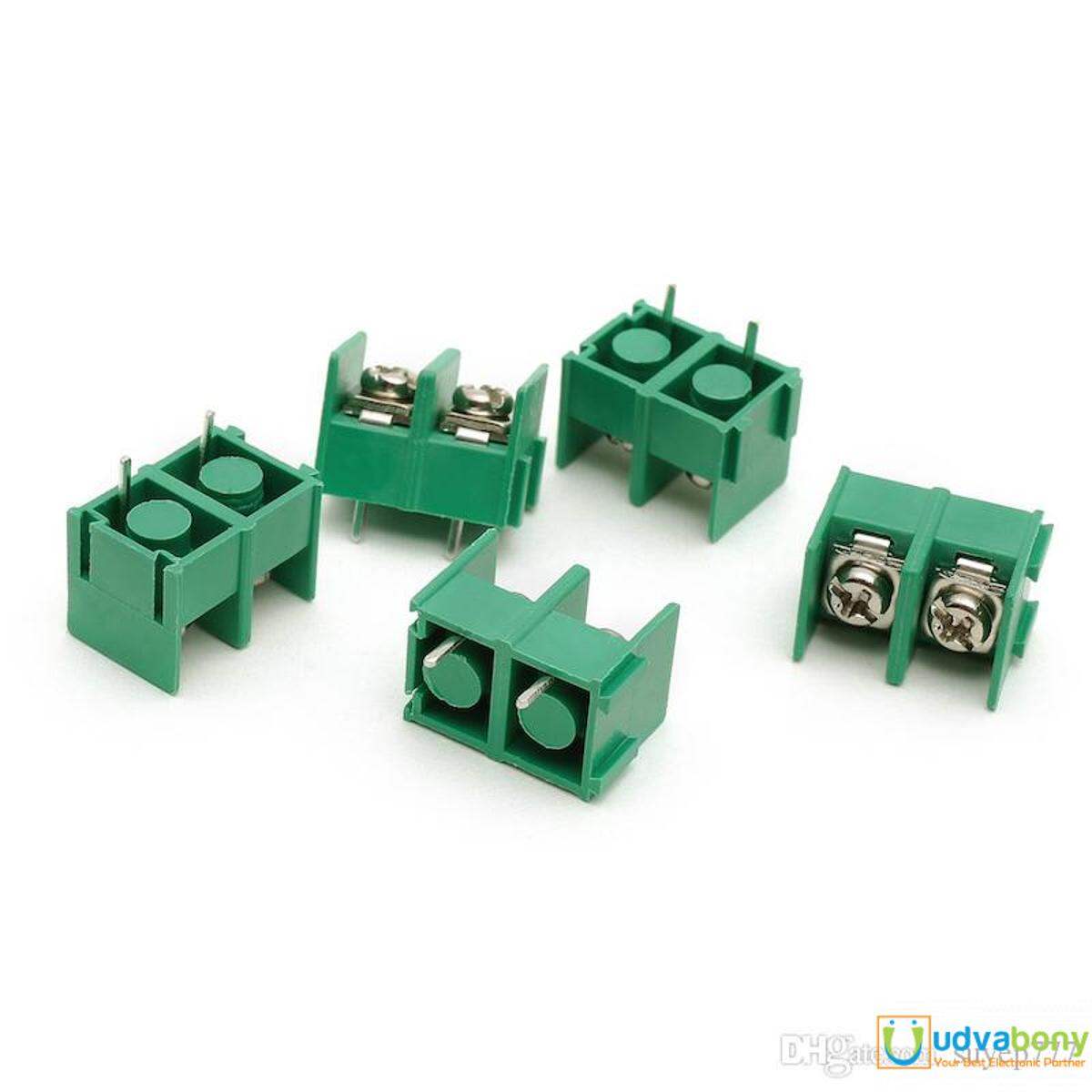

5Pcs- 2Pin 8.5mm GREEN Color 2 Pin Plug-In PCB Mount Straight Screws Terminal Block Connector 8.5mm Pitch Socket Strips For Arduino Cables Connectors Electronics Circuitry & Parts - Black

Description: Green Color 2Pin Plug-In PCB Mount Straight Screw Terminal Block Connector 8.5mm Pitch Socket Strips For Arduino

2Pin 8.5mm GREEN Color 2 Pin Plug-In PCB Mount Straight Screws Terminal Block Connector 8.5mm Pitch Socket Strips For Arduino Cables Connectors Electronics Circuitry & Parts

2 Pin 8.5mm Pitch Plug-in Screw Terminal Block Connector is a type of electrical connector, frequently used to connect wires to the PCB. The connector has a screw in each pin to fasten the wire securely. It has tin-plated brass for pin header and has nickel-plated brass contacts.

The connector is made of PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant and has good insulation properties.

As a kind of connector, the terminal block is an important module in the electric industry. It is convenient to

Specifications:

• Connector: PCB Terminal Block
• Termination: Screw
• Color: Green nd plastic
• Mounting Type: Through Hole
• Number of rows 1.
• Pitch: 8. 5mm
• Poles: 2P
• Screw: M3/ Steel/ Ni plated
• Terminal: Brass/ Tin plated
• Housing: PA66. UL94V-0
• Rated voltage: 300V
• Rated current: 20A
• Withstanding voltage: AC2000V/1 Min
• Wire range: 22-12 AWG
• Temperature range: -40℃ – +105℃
• MAX. Torque: 8 Kg.cm

Features:

• 100% Brand new and high quality
• Compact, lightweight, and durable
• Captive screws
• Guided pin alignment
• Double interlock mechanism for increased strength
• Pin header: Tin plated
• Contacts: Nickel plated
• Strong, compact, lightweight.
