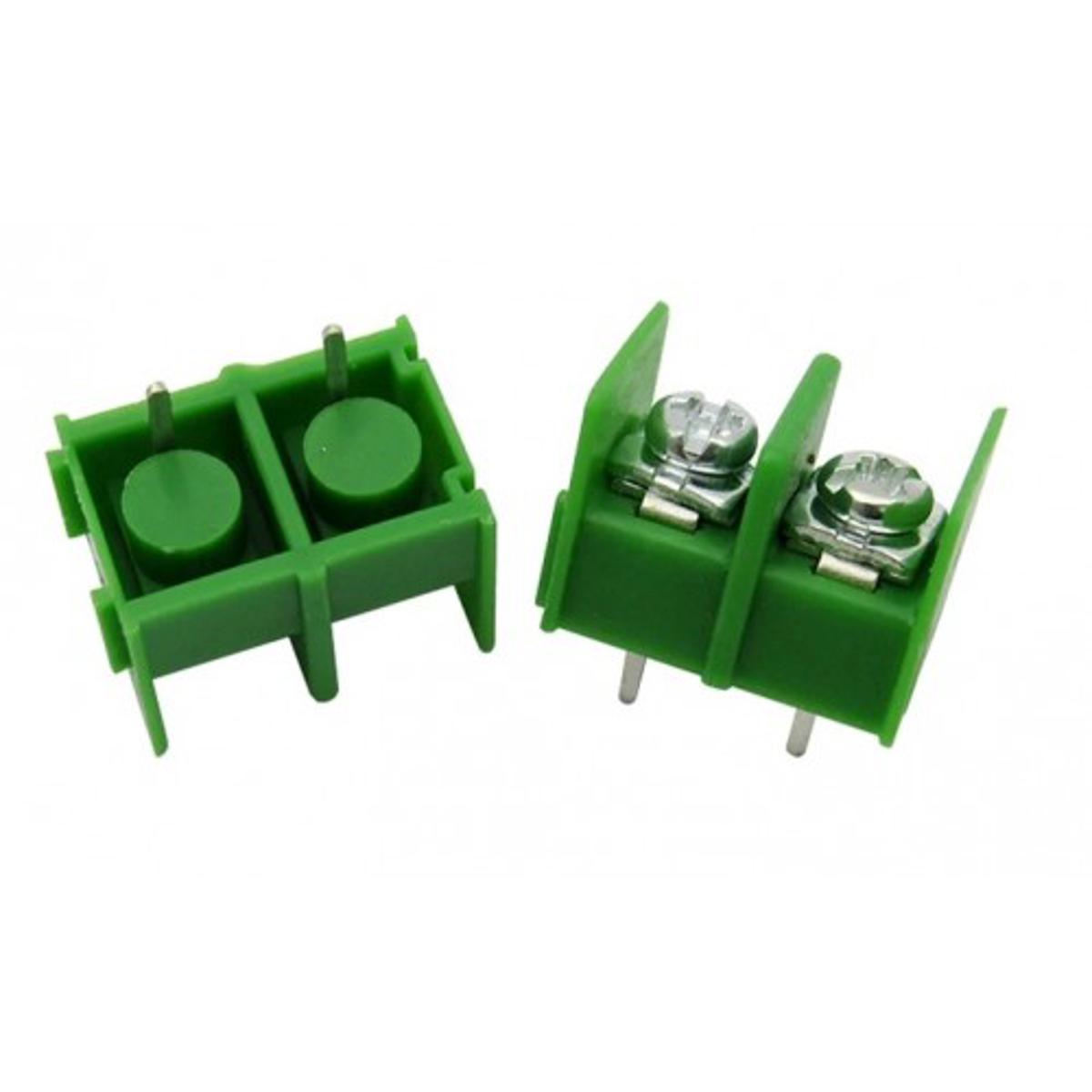

Picture of 5Pcs- 2Pin 8.5mm GREEN Color 2 Pin Plug-In PCB Mount Straight Screws Terminal Block Connector 8.5mm Pitch Socket Strips For Arduino Cables Connectors Electronics Circuitry & Parts
Picture of 5Pcs- 2Pin 8.5mm GREEN Color 2 Pin Plug-In PCB Mount Straight Screws Terminal Block Connector 8.5mm Pitch Socket Strips For Arduino Cables Connectors Electronics Circuitry & Parts

5Pcs- 2Pin 8.5mm GREEN Color 2 Pin Plug-In PCB Mount Straight Screws Terminal Block Connector 8.5mm Pitch Socket Strips For Arduino Cables Connectors Electronics Circuitry & Parts

Category: Building Materials
SKU: UDBD04107
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 88
Tk 104
Tk 104
15% OFF
0 review(s)
  • Pitch: 8. 5mm
  • Poles: 2P
  • Screw: M3/ Steel/ Ni plated
  • Terminal: Brass/ Tin plated
  • Housing: PA66. UL94V-0
  • CAPABILITY
  • Rated voltage: 300V
  • Rated current: 20A
  • Withstanding voltage: AC2000V/1 Min
  • Wire range: 22-12 AWG

Call For Order : 09613-800800

Description: 8.5mm 2 Pin Screw Terminal Block

  • Pitch: 8. 5mm
  • Poles: 2P
  • Screw: M3/ Steel/ Ni plated
  • Terminal: Brass/ Tin plated
  • Housing: PA66. UL94V-0
  • CAPABILITY
  • Rated voltage: 300V
  • Rated current: 20A
  • Withstanding voltage: AC2000V/1 Min
  • Wire range: 22-12 AWG
  • Temperature range: -40℃ – +105℃
  • MAX. Torque: 8 Kg.cm

Specification:

  • Model number: 5800-8.5-2P-Copper
  • Type: Splice
  • Color: Green
  • Materail: Copper
  • Poles: 2P
  • Rated voltage: 300 V
  • Rated current: 20 A
  • Wire range: 22-12 AWG






  • Pitch: 8. 5mm
  • Poles: 2P
  • Screw: M3/ Steel/ Ni plated
  • Terminal: Brass/ Tin plated
  • Housing: PA66. UL94V-0
  • CAPABILITY
  • Rated voltage: 300V
  • Rated current: 20A
  • Withstanding voltage: AC2000V/1 Min
  • Wire range: 22-12 AWG
