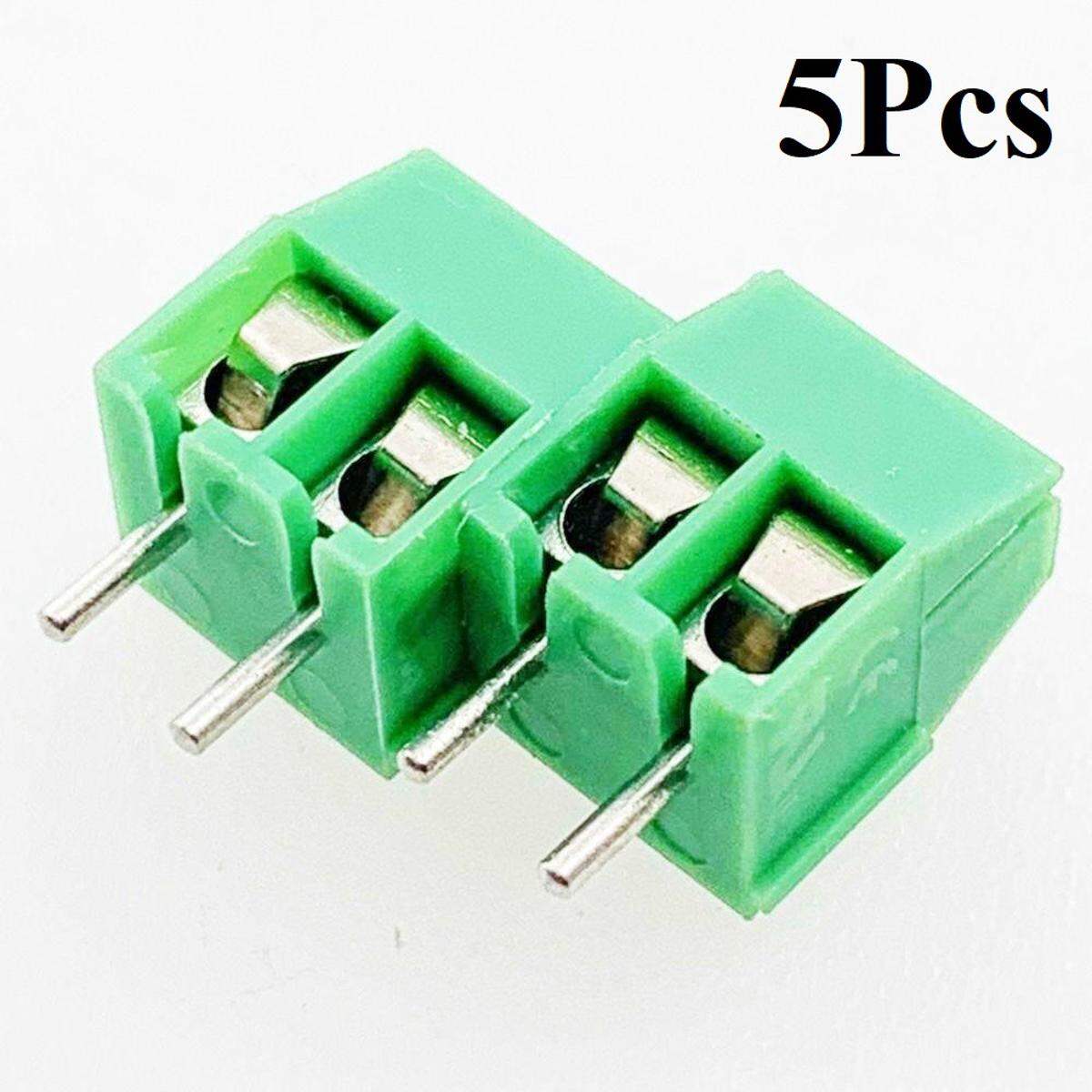

5Pcs- 2Pin GREEN Color KF301-2P 2 Pin Leads PCB Mount Straight Screws Terminal Block Connector 5.08mm Pitch Socket For Cables Connectors - 270317577

Description: 2Pin GREEN Color KF301-2P 2 Pin Plug-In PCB Mount Straight Screws Terminal Block

2Pin GREEN Color KF301-2P 2 Pin Plug-In PCB Mount Straight Screws Terminal Block Connector 5.08mm Pitch Socket Strips For Electronics Cables Connectors Terminals

2 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector is a type of electrical connector, frequently used to connect wires to the PCB. The connector has a screw in each pin to fasten the wire securely. It has tin-plated brass for pin header and has nickel-plated brass contacts.

The connector is made of PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant and has good insulation properties.

As a kind of connector, the terminal block is an important module in the electric industry. It is convenient to connect wires.

Specifications:

• Connector: PCB Terminal Block
• Termination: Screw
• Color: GREEN
• Material: Metal and plastic
• Mounting Type: Through Hole
• Number of rows 1.
• No. of Contacts: 2
• Allowed Wire Size : 24-16AWG
• Voltage: 220V AC
• Operating Current :16A
• Pin Spacing : 5.08mm
• Contact resistance: 20mΩ
• Insulation resistance: 5000MΩ/1000V
• Withstanding voltage: AC1500V/1Min
• Temp. Range:-30ºC~+120ºC
• Max Soldering: +250ºC for 5 Sec
• Torque: 0.5Nm
• Length: 10mm
• Width : 7.5mm
• Height : 14mm
• Weight: 4 gm approx. each

Features:

• Color: Blue
• Pin header: Brass, Tin plated
• Material: Screws: M2.5 steel Zinc plated
• Pin header: Tin plated brass.
• Contacts: Nickel plated brass.
• Strong, compact, lightweight.
• Heat resistant.
• Pitch: 5.08mm
• Poles: 2p
