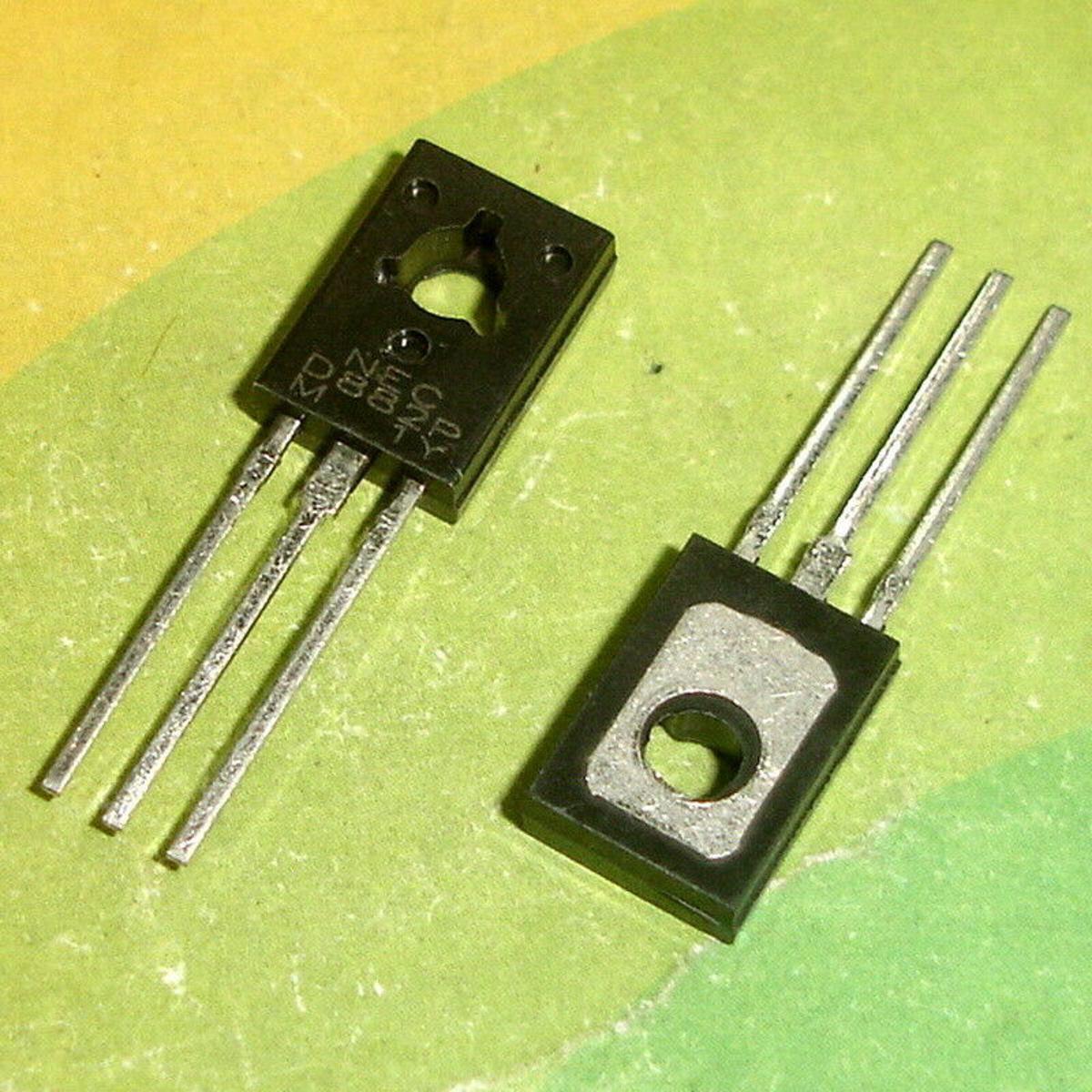

Picture of 5Pcs- 2SD882 2S-D882 D882 882 NPN Transistor 40V 3A 10W 3 Pin Leads Power Transistor TO-126 NPN Transistor
Picture of 5Pcs- 2SD882 2S-D882 D882 882 NPN Transistor 40V 3A 10W 3 Pin Leads Power Transistor TO-126 NPN Transistor

5Pcs- 2SD882 2S-D882 D882 882 NPN Transistor 40V 3A 10W 3 Pin Leads Power Transistor TO-126 NPN Transistor

Category: Building Materials
SKU: UDBD04198
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 55
Tk 65
Tk 65
15% OFF
0 review(s)
  • Type Designator: 2SD882
  • Material of transistor: Si
  • Polarity: NPN
  • Maximum collector power dissipation (Pc), W: 10
  • Maximum collector-base voltage Ucb, V: 40
  • Maximum collector-emitter voltage Uce, V: 30
  • Maximum emitter-base voltage Ueb, V: 5
  • Maximum collector current Ic max, A: 3
  • Maksimalna temperatura (Tj), °C: 150
  • Transition frequency (ft), MHz: 90
  • Collector capacitance (Cc), pF: 45
  • Forward current transfer ratio (hFE), min: 60

Call For Order : 09613-800800

Description: 2SD882 NPN Power Transistor

2SD882 Transistor 10W-40V-3A & TO-126

Specification:

  • Type Designator: 2SD882
  • Material of transistor: Si
  • Polarity: NPN
  • Maximum collector power dissipation (Pc), W: 10
  • Maximum collector-base voltage |Ucb|, V: 40
  • Maximum collector-emitter voltage |Uce|, V: 30
  • Maximum emitter-base voltage |Ueb|, V: 5
  • Maximum collector current |Ic max|, A: 3
  • Maksimalna temperatura (Tj), °C: 150
  • Transition frequency (ft), MHz: 90
  • Collector capacitance (Cc), pF: 45
  • Forward current transfer ratio (hFE), min: 60
  • Noise Figure, dB: –
  • Package of 2SD882 transistor: TO126






  • Type Designator: 2SD882
  • Material of transistor: Si
  • Polarity: NPN
  • Maximum collector power dissipation (Pc), W: 10
  • Maximum collector-base voltage Ucb, V: 40
  • Maximum collector-emitter voltage Uce, V: 30
  • Maximum emitter-base voltage Ueb, V: 5
  • Maximum collector current Ic max, A: 3
  • Maksimalna temperatura (Tj), °C: 150
  • Transition frequency (ft), MHz: 90
  • Collector capacitance (Cc), pF: 45
  • Forward current transfer ratio (hFE), min: 60
