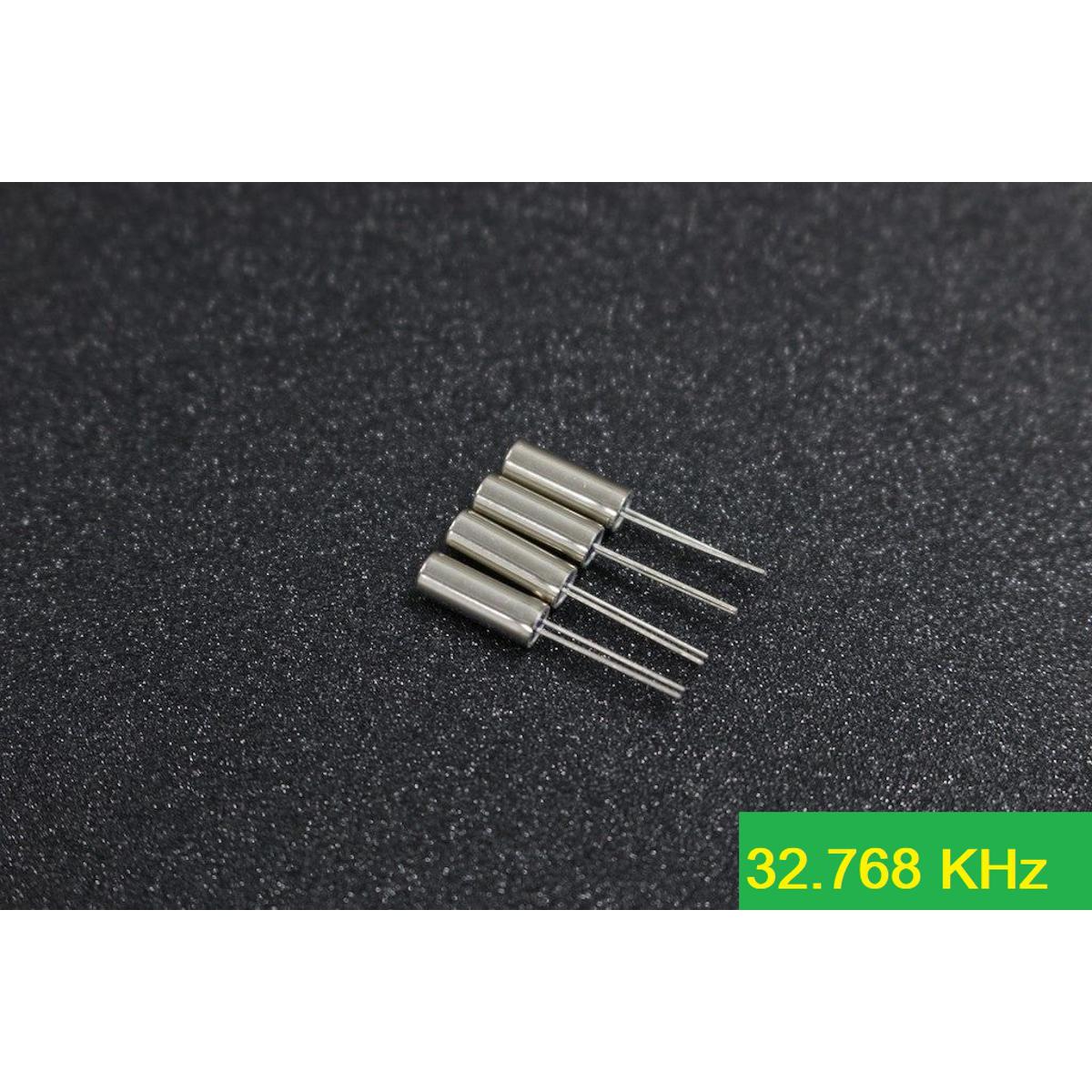

Picture of 5Pcs- 32.768KHz RTC CRYSTAL Oscillators 32.768KHZ Cylindrical Real Time Clock Passive Quartz Crystal Glass Resonator Oscillators Frequency Generator 2 Pin Leads Terminals
Picture of 5Pcs- 32.768KHz RTC CRYSTAL Oscillators 32.768KHZ Cylindrical Real Time Clock Passive Quartz Crystal Glass Resonator Oscillators Frequency Generator 2 Pin Leads Terminals

5Pcs- 32.768KHz RTC CRYSTAL Oscillators 32.768KHZ Cylindrical Real Time Clock Passive Quartz Crystal Glass Resonator Oscillators Frequency Generator 2 Pin Leads Terminals

Category: Building Materials
SKU: UDBD04366
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 72
Tk 85
Tk 85
15% OFF
0 review(s)
  • Equivalent Series Resistance: 35 kOhm ~ 40 kOhm
  • Frequency: 32.768kHz
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 8pF ~ 12.5pF
  • Mounting Type: Through Hole
  • Operating Mode: Fundamental
  • Operating Temperature: -10°C ~ 60°C
  • Package: Cylindrical Can, Radial

Call For Order : 09613-800800

Descriptions: 32.768 KHz Crystal For RTC

This is a32.768KHZCrystal. This is a low cost crystal oscillator withoscillation frequency of32.768KHZ. Crystal are normally required to provideclock pulses to your microcontroller or other IC’s which require external clocksource.An oscillator crystal has two electrically conductive plates, with a slice ortuning fork of quartz crystal sandwiched between them. The crystal oscillatorcircuit sustains oscillation by taking a voltage signal from the quartzresonator, amplifying it, and feeding it back to the resonator. Quartz has thefurther advantage that its elastic constants and its size change in such a waythat the frequency dependence on temperature can be very low.

Standard frequency crystals – use these crystals to provide a clock input to your microprocessor or RTC modules. They can also be used as a clock source in communication equipments, measuring instruments, microprocessors and other time management applications. Their low power consumption makes these crystals ideal for portable equipment.

Features:

  • Tight tolerance
  • Long term stability
  • Excellent resistance and environmental characteristics

Specifications:

  • Equivalent Series Resistance:35 kOhm ~ 40 kOhm
  • Frequency:32.768kHz
  • Frequency Tolerance:±20ppm
  • Load Capacitance:8pF ~ 12.5pF
  • Mounting Type:Through Hole
  • Operating Mode:Fundamental
  • Operating Temperature:-10°C ~ 60°C
  • Package:Cylindrical Can, Radial

Applications:

  • Real time clock
  • Measuring instruments.
  • Clock source for communication or A/V equipment.






  • Equivalent Series Resistance: 35 kOhm ~ 40 kOhm
  • Frequency: 32.768kHz
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 8pF ~ 12.5pF
  • Mounting Type: Through Hole
  • Operating Mode: Fundamental
  • Operating Temperature: -10°C ~ 60°C
  • Package: Cylindrical Can, Radial
