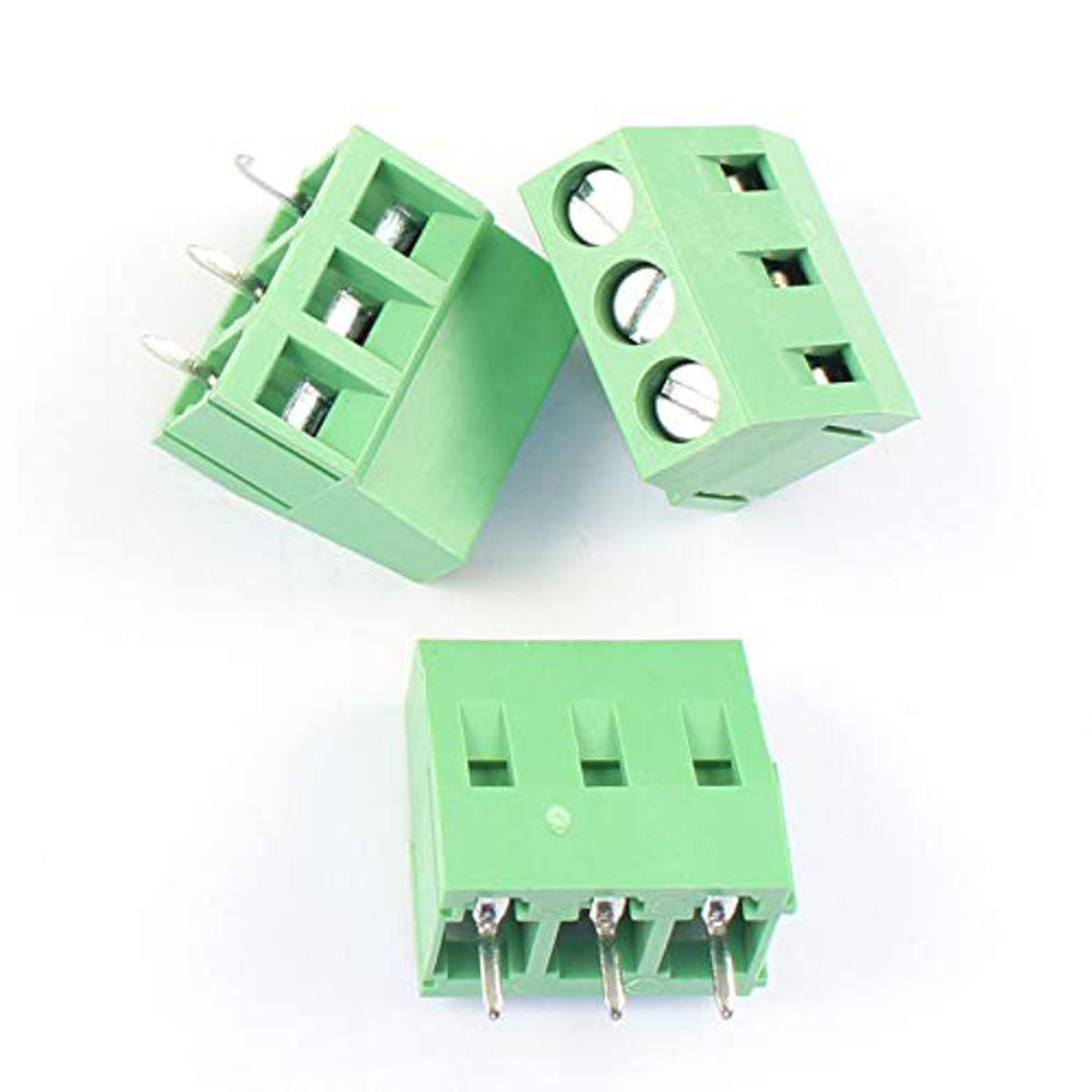

Description: 3 Poles 5.08mm PCB Universal Screw Terminal

• Product Name: PCB Terminal Block;
• Power Supply: 300V 10A.
• Pole number: 3P;
• pin count: 3
• pin pitch: 5.08mm;
• total size: 15 x 10 x 14mm / 0.6″ x 0.4″ x 0.55″ in (length * width * height).
• Wiring range: 22-12AWG.
• Material color: green plastic galvanized brass needle, silver; Rohs compliant.
• Plastic standard: PA66 UL94V-0 Extremely used terminal block kit.

Specification:

• Pitch: 5.08
• Poles: 3P
• Screw: M2.5, Steel, Zinc Plated or Brass
• Wire Cage: Steel Zinc Plated or Brass Ni Plated
• Pin Header: Brass, Tin Plated
• Housing: PA66, UL94V-0
• Rated Voltage: 300V
• Rated Current: 10A
• Withstanding Voltage: AC2000V/1 Min
• Wire Range: 22-12AWG
• Temperature Range: -40℃~+105℃
• Max Soldering: +250℃ for 5 sec.
• Torque: 0.4 Nm (3.5lb. in)
• Strip Length: 6-7mm

• Product Name: PCB Terminal Block;
• Power Supply: 300V 10A.
• Pole number: 3 P;
• pin count: 3
• pin pitch: 5.08mm;
