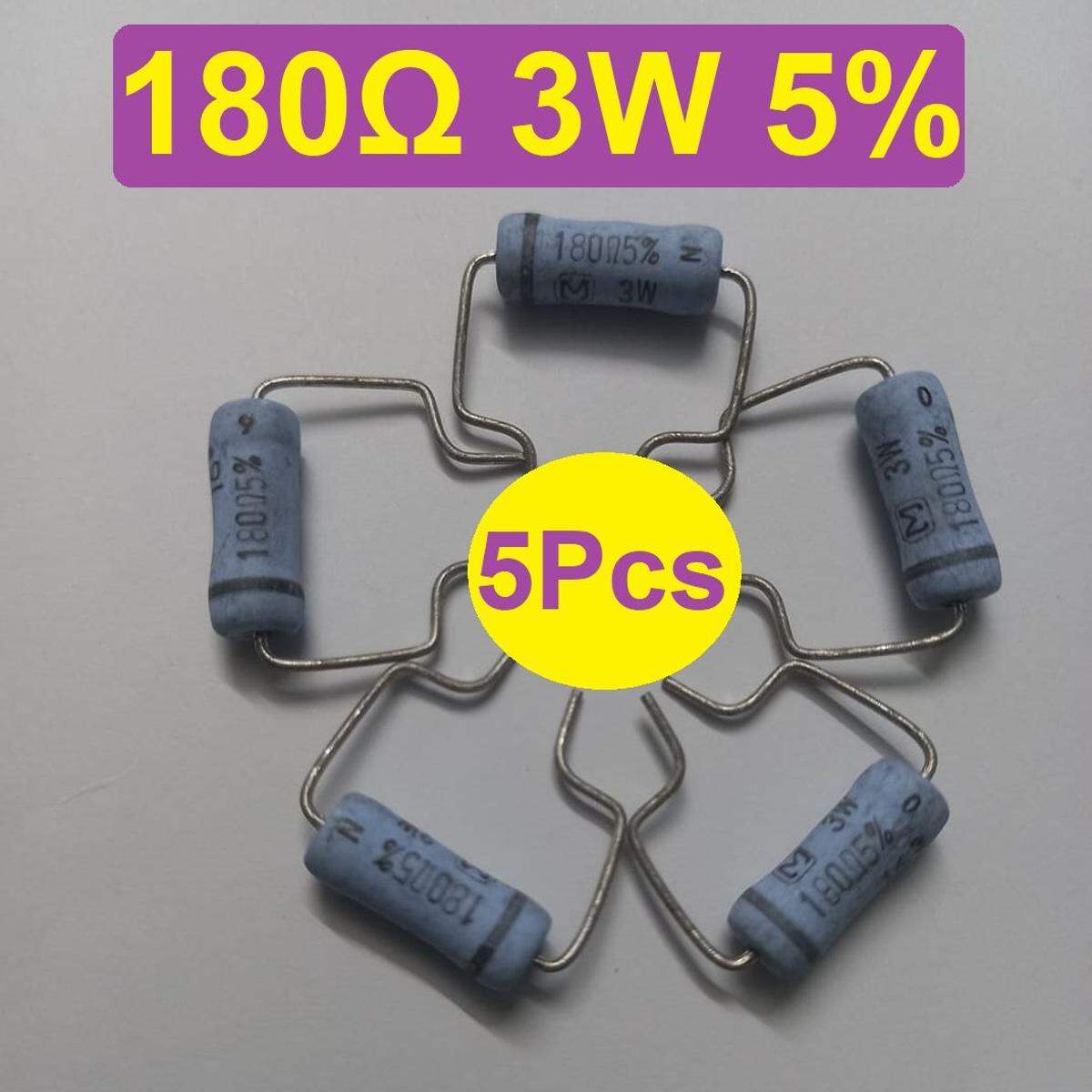

5Pcs 3W 180 Ohm Resistor Metal Oxide Film Resistors Flameproof Power 3 Watt 180 Ohm Metal Oxide Resistors 5% Tolerance Passive Components

Description: 3W 180 Ohm Resistor Metal Oxide Film Resistors Flameproof Power 3 Watt 180 Ohm Metal Oxide Resistors

3W 180 Ohm Resistor Metal Oxide Film Resistors Flameproof Power 3 Watt 180 Ohm Metal Oxide Resistors 5% Tolerance Passive Components

Metal oxide resistors are constructed by placing an oxide of metal (such as tin) to form a coating on the surface. Metal oxide resistors generally have very accurate tolerances. Metal oxide power type resistors can be utilized for both general and surge applications in the automotive, industrial and consumer industries

Features:

• Power Rating: 3.0 Watt
• Resistance: 180 Ohm
• Tolerance: 5%
• Max. Overload Voltage: 700V
• Dielectric Withstanding Voltage: 1000 VAC
• Temperature Coefficient: 300ppm
• Operating Temperature: -55 to 200 deg. C
• Power rating options between 0.5 W and 5 W available
• Low current noise
• Excellent non-linearity
• Non-flammable
• Suitable for automatic insertion

Specifications:

• Manufacturer:Panasonic
• Voltage:700
• Voltage (Vac):1000
• Watts:3
• Ohms: 180
• Tolerance (%):5
• Mounting:Through Hole
• Lead/Terminal Type:Axial
• Number Leads/Terminals:2
• Temperature:200
• Shape:Round (Cylindrical)
• Termination Method:Solder

Package Include:

• 1 x 3W 180 Ohm Resistor Metal Oxide Film Resistors Flameproof Power 3 Watt 180 Ohm Metal Oxide Resistors 5% Tolerance Passive Components
