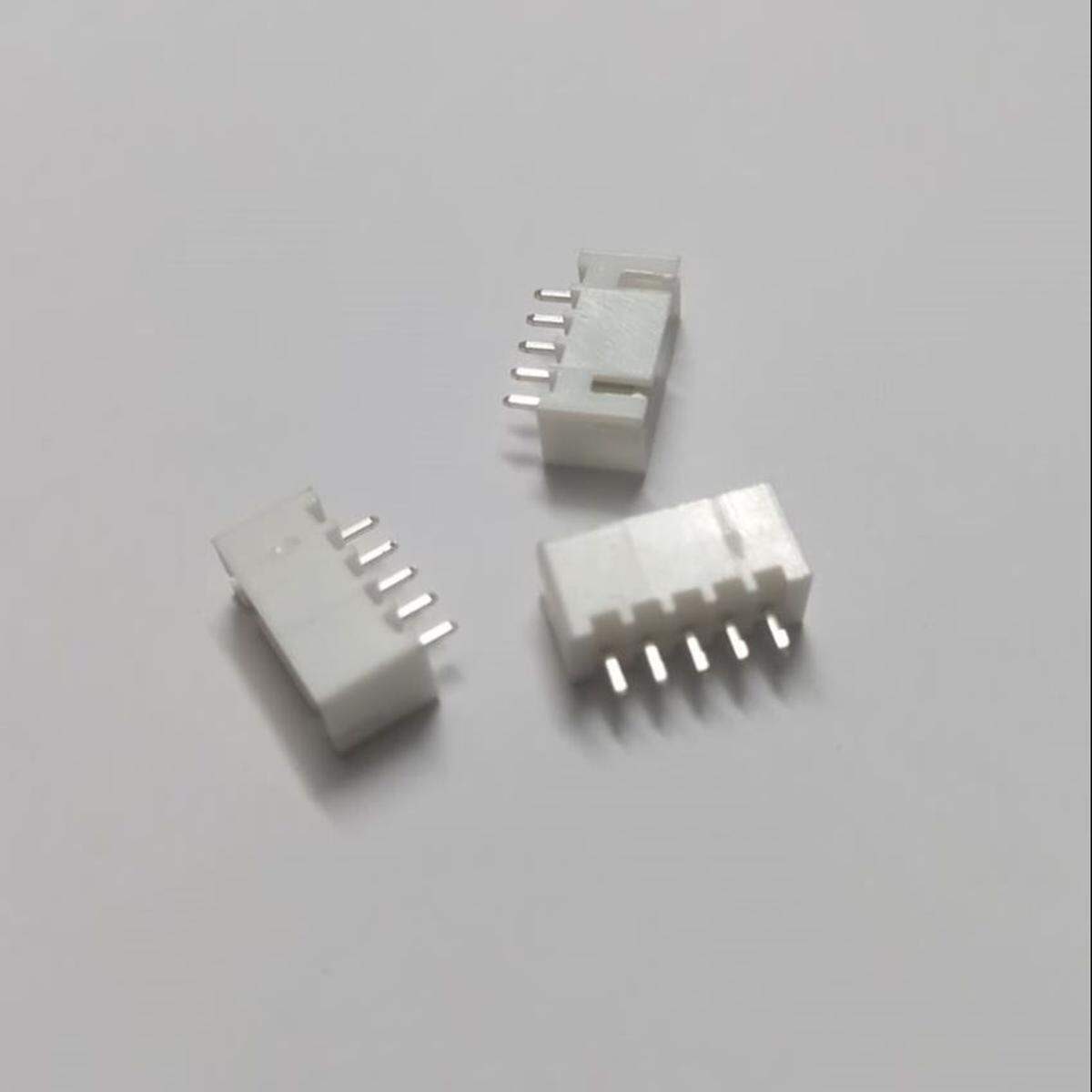

5Pcs- 5Pin WHITE MALE HEADER Female Housing JST XH Male Header 5 Pin 2.54mm Pitch Male Connector For Electronics Projects PCB Mount Circuit Breadboard Friendly DIY Cables

Description: PH2.0-6P 2.0mm 5Pin Male Connector

LED light controlling system, illuminator, speakers, monitors, household appliances, copiers, fax machines, medical equipment, electrothermal equipment, computers, electronic toys, batteries, circuit boards and other products.

Specifications:

• Application: Wire to Board
• Series: PH Connector
• Pitch: 2.0mm
• Positions: 5
• Gender: Male Header , Female Housing
• PC Board Mounting Direction: Top Entry ( Straight )
• Number of Rows: 1
• Applicable wire: AWG#26
• End of wire Material: Solder bare wire
• Voltage rating: 100V DC/AC
• Current rating: 2.0A AC, DC
• Withstand voltage: 800 VAC/minute (effective value)
• Working Temperature: -25°C to +85°C
• Insulation resistance: ≥ 1000M Ω
• Contact resistance: ≤ 0.02 Ω
• Applicable PC board thickness: 0.8 to 1.6mm
