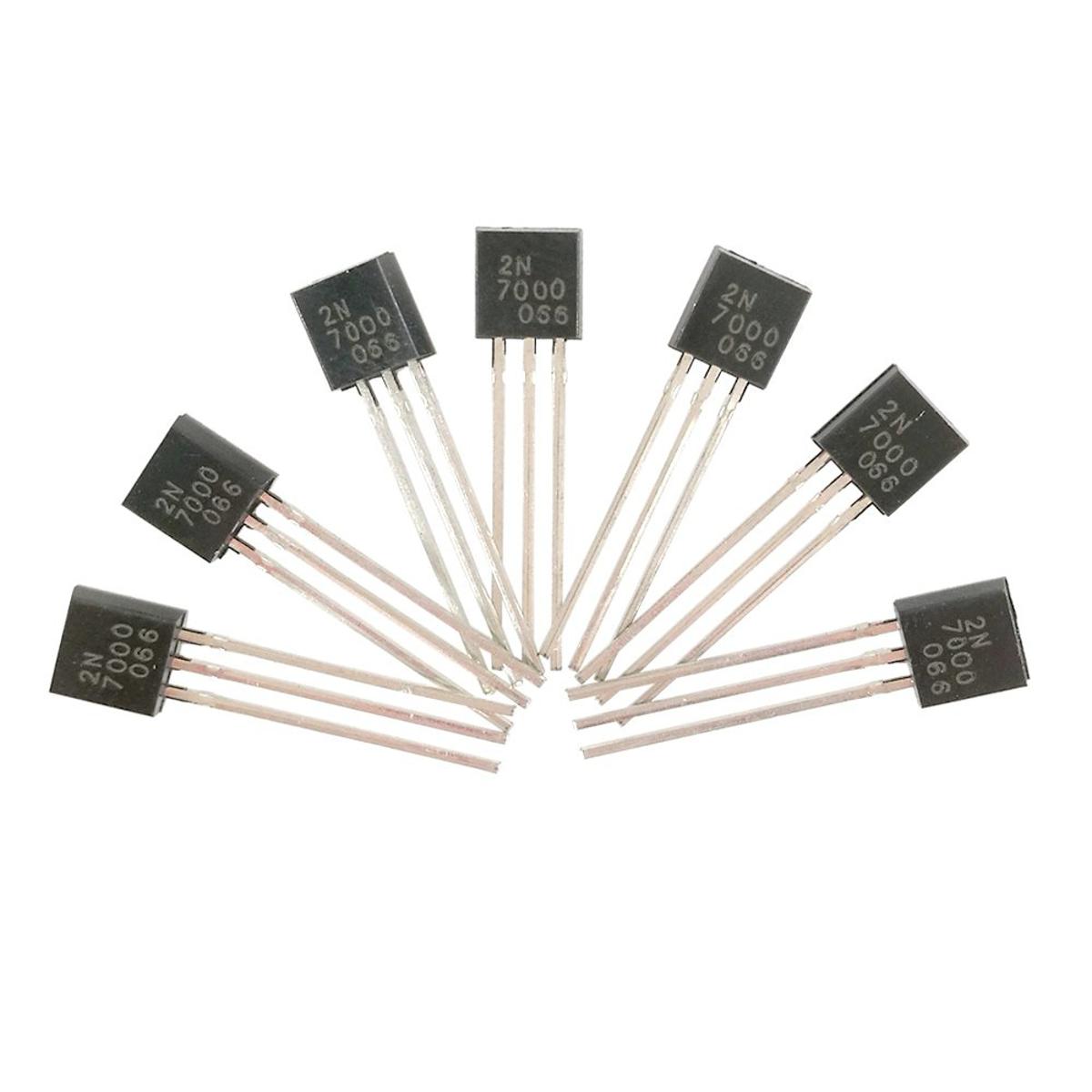

Picture of 5Pcs- 7000 Transistor 2N7000 Transistor 2N7000 MOSFET 60V 200mA N-Channel Transistor MOSFET TO-92 Package 3 Pin Leads
Picture of 5Pcs- 7000 Transistor 2N7000 Transistor 2N7000 MOSFET 60V 200mA N-Channel Transistor MOSFET TO-92 Package 3 Pin Leads

5Pcs- 7000 Transistor 2N7000 Transistor 2N7000 MOSFET 60V 200mA N-Channel Transistor MOSFET TO-92 Package 3 Pin Leads

Category: Building Materials
SKU: UDBD04209
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 55
Tk 65
Tk 65
15% OFF
0 review(s)
  • FET Type:N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):60V
  • Current-Continuous Drain (Id) @ 25°C:200mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
  • Vgs(th) (Max) @ Id:3V @ 1mA
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:50pF @ 25V
  • Power Dissipation (Max):400mW (Ta)
  • Rds On (Max) @ Id, Vgs:5 Ohm @ 500mA, 10V
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:TO-92-3

Call For Order : 09613-800800

Description: 2N7000 MOSFET 60V, 200mA

  • what you get :50pcs to-92 2n7000 n-channel mosfet transistor
  • See Picture 5-9 for Specifications Datasheet,Contact us for Better Price for Bulk Orders
  • We can ensure our quality because we make professional person test them.

Specification:

  • FET Type:N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):60V
  • Current-Continuous Drain (Id) @ 25°C:200mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
  • Vgs(th) (Max) @ Id:3V @ 1mA
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:50pF @ 25V
  • Power Dissipation (Max):400mW (Ta)
  • Rds On (Max) @ Id, Vgs:5 Ohm @ 500mA, 10V
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:TO-92-3






  • FET Type:N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):60V
  • Current-Continuous Drain (Id) @ 25°C:200mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
  • Vgs(th) (Max) @ Id:3V @ 1mA
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:50pF @ 25V
  • Power Dissipation (Max):400mW (Ta)
  • Rds On (Max) @ Id, Vgs:5 Ohm @ 500mA, 10V
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:TO-92-3
