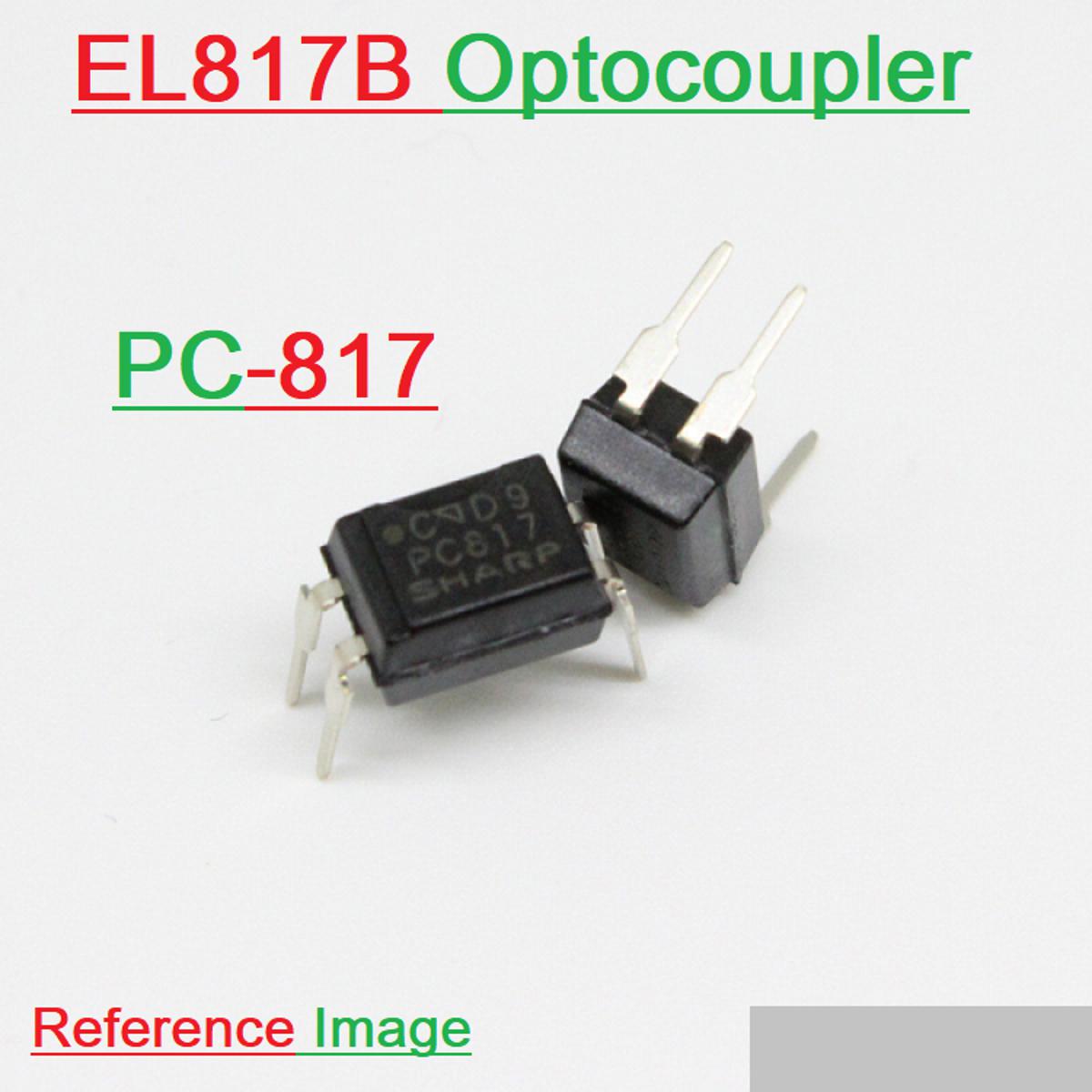

Description: EL817B Optocoupler DIP 4

Everlight opto-coupler with transistor output in DIP 4 casing. Typical applications for the UL, VDE, SEMKO, NEMKO, DEMKO, FIMKO, CSA and BSI certified optocouplers are, for example, network components, photocopiers, vending machines, measuring instruments The high insulation voltage of 5000 VRMSspeaks for itself.

Specification:

• Product Category:Transistor Output Optocouplers
• Package / Case: PDIP-4
• Output Type:NPN Phototransistor
• Number of Channels:1 Channel
• If - Forward Current:60 mA
• Maximum Collector Emitter Voltage:35 V
• Maximum Collector Current:50 mA
• Isolation Voltage:5000 Vrms
• Maximum Collector Emitter Saturation Voltage:0.2 V
• Vf - Forward Voltage:1.4 V
• Vr - Reverse Voltage:6 V
• Pd - Power Dissipation:200 mW
• Maximum Operating Temperature:+ 110 C
• Minimum Operating Temperature:- 55 C
• Packaging:Tube
• Configuration:1 Channel
• Current Transfer Ratio:600 %
• Fall Time:18 us
• Height:3.5 mm
• Length:4.58 mm
• Rise Time:18 us
• Quantity:10Pcs

• Product Category:Transistor Output Optocouplers
• Package / Case: PDIP-4
• Output Type:NPN Phototransistor
• Number of Channels:1 Channel
• If - Forward Current:60 mA
• Maximum Collector Emitter Voltage:35 V
• Maximum Collector Current:50 mA
• Isolation Voltage:5000 Vrms
• Maximum Collector Emitter Saturation Voltage:0.2 V
• Vf - Forward Voltage:1.4 V
• Vr - Reverse Voltage:6 V
• Pd - Power Dissipation:200 mW
• Maximum Operating Temperature:+ 110 C
• Minimum Operating Temperature:- 55 C
• Packaging:Tube
• Configuration:1 Channel
• Current Transfer Ratio:600 %
• Fall Time:18 us
• Height:3.5 mm
• Length:4.58 mm
• Rise Time:18 us
• Quantity:10Pcs
