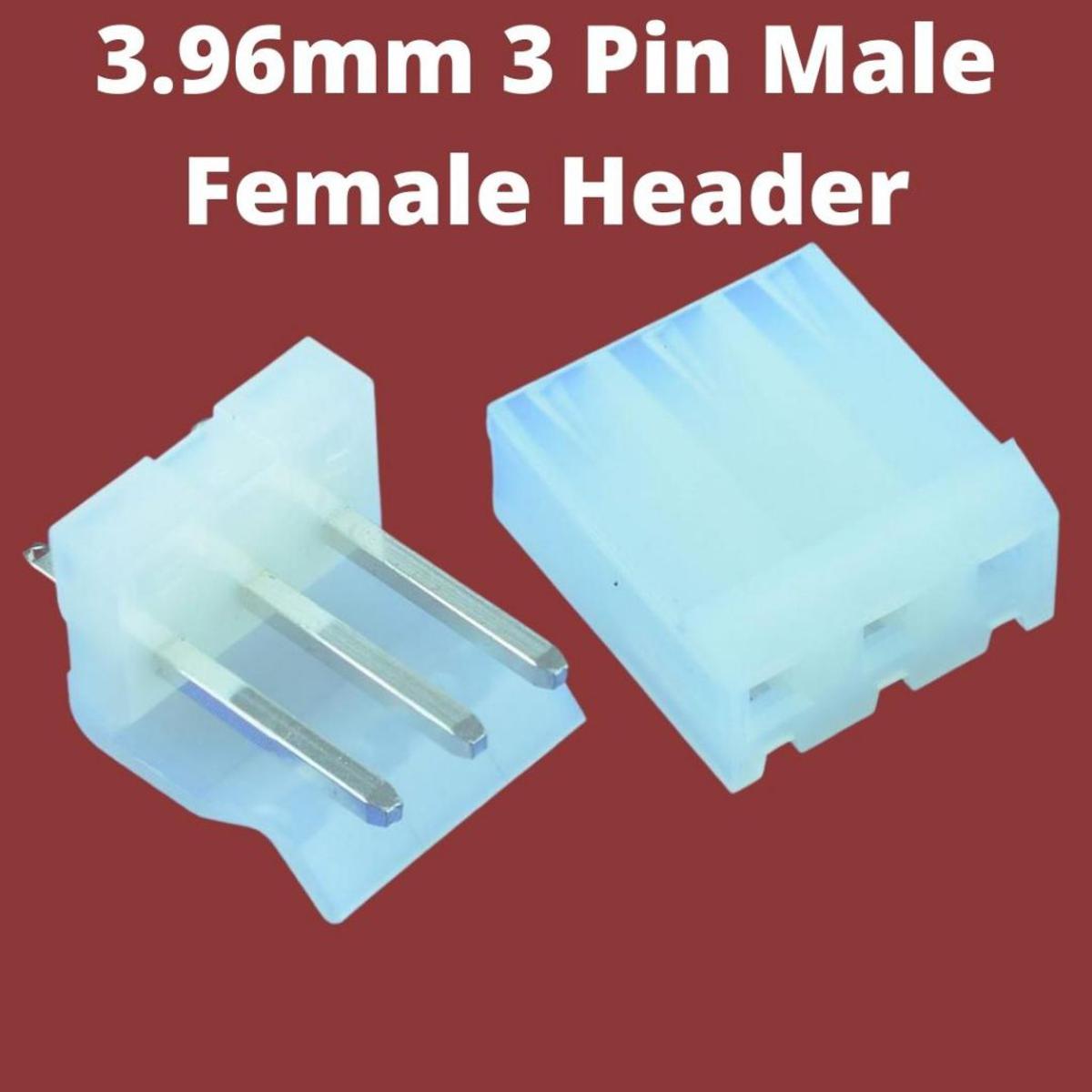

Description: 3Pin CPU MALE FEMALE HEADER

AC 300V Male Header 3 Pin CPU MALE FEMALE HEADER Female Housing JST CH 3.96mm Pitch Leads Male Female Connector 3 Pin Male Female Connector Cables Connector

LED light controlling system, illuminator, speakers, monitors, household appliances, copiers, fax machines, medical equipment, electrothermal equipment, computers, electronic toys, batteries, circuit boards and other products.

3Pin CPU MALE FEMALE HEADER Female Housing JST CH 3.96mm Pitch Male Female Connector For Electronics Projects PCB Mount Circuit Breadboard Auto Rickshaw Friendly DIY Cables

Specifications & Features:

• Application: Wire to Board
• Series: CH Connector
• Pitch: 3.96mm
• Positions: 3
• Number of Rows: 1
• Voltage rating:300V
• Current rating: 2.0A AC, DC
• Working Temperature: -25°C to +85°C
• Insulation resistance: ≥ 1000M Ω
• Contact resistance: ≤ 0.02 Ω
• Applicable PC board thickness: 0.8 to 1.6mm
• Gender: Male Header
• PC Board Mounting Direction: Top Entry ( Straight )

• Application: Wire to Board
• Series: CH Connector
• Pitch: 3.96mm
• Positions: 3
• Number of Rows: 1
• Voltage rating:300V
• Current rating: 2.0A AC, DC
