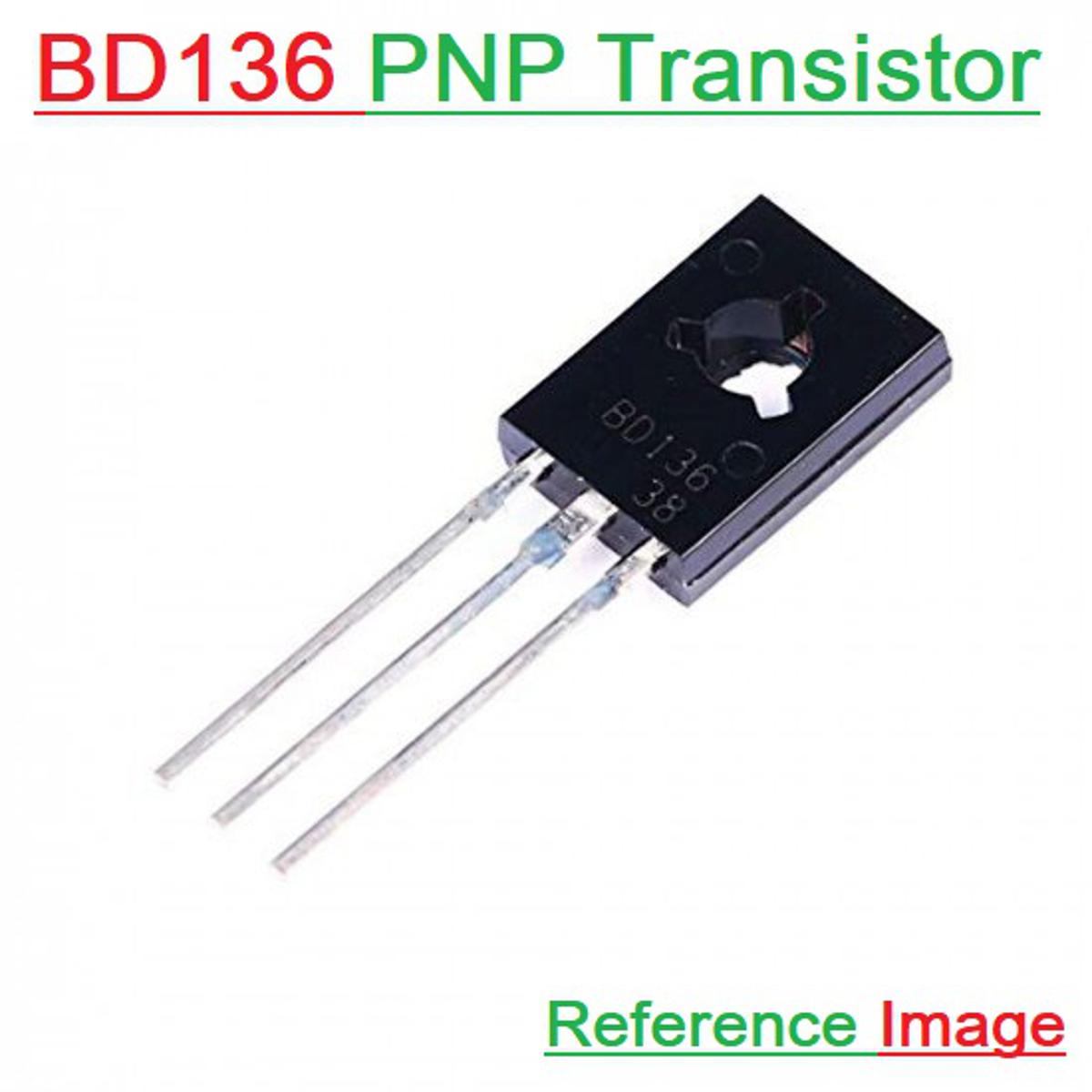

5Pcs- BD136 BD-136 BD 136 PNP Transistor 45V 1.5A PNP Power Transistor TO-126 Bipolar Transistor IC Medium Power Silicon PNP Triode Transistor 3 Pin Leads

Category: Building Materials
SKU: UDBD04544
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 61
Tk 72
Tk 72
15% OFF
0 review(s)
  • Package Type: TO-126
  • Transistor Type: PNP
  • Max Collector Current(IC): –1.5A
  • Max Collector-Emitter Voltage (VCE): –45V
  • Max Collector-Base Voltage (VCB): –45V
  • Max Emitter-Base Voltage (VEBO): –5V
  • Max Collector Dissipation (Pc): 5 Watt
  • Max Transition Frequency (fT): 190 MHz
  • Minimum & Maximum DC Current Gain (hFE): 25 – 250
  • Max Storage & Operating temperature Should Be: -55 to +150 Centigrade

Call For Order : 09613-800800

Description: BD136 Transistor BD 136 PNP Power Transistor Output 45V 1.5A TO-126 Package Transistor IC

BD136 is another transistor from the BD13x series of PNP and NPN transistors. This transistor is manufactured in TO-126 package. It can handle or drive maximum collector current of -1.5A and the maximum pulse current is 2A but a good and suitable heatsink must be required with the transistor to operate it without an problem. This transistor can perform well as a switch and amplifier. As a switch it can handle or drive maximum load of -1.5A continuously with -45V load voltage. It can also perform well as an amplifier thus it can be used in many audio and other type of signal amplification circuits.

Specification:

  • Package Type:TO-126
  • Transistor Type:PNP
  • Max Collector Current(IC):–1.5A
  • Max Collector-Emitter Voltage (VCE):–45V
  • Max Collector-Base Voltage (VCB):–45V
  • Max Emitter-Base Voltage (VEBO):–5V
  • Max Collector Dissipation (Pc):5 Watt
  • Max Transition Frequency (fT):190 MHz
  • Minimum & Maximum DC Current Gain (hFE):25 – 250
  • Max Storage & Operating temperature Should Be:-55 to +150 Centigrade

Replacement and Equivalent:

BD138, BD140, BD238G, MJE235, MJE171, BD792, BD168, BD180, MHE253, 2SB1354, BD190, BD236, BD378-16, MJE702, 2SB1355. (Check pin configuration of any transistor you are using before replacing in your circuit).

Where We Can Use it & How to Use:

This transistor can be used in many general purpose applications for example if one is using it as a switch it can drive many loads at a time under -1.5A the loads can be high power LEDs, high power transistors, high power relays, devices etc. It can also be used at the output of arduino, raspberry pi and these type of other platforms and microcontroller to drive loads. On the other hand it can also be used in audio amplifier stages and as a separate amplifier to drive a 2 to 3 inch speaker directly. The audio source can be any few mile watt output from any audio device.

Applications:

  • Audio Amplifier
  • Audio Amplifier Stages
  • Signal Amplifier Circuits
  • Switching Loads under -1.5A
  • Power Supply Circuits
  • Battery Charger Circuits
  • Motor Driver
  • Darlington Pair






  • Package Type: TO-126
  • Transistor Type: PNP
  • Max Collector Current(IC): –1.5A
  • Max Collector-Emitter Voltage (VCE): –45V
  • Max Collector-Base Voltage (VCB): –45V
  • Max Emitter-Base Voltage (VEBO): –5V
  • Max Collector Dissipation (Pc): 5 Watt
  • Max Transition Frequency (fT): 190 MHz
  • Minimum & Maximum DC Current Gain (hFE): 25 – 250
  • Max Storage & Operating temperature Should Be: -55 to +150 Centigrade
