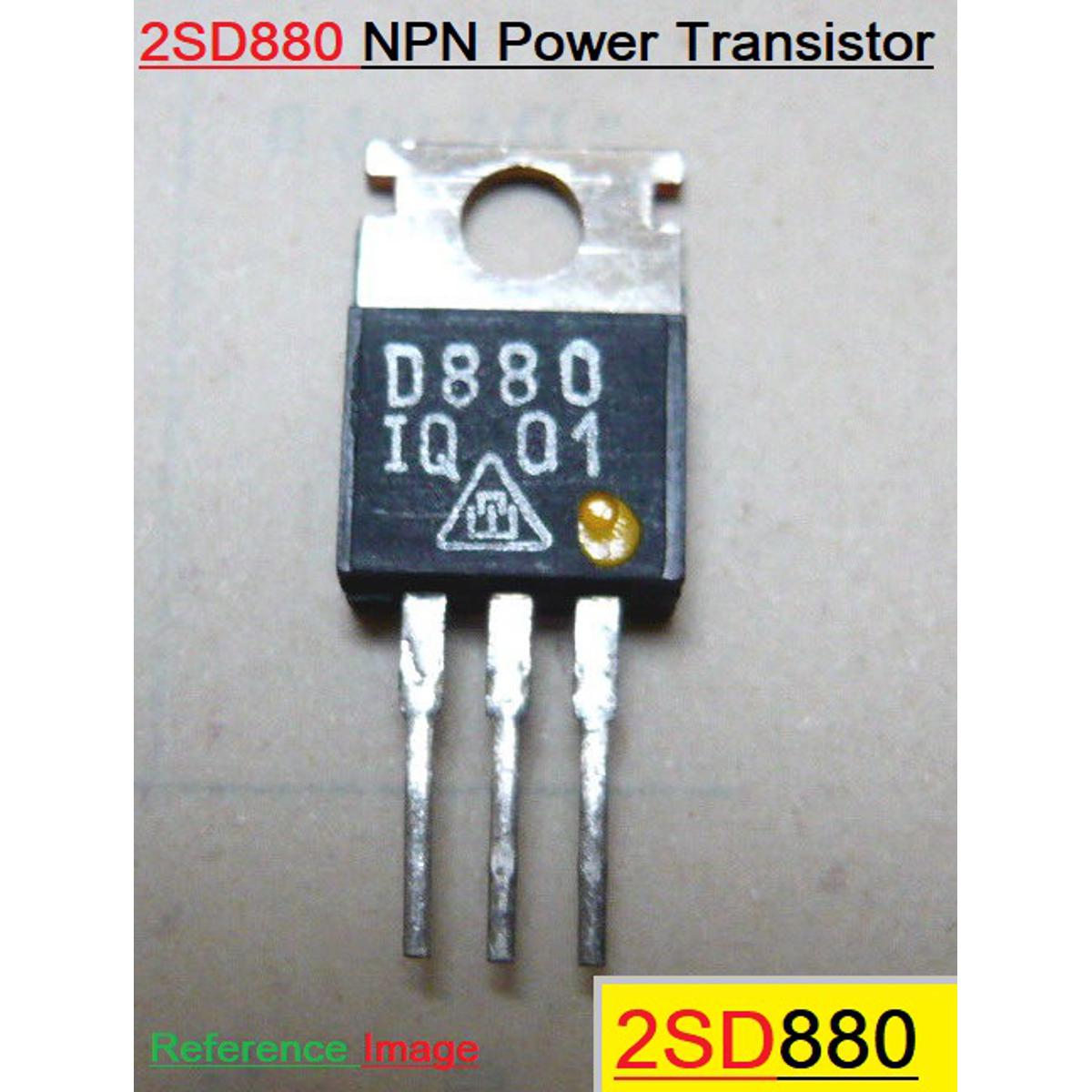

Description: 2SD880 NPN Power Transistor

D880 2SD880 880 NPN Transistor 60V 3A 30W Bipolar Silicon Power Transistor TO-220 Package 3 Pin Leads Chip IC

Features:

Collector-Emitter Volt (Vceo): 60V

Collector-Base Volt (Vcbo): 60V

Collector Current (Ic): 3.0A

hfe: 60-300 @ 500mA

Power Dissipation (Ptot): 30W

Transition Frequency (ft): 3MHz

Type: NPN

Characteristics of 2SD880 Transistor

Type - NPN

Collector-Emitter Voltage: 60 V

Collector-Base Voltage: 60 V

Emitter-Base Voltage: 7 V

Collector Current: 3 A

Collector Dissipation - 30 W

DC Current Gain (hfe) - 60 to 300

Transition Frequency - 3 MHz

Operating and Storage Junction Temperature Range -55 to +150 °C

Package - TO-220

• Collector to Base Voltage : Vcbo = 25V
• Collector to Emitter Voltage : Vceo = 25V
• Emitter to Base Voltage : Vebo = 5V
• Collector Current : Ic = 1A
