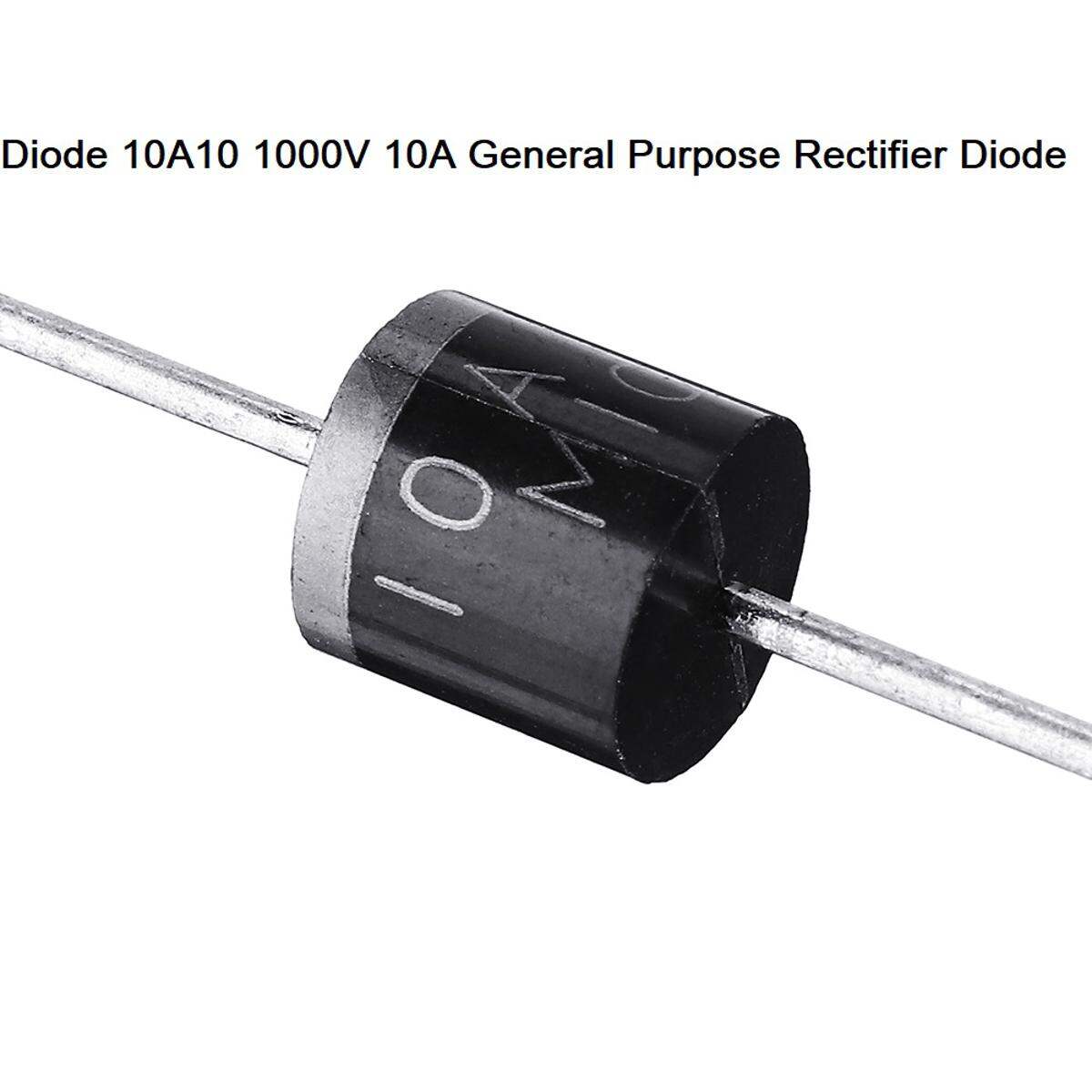

5Pcs- Diode 10A10 1000V 1KV 10A General Purpose Rectifier Diode 10A10 Silicon Junction Diode R-6 Package Electrical Circuitry & Parts

Name: 5Pcs- Diode 10A10 1000V 1KV 10A General Purpose Rectifier Diode 10A10 Silicon Junction Diode R-6 Package Electrical Circuitry & Parts
Brand: No Brand
SKU: ELPB1016553
Price: 134.00 BDT
Availability: InStock

Category: Computers, Components & Accessories

SKU: ELPB1016553

Manufacturer: No Brand

Seller: Electronics Parts BD

Tk 134

0 review(s)

Call For Order : 09613-800800

Descriptions: Diode 10A10 1000V 1KV 10A General Purpose Rectifier Diode 10A10 Silicon Junction Diode R-6 Package

10A10 is a rectifier diode, designed specifically for circuits that need to convert alternating current to direct current. It can pass currents of up to 10A, and have peak inverse voltage (PIV) rating of 1,000 V.
Features:Low reverse leakage.
High forward surge capability.
High temperature soldering guaranteed:260℃/10 seconds, 0.375″ (9.5mm) lead length;5 lbs. (2.3kg) tension
Lead and body according with RoHS standard.
Size: 6x1cm
Terminals: Plated axial leads
Polarity: Color band denotes cathode end
Mounting Position: Any
Maximum Ratings & Thermal Characteristics: Ratings at 25℃ ambient temperature unless otherwise specified.
Electrical Characteristics Ratings at 25℃ ambient temperature unless otherwise specified.
Specifications:Product Name : Rectifier Diode ;
Model: 10A 1000V;
Lead Diameter : 1.2mm / 0.047″
Total Dimension : 9 x 61mm
Color : Black, Silver Tone
Net Weight : 190g
Package Include:1x Diode 10A10 1000V 1KV 10A General Purpose Rectifier Diode 10A10 Silicon Junction Diode R-6 Package
