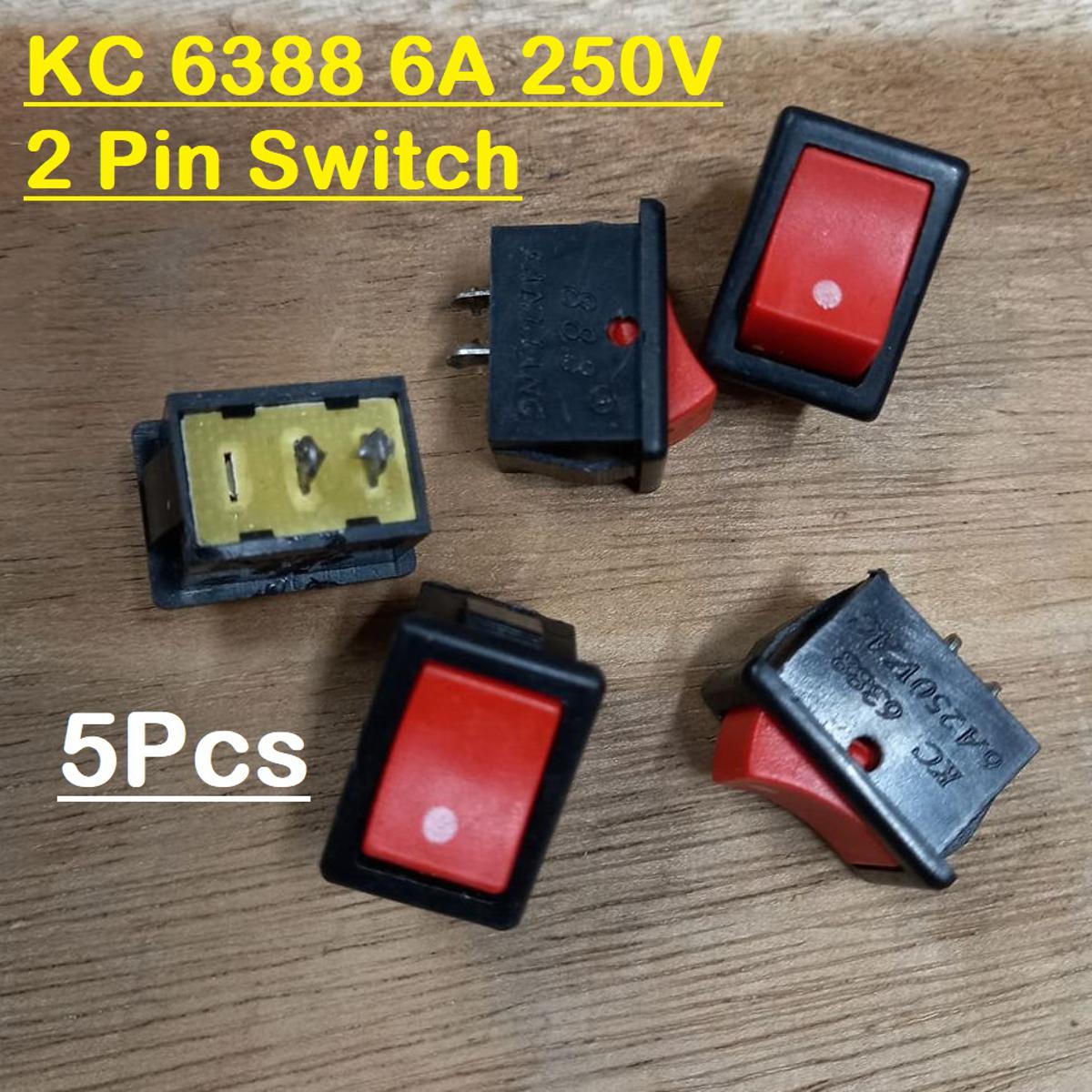

Description: KC 6388 6A 250VAC Rocker Switch

KC-6388 KC 6388 Rocker Switch 2 Pin 6A 250V 2 Positions SPDT ON OFF Boat Rocker Switch Power Rocker Switch Black & Red Color Micro Switch For Electronic Projects

High quality 6 Amp single pole illuminated rocker switch from leading manufacturer Rleil to fit the standard 21mm x 15mm panel cut out. 6A 250V AC rating to suit more demanding applications. On Off, single pole single throw (SPST) function. This 6 Amp rocker switch has a black body and red illuminated rocker. Carries ENEC (European) and UL (American) approvals and complies with RoHS.

​Features:

• On-off
• Non-illuminated/illuminated
• Quick connecting terminals
• Plastic housing and actuator
• Suitable for outdoor applications
• Positions Marked on the rocker: I-O-II for easy identification
• Long Switching Life: 50000-100000 cycles
• Easy installation, No Screws or Nuts required
• Used widely for On/Off power control, car, motorcycle, boat, some machines, water dispenser, etc.

Specification:

• Rating: Max 6A at 250VAC
• Structure: SPDT
• Switching Mode: ON-OFF
• Material: Plastic and Metal
• Color: Black & Red
• Length: 21mm
• Width: 15mm
• Rated voltage/current: 10A125VAC / 6A250VAC
• Insulated resistance: ≧100MΩ
• Contact resistance: ≦50MΩ
• Dielectric strength: 1500VAC/5S
• Endurance: ≧10000cycles

Package Include:

• 1 x KC 6388 6A 250VAC Rocker Switch

• Rating: Max 6A at 250VAC
• Structure: SPDT
• Switching Mode: ON-OFF
• Material: Plastic and Metal
• Color: Black & Red
• Length: 21mm
• Width: 15mm
• Rated voltage/current: 10A125VAC / 6A250VAC
