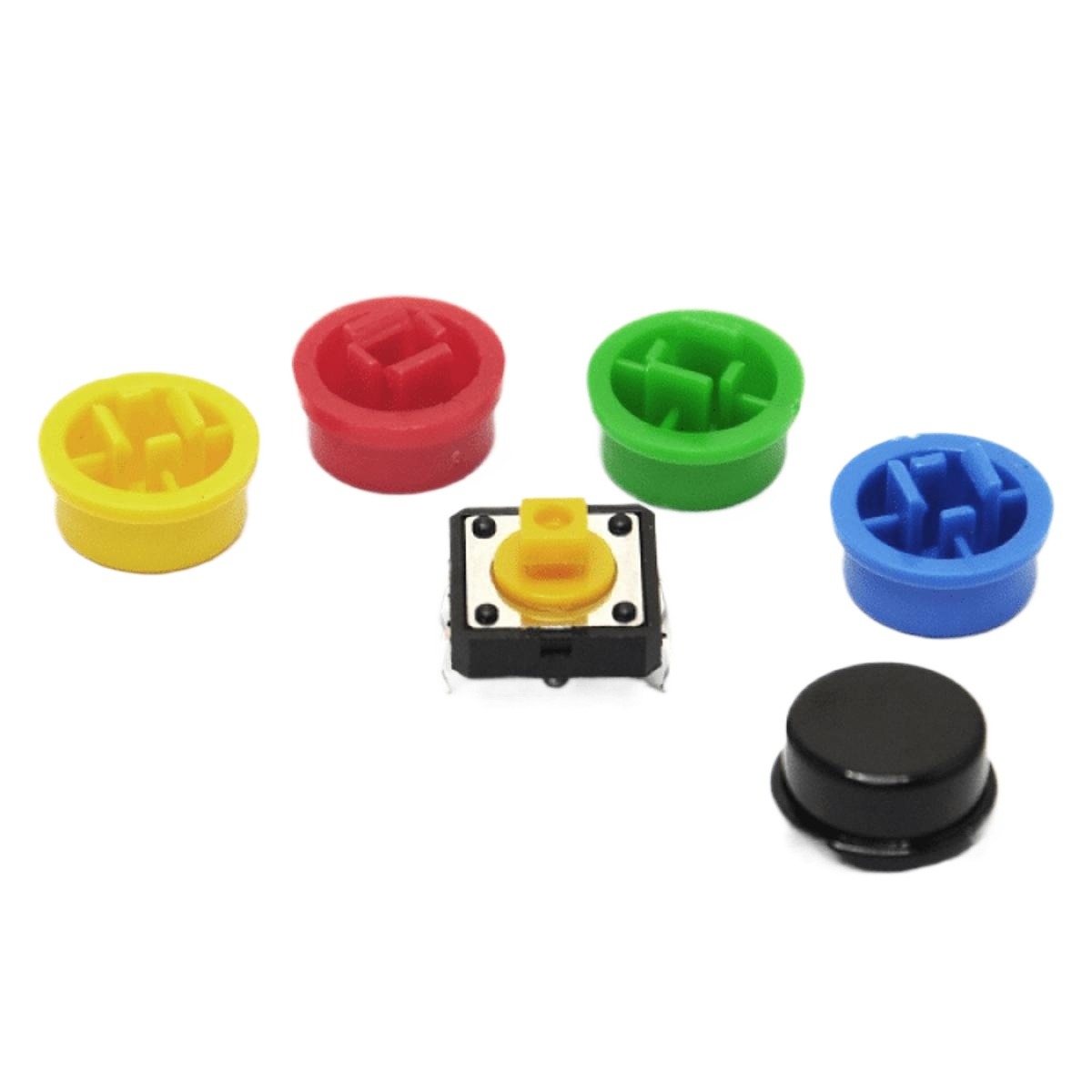

Description: Round Cap 12x12x7.3mm Momentary 4Pin Tactile Tact Push Button On Off Reset Switch Multicolor Round Caps

MULTI Color ROUND Cap 12x12x7.3mm Momentary 4Pin Tactile Tact Push Button On Off Reset Switch Multicolor Round Caps For B3F-4055 Push Switches

12x12x7.3 mm Tactile Push Button Switch is widely used as a standard input “button” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

Features:

Operating Voltage: 12VDC

Operating Current: 50mA

On/Off Function: Push to ON

Switch Type: Momentary

Mounting Type: Through-hole

Contact Material: Aluminum alloy

Contact Resistance: 50mΩ

Insulation Resistance: 100MΩ

Operating Temperature Range: -20°C to +70°C

Operation Force: About 3-5N

Operation Stroke: 1.05mm

Body Material: Plastic

Mech. & Electrical Life: 300,000 Cycles

Length: 12mm

Width: 12mm

Height: 7.3mm

Weight: 2gm

Specifications:

Product Name : Switch Cap

Size : 13 x 8mm

Fit Square Switch Size : For 12x12x7.3mm Tact Switch

Hole Size : 3 x 3.5mm

Material : Plastic

Color: Any
