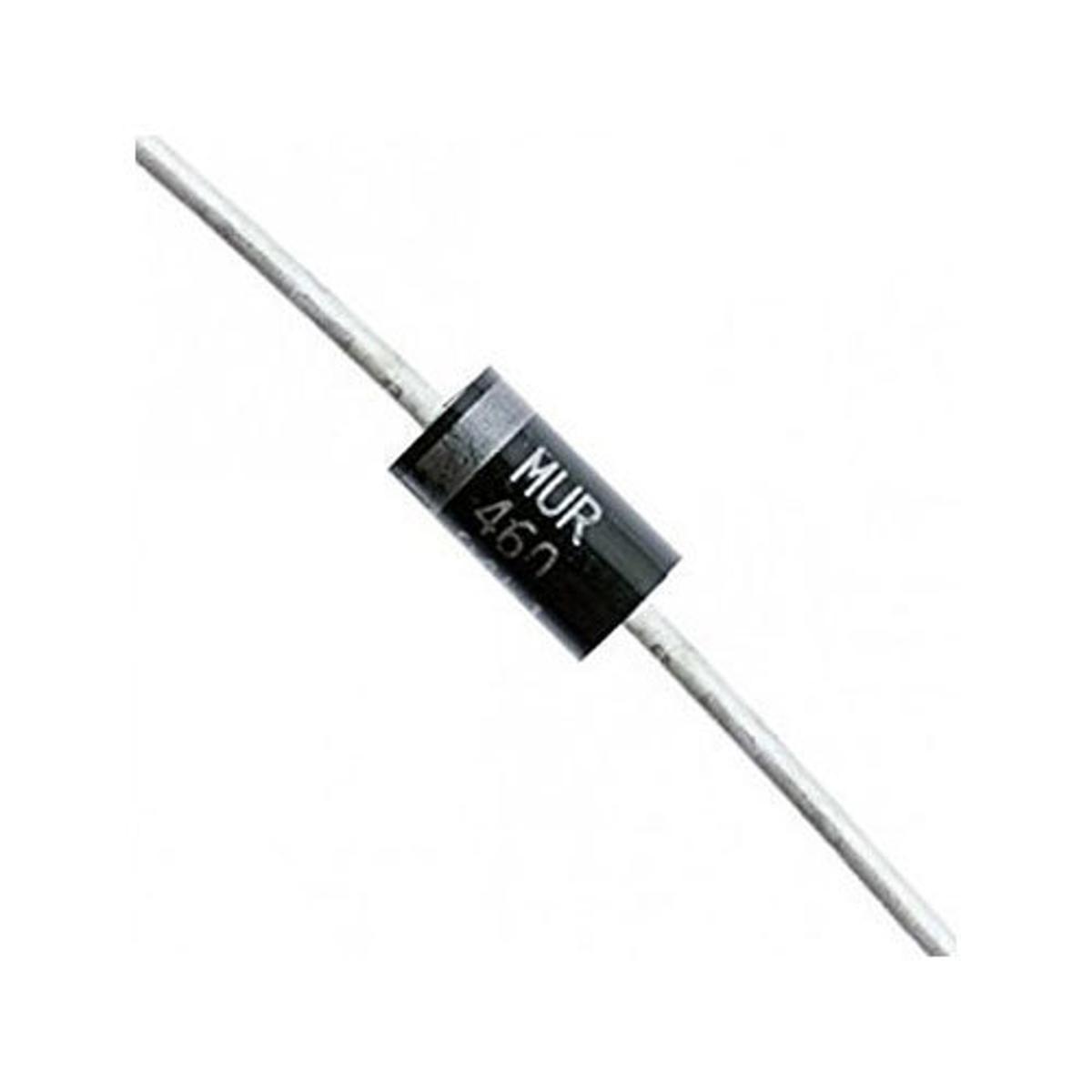

Description: MUR460 Heavy Duty Recovery Rectifier Diode 4A 600V DO-201AD (DO-27) Axial Diodes

Features of MUR460 Diode:

• Ultra fast 25 ns, 50 ns and 75 ns Recovery Times
• 175°C Operating Junction Temperature
• Low Forward Voltage
• Low Leakage Current
• High Temperature Glass Passivated Junction
• Reverse Voltage to 600 V
• Shipped in Plastic Bags, 500 per Bag
• Available in Tape and Reel, 1500 per Reel, by Adding a “RLG’’ n Suffix to the Part Number
• MUR460 available in Fan Fold Ammo Pak, 1000 per Box, by adding a “FFG” suffix to the part number
• These are Pb−Free Packages

Mechanical Characteristics of MUR460 Diode:

• Case : Epoxy, Molded
• Weight : 1.1 Gram (Approximately)
• Finish : All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
• Lead Temperature for Soldering Purposes : 260°C Max. for 10 Seconds
• Polarity : Cathode indicated by Polarity Band

• Ultra fast 25 ns, 50 ns and 75 ns Recovery Times
• 175°C Operating Junction Temperature
• Low Forward Voltage
• Low Leakage Current
• High Temperature Glass Passivated Junction
• Reverse Voltage to 600 V
• Shipped in Plastic Bags, 500 per Bag
• Available in Tape and Reel, 1500 per Reel, by Adding a “RLG’’ n Suffix to the Part Number
• MUR460 available in Fan Fold Ammo Pak, 1000 per Box, by adding a “FFG” suffix to the part number
• These are Pb−Free Packages
