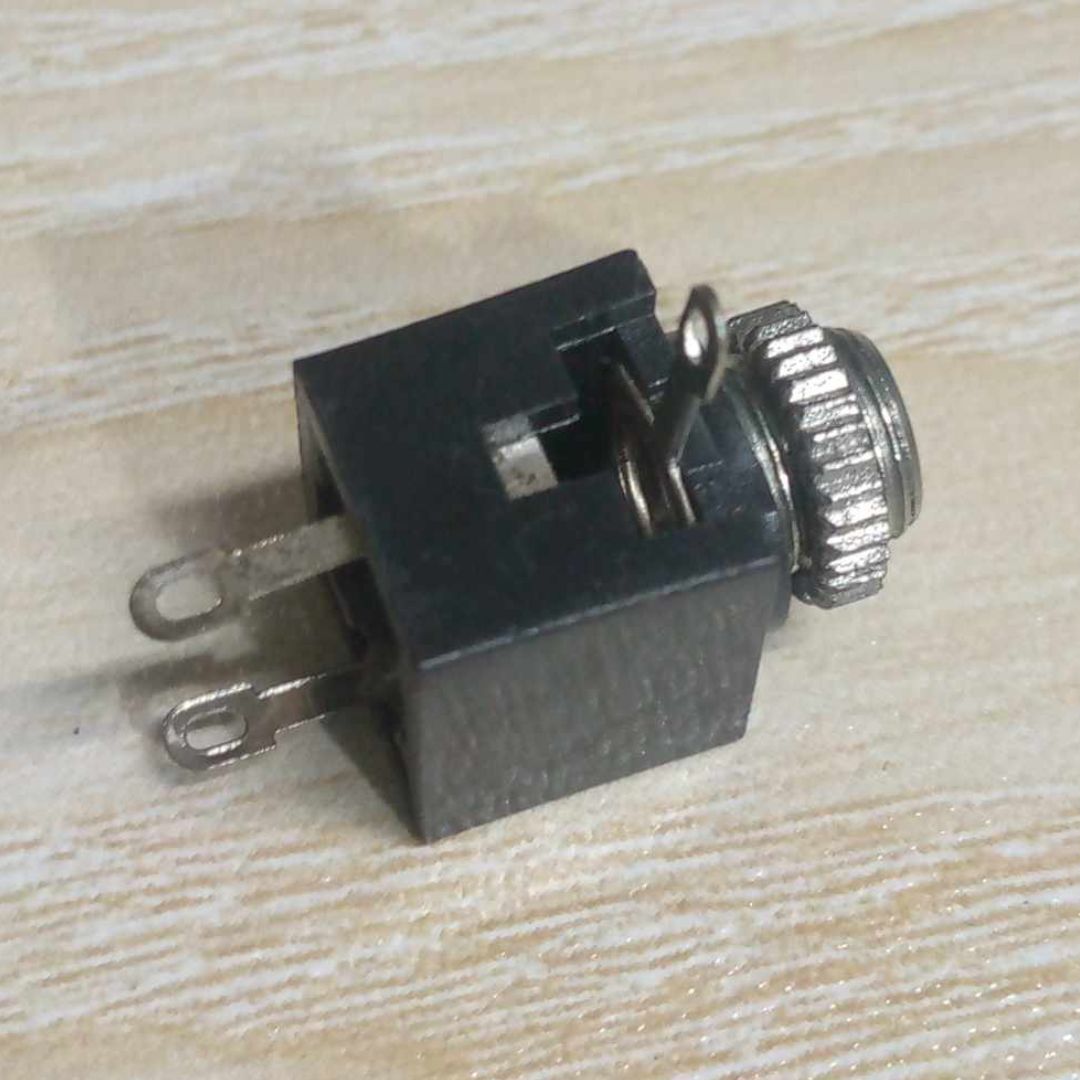

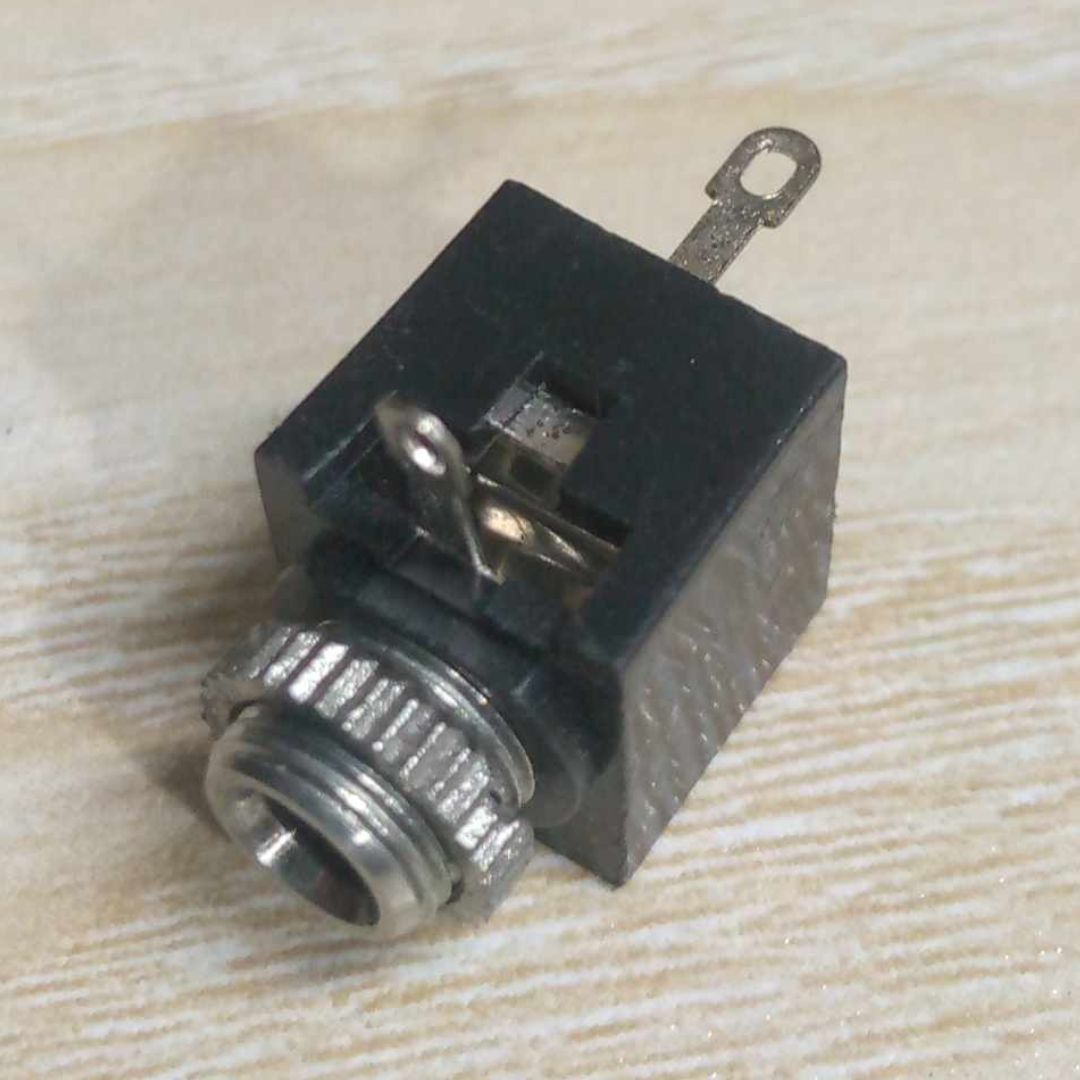

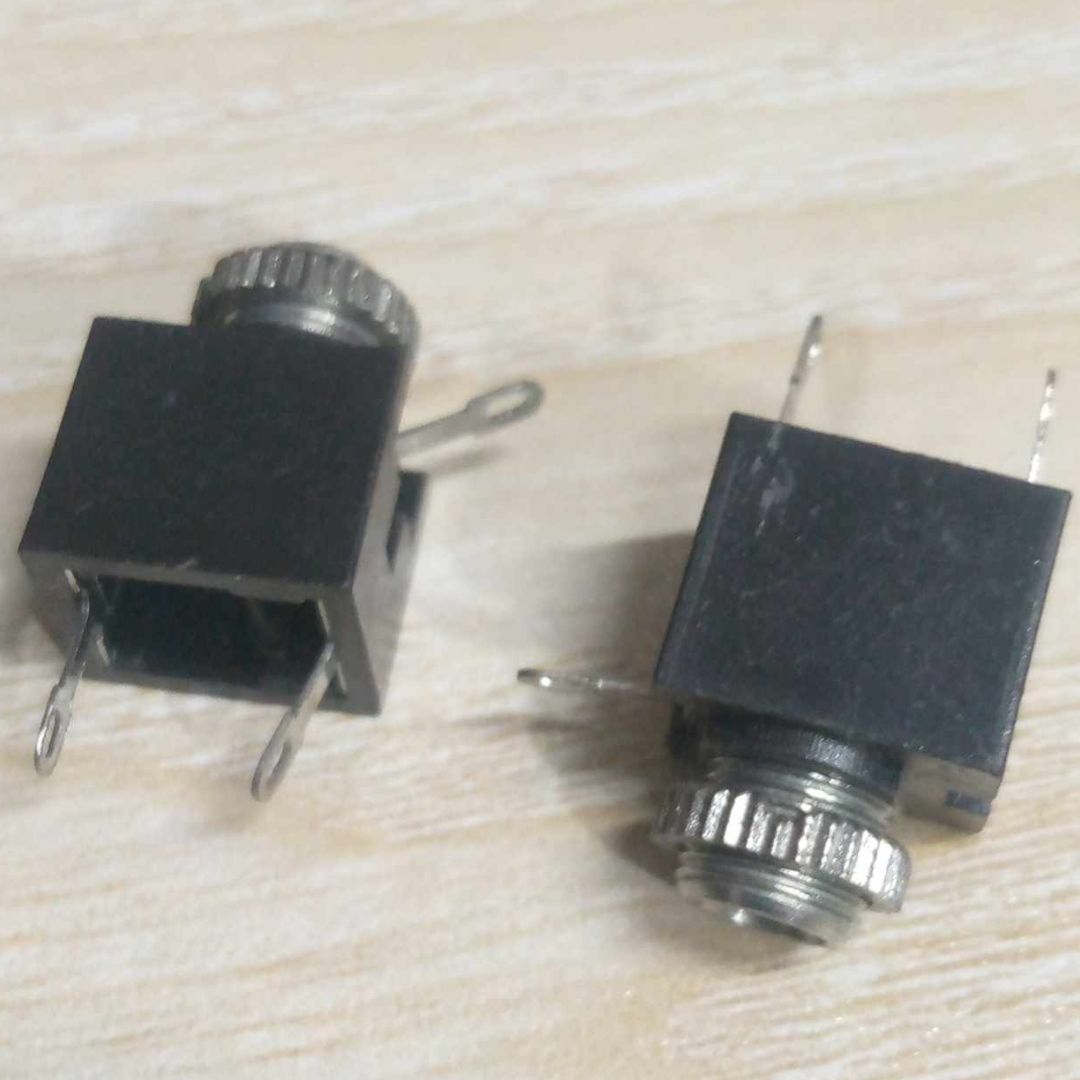

Description: Female 3.5mm Earphone Socket Pj301 Audio Connector 3 Pin DIP Mono Channel Headphone Socket

PJ301 PJ-301 3.5mm 3Pin DIP Headphone Female Audio Socket Female Switched Socket Solder Panel Jack 3.5mm Mono Channel Audio Connector Cables 3 Pin For Mobil Phone

Welcome to Online shop, PJ301M Female Audio Connector 3 Pin DIP Stereo Headphone Jack With Nut. Female 3.5mm Earphone Socket Pj301 Audio Connector 3 Pin DIP Mono Channel Headphone Socket

Note: Transition: 1cm = 10mm = 0.39inch Please allow 0-3mm error due to manual measurement. pls make sure you do not mind before you bid. Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Specification:

• Product name SMD/DIP 2.5mm 3.5mm female audio earphone jack
• Rating DC 30V 0.5A
•  Size: 2×1.1cm
• Color: black
• Insulation resistance 100MΩ max. 250V DC
• Withstand voltage AC500V(50HZ) min
• Contact resistance ≤50mΩ
• Operating temp. range -30ºC ~ +70ºC
• Lifetime 5000 cycles min.
• Actuating force 3-30N

Application

• They can be used in mobile phones stereo design, CD players, wireless telephones, MP3, MP4 PDA notebooks, DVD and digital camera.

• Product name SMD/DIP 2.5mm 3.5mm female audio earphone jack
• Rating AC 220V 0.5A
•  Size: 2×1.1cm
• Color: black
• Insulation resistance 100MΩ max. 250V DC
• Withstand voltage AC500V(50HZ) min
• Contact resistance ≤50mΩ
• Operating temp. range -30ºC ~ +70ºC
• Lifetime 5000 cycles min.
• Actuating force 3-30N
