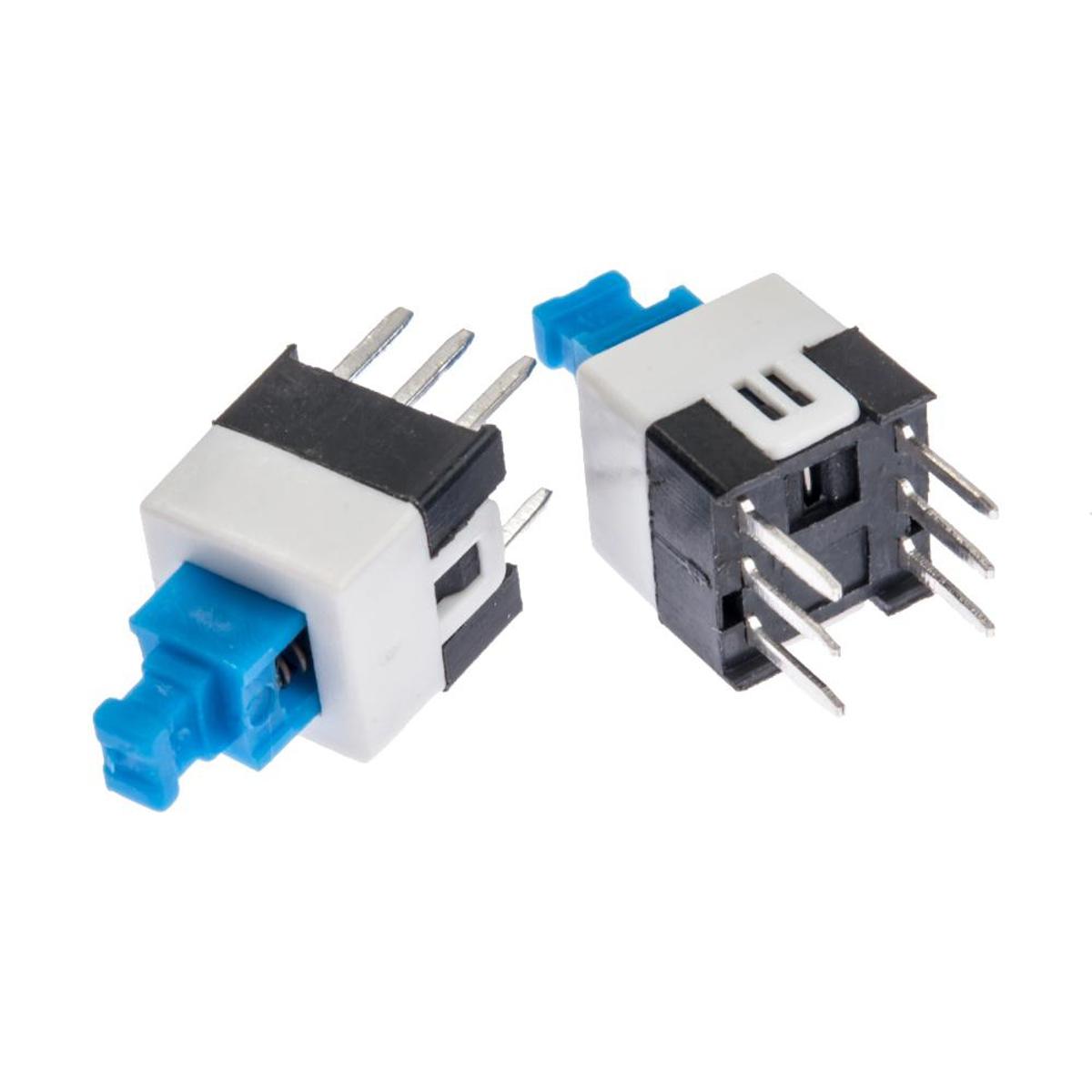

Description: Self Lock 6 Pin Square 6.5×6.5x15mm 6Pin DIP 0.1A

Self Lock 6 Pin Square 6.5×6.5x15mm 6Pin DIP 0.1A 30V DC Mini Self-Locking On Off Multimeter Switches Power Micro Switch Self Lock On/Off Double Row Latching Switch

Features:

• Self-locking Switch
• Size: 6.5×6.5x15mm
• Double Row
• 6 Pin
• Temperature: – 40~70°C
• Rated Load: 0.3A 60V AC /1.5A 25V AC
• Contact Resistance: <=0.02
• Withstand Voltage: AC250V (50Hz)/min
• Actuation Force: 100-350g
• Insulation Resistance :>100M
• Life: 100000 times

Features:

• Color : Blue, White, Black, Silver Tone
• Material : Plastic, Metal, Electric Parts
• Weight : 24g
• Momentary contact, 6 pins, square push button, DIP through hole mounting.
• Used in the fields of electronic products, household appliances and more.
• High precision mechanism design offers acute operation and long service life.

• Self-locking Switch
• Size: 6.5×6.5x15mm
• Double Row
• 6 Pin
• Temperature: – 40~70°C
• Rated Load: 0.3A 60V AC /1.5A 25V AC
• Contact Resistance: <=0.02
• Withstand Voltage: AC250V (50Hz)/min
• Actuation Force: 100-350g
• Insulation Resistance :>100M
• Life: 100000 times
