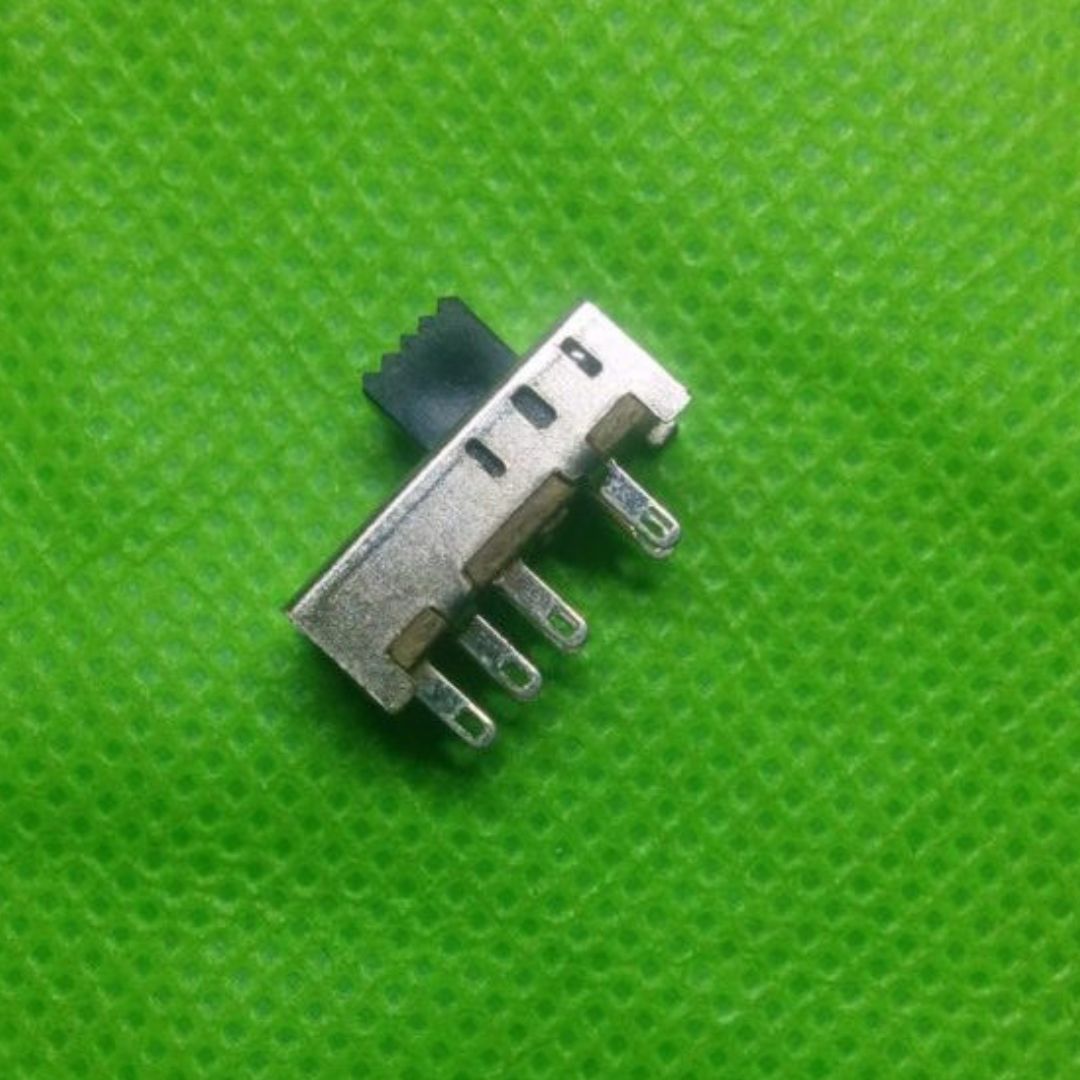

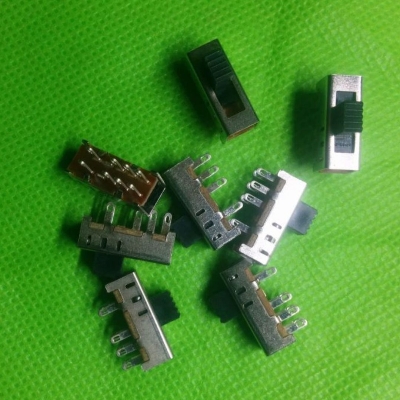

Description: 8 Pin 3 Position Electrical PCB Terminal Slide Switch

Features:

Easy Structure, Body, 8 Terminal, Vertical Handle,2 Pole 3 Position, Sliding Knob Actuator.Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.Also a great component for DIY.

• Terminal Quantity: 8 Pcs, Working Power: 0.5A 50V DC, Contact Resistance: 30mΩ Max
• Withstand Voltage: AC 500V for 1 min, Mounting Type: Through Hole
• Insulation Resistance: 100mΩ Min at 500V DC,Hole Diameter: 2.2mm / 0.08"
• Terminal Size: 0.06" x 0.04"( L * W), Knob Size:0.17" x 0.14" x 0.44"

• Switch Rating: 50V DC, 100mA
• Type: Slide
• Position Number: 8
• Color: Any
• Pitch: 2.54 mm
