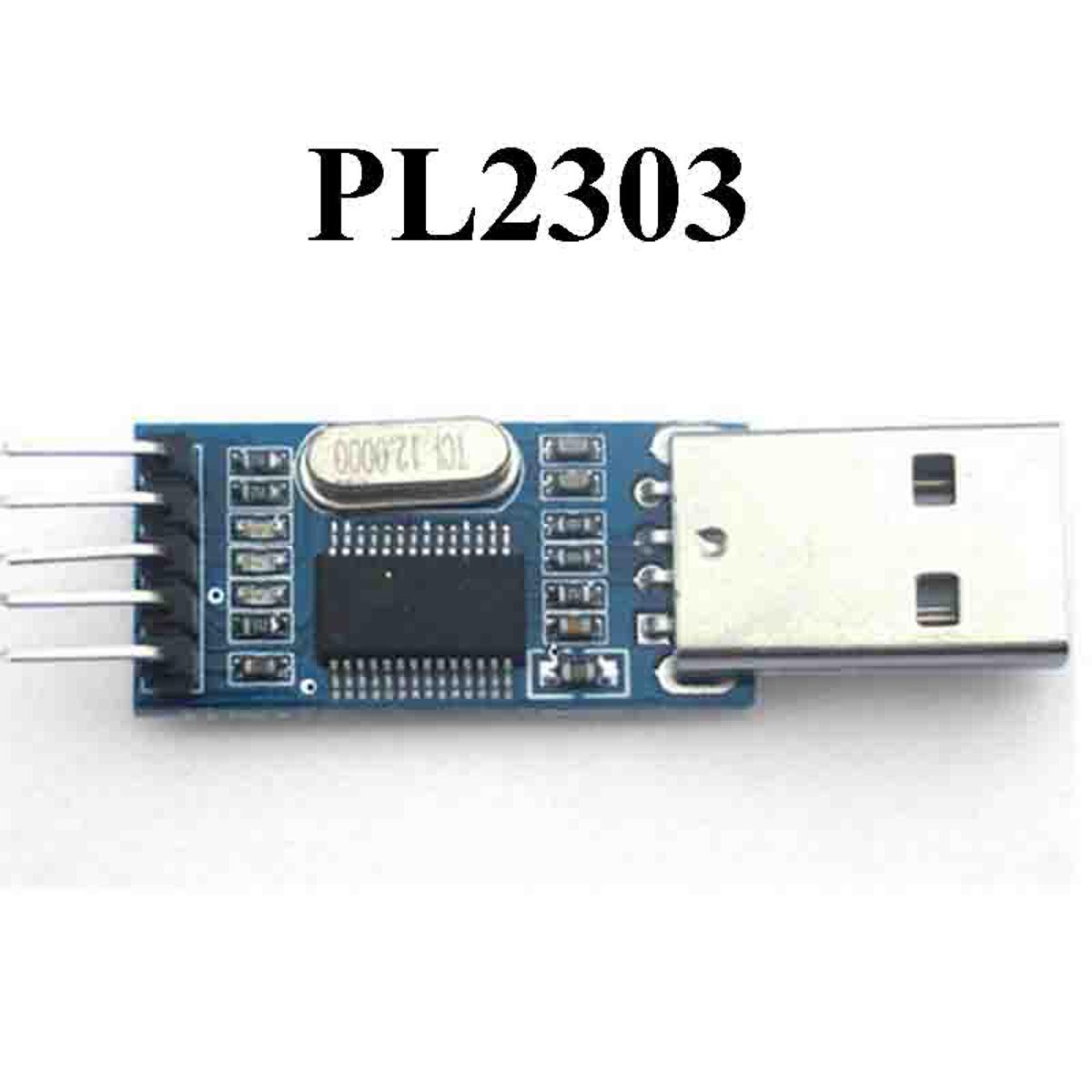

5Pin USB PL2303 To TTL Converter RS232 5 Pin Leads 3.3V 5V Adapters Module PL 2303 Board For Arduino Uno For Arduino Uno projects DIY

Category: Building Materials
SKU: UDBD04426
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 88
Tk 104
Tk 104
15% OFF
0 review(s)
  • USB to TTL Serial Converter
  • USB to TTL Adapter.
  • Use this device to connect your PC to a serial (TTL level) device.
  • Uses CP 2102 chipset and has a standard 0.1" pitch terminal strip to connect directly to UART or I/O pins for easy access to your MCU
  • USB specification 2.0 compliant with full-speed 12Mbps.
  • Standard USB type A male and TTL 6pin connector.
  • 6 pins for 3.3V, RST, TXD, RXD, GND & 5V.
  • All handshaking and modem interface signals.
  • Baud rates: 300 bps to 1.5 Mbps.
  • Byte receive buffer; 640 byte transmit buffer.
  • Hardware or X-On/X-Off handshaking supported.
  • Event character support Line break transmission.
  • USB suspend states supported via SUSPEND pins.
  • Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40.
  • Size: 42mm X 15mm (approx) .
  • Weight: 4g (approx).
  • The USB side must be connected to PC or Mac. Other USB devices like a digital camera, scanner and printer is not allowed. Package Includes : 1 X USB to TTL Converter. 1 X Standard 4 pin 0.1" pitch female to female cable. 1 X Driver CD Micro SATA Cables PN # USB-TTL-ADPT
  • Not recommended for arduino pro mini programming.

Call For Order : 09613-800800

Description: PL2303 USB to TTL Converter

USB to UART Converter is a very useful tool for Embedded Systems. If you haven’t one, please try to buy it. It will definitely boost development speed of projects which uses UART modules like interfacing GSM, GPS, Bluetooth, Wi-Fi … By using it we can easily study these modules by sending data directly from your PC and analyzing the received data in your computer display without programming a microcontroller. Here we will use PL2303, one of the most popular USB to UART Converter manufactured by Prolific Technology Inc.
