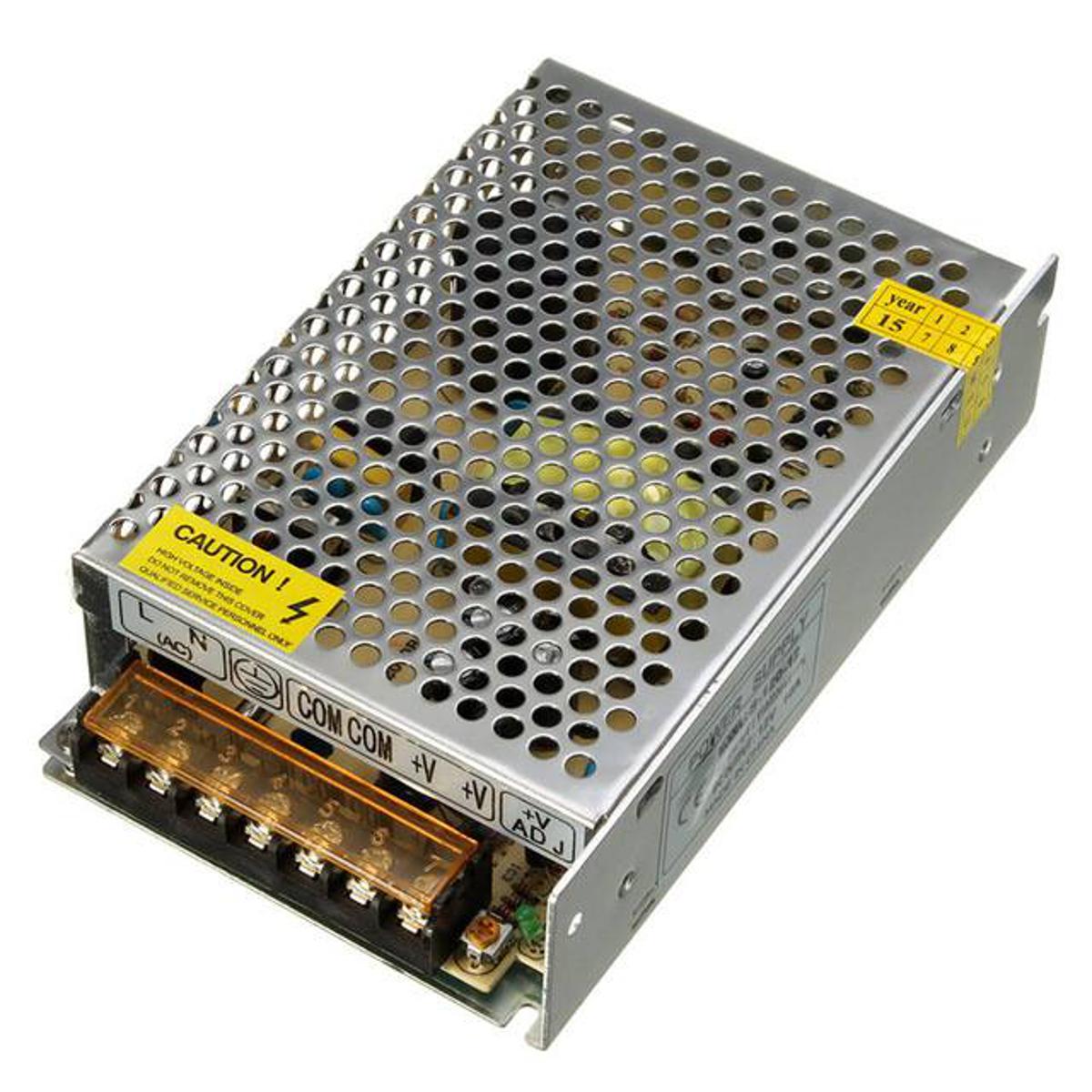

Description: SMPS Power Supply AC-DC 5V 10A

Features:

• Universal AC input / Full range
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• LED indicator for power on
• 100% full load burn-in test
• All using 105°C long life electrolytic capacitors
• Withstand 300VAC surge input for 5 second
• High operating temperature up to 70°C
• Withstand 5G vibration test
• No load power consumption less than 0.5W
• High efficiency, long life and high reliability

Specification:

• MODEL：RS-25-5
• OUTPUT DC VOLTAGE : 5V
• RATED CURRENT : 10A
• CURRENT RANGE : 0 ~ 10A
• RATED POWER : 25W
• RIPPLE & NOISE (max.): 80mVp-p
• VOLTAGE ADJ. RANGE: 4.75 ~ 5.5V
• VOLTAGE TOLERANCE: ±2.0%
• LINE REGULATION : ±0.5%
• LOAD REGULATION : ±1.0%
• SETUP, RISE TIME : 1800ms, 23ms/230VAC; 4000ms, 30ms/115VAC at full load
• HOLD UP TIME (Typ.) : 80ms/230VAC; 14ms/115VAC at full load

INPUT

• WORKING TEMP : -20 ~ +70°C (Refer to derating curve)
• WORKING HUMIDITY : 20 ~ 90% RH non-condensing
• STORAGE TEMP., HUMIDITY : -40 ~ +85°C , 10 ~ 95% RH
• TEMP. COEFFICIENT : ±0.03%/°C (0~50°C)
• VIBRATION : 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

Package Include:

• 1 x SMPS Power Supply AC-DC 5V 10A

• Universal AC input / Full range
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• LED indicator for power on
• 100% full load burn-in test
• All using 105°C long life electrolytic capacitors
• Withstand 300VAC surge input for 5 second
• High operating temperature up to 70°C
• Withstand 5G vibration test
• No load power consumption less than 0.5W
• High efficiency, long life and high reliability
