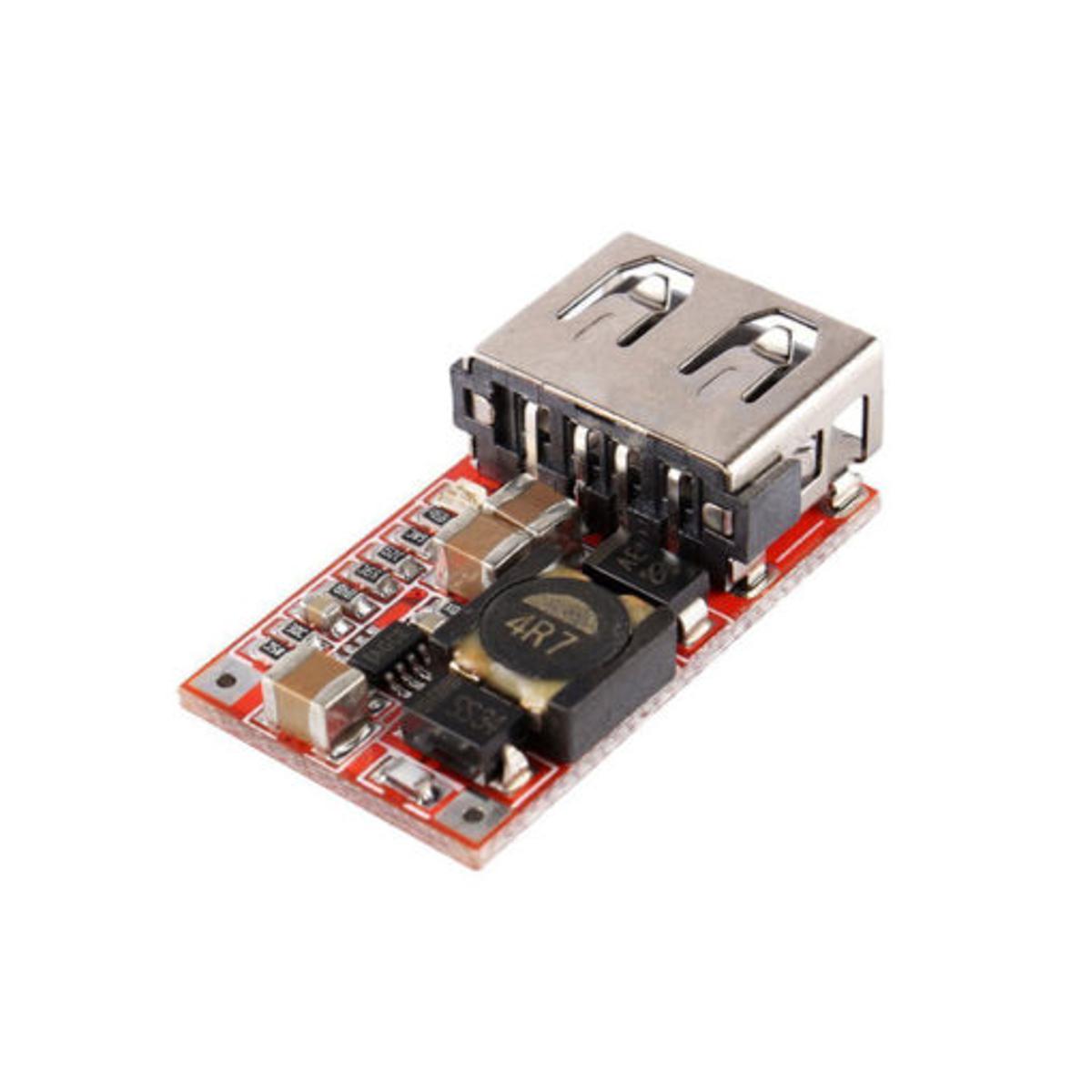

Descriptions: 6~24V 24V 12V to 5V USB Step Down Module DC-DC Converter Phone Charger

This step-down (buck) power supply module converts its input voltage of 6V to 24V to a fixed 5V USB output at up to 3A continuous output current.

It is ideal for providing a regulated 5V USB output to charge your iPhone, Android phone, tablet or any other USB-powered device. It can be powered from a 6V, 9V, 12V or 24V battery, solar panel, wind generator or other power source.

Features:

• Input voltage: DC 6-24V Output voltage: 5.1-5.2V
• Output current: 3A MAX (please enhance heat dissipation when full load using), the actual test result input 12V output current 2A do not need to enhance heat dissipation.
• Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)
• Switch frequency: 500KHz
• Output ripple: 10mV around (12V to 5V3A) 20M bandwidth
• Output indicator: Output voltage indicator is red
• Operating temperature: Industrial grade (-40 ℃ to + 85 ℃) (the higher the ambient temperature, the lower the output power)
• Output over-voltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection.
• Full load temperature: 30 ℃
• Static current: 0.85 mA
• Load regulation: ± 1%
• Voltage Regulation: ± 0.5%
• Dynamic response speed: 5% 200uS
• Output short circuit protection: Yes, but please do not short circuit for a long time
• Input reverse polarity protection: Yes, there is reverse polarity protection diode
• Output mode: USB
• Small size, 26.4 (L) * 15 (W) * 7.4 (H) mm
• Input with reverse polarity protection diode, will not damage when input connect incorrect
• Ultra-low static current, 0.85 mA only.
• Output voltage indicator (red)
• Dimensions: 26.4 (L) * 15 (W) * 7.4 (H) mm

Package Included:

• 1 X DC-DC Buck step down Converter 6-24V 12V/24V to 5V 3A.

• MPS MP2307DN buck regulator IC
• 4.75 – 23VDC input voltage
• 1.0 – 17VDC selectable output voltage
• 3A surge current, 1.8A continuous rated current
• Maximum conversion efficiency of 95% (5Vin, 3.3Vout ~200mA output)0kHz switching frequency
• 30mV no-load output ripple
• 17x11x3.8mm
