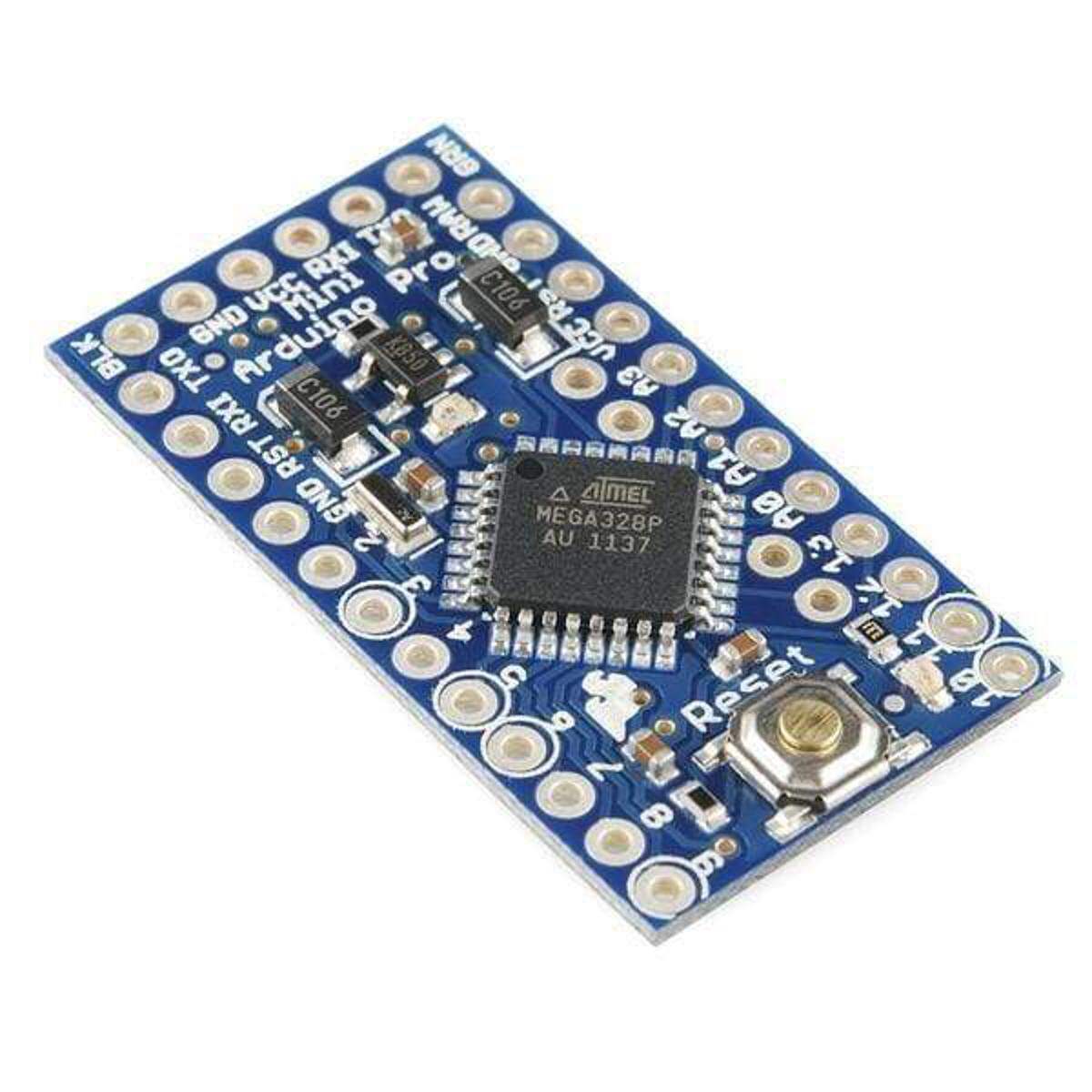

Description: Arduino Pro Mini ATmega328-5V 16Mhz

The 5V Pro Mini (Arduino Pro Mini Compatible) is a microcontroller board based on the ATmega328. It is a 5V DF duino running the 16MHz bootloader (select 'Arduino Duemilanove w/ 328' within the Arduino software). It is an advance version of offical Arduino Pro Mini. The Pro mini has 8 analog inputs compared with offical 6. The rest bits are exactly the same. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or Pro Mini breakout board to provide USB power and communication to the board. The Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.

We recommand that you choose one of following items to program and supply power for your Mini pro board.

Specification:

DC input 5V up to 8V(power supply from RAW pin)
DC input 5v(from VCC pin)
Bootloader: Arduino Pro/Pro Mini (5V, 16Mhz) w/ Atmega328
5V regulator
Max 150mA output
ATmega328 running at 16MHz with external resonator (0.5% tolerance)
Low-voltage board needs no interfacing circuitry for popular 3.3V devices and modules (GPS, accelerometers, sensors, etc)
USB connection off board
Supports auto-reset
Over current protected
Reverse polarity protected
On board Power and Status LEDs
Size:0.7x1.3" (18x33mm)
The dimensions of the Pro Mini PCB are approximately 0.7" x 1.3".

Communication:

The Arduino Pro Mini has a number of facilities for communicating with a computer, another Arduino, or other microcontrollers. The ATmega328 provides UART TTL serial communication, which is available on digital pins 0 (RX) and 1 (TX). The Arduino software includes a serial monitor which allows simple textual data to be sent to and from the Arduino board via a USB connection.ASoftware Serial libraryallows for serial communication on any of the Pro Mini's digital pins.The ATmega328 also supports I2C (TWI) and SPI communication. The Arduino software includes a Wire library to simplify use of the I2C bus; see thereferencefor details. To use the SPI communication, please see the ATmega328 datasheet.

Programming:

The Arduino Pro Mini can be programmed with the Arduino softwaredownload. For details, see thereferenceandtutorials.The ATmega328 on the Arduino Pro Mini comes preburned with abootloaderthat allows you to upload new code to it without the use of an external hardware programmer. It communicates using the original STK500 protocolreference,C header files.You can also bypass the bootloader and program the ATmega328 with an external programmer; seethese instructionsfor details.

Package Include:

1 x Arduino Pro Mini ATmega328-5V 16Mhz
