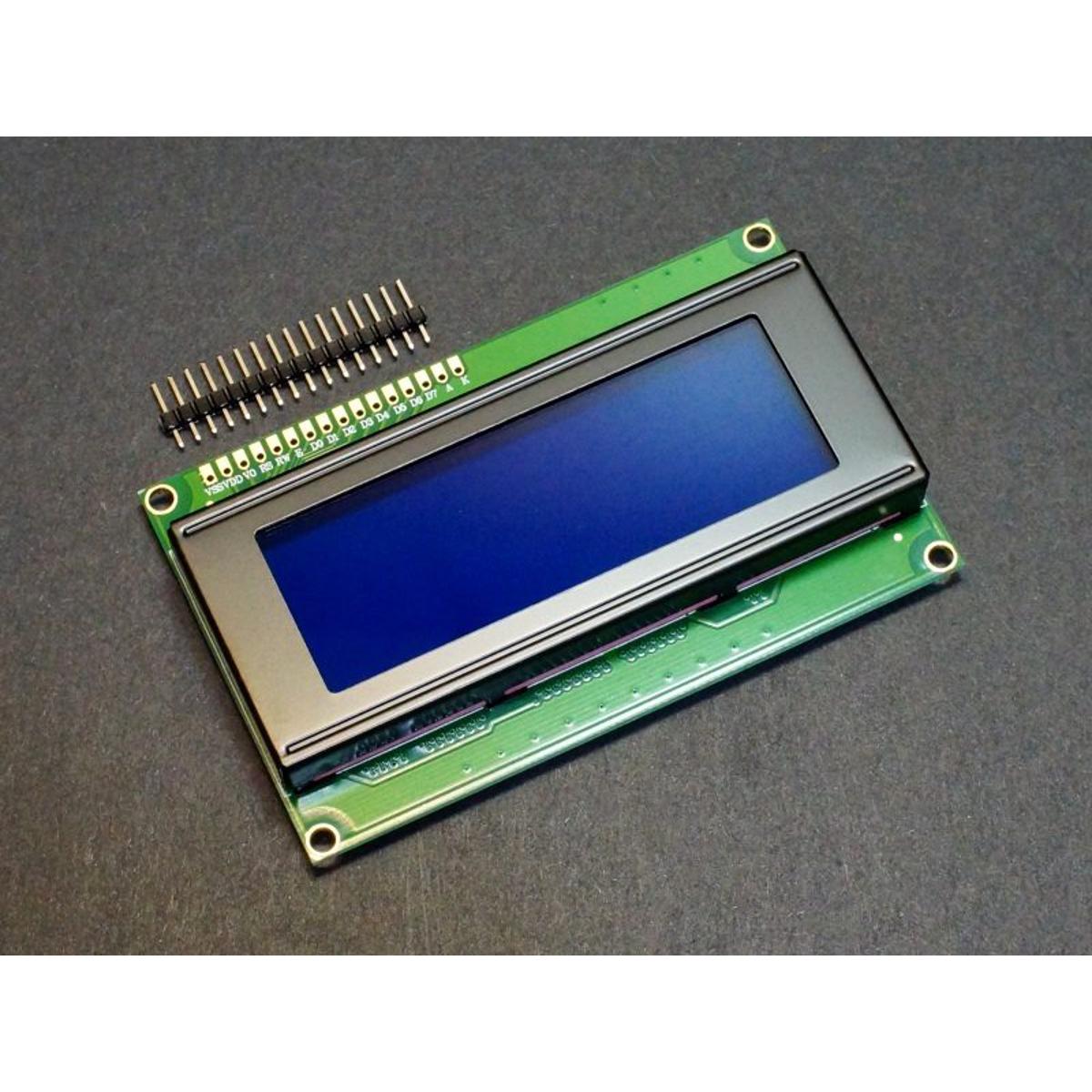

Picture of 5V LCD Display LCD2004 2004 20x04 DC5V LCD Display Monitor Character Blue Backlight Screen LCD 2004 IIC I2C For Arduino LCD Display Electrical Circuitry & Parts
Picture of 5V LCD Display LCD2004 2004 20x04 DC5V LCD Display Monitor Character Blue Backlight Screen LCD 2004 IIC I2C For Arduino LCD Display Electrical Circuitry & Parts

5V LCD Display LCD2004 2004 20x04 DC5V LCD Display Monitor Character Blue Backlight Screen LCD 2004 IIC I2C For Arduino LCD Display Electrical Circuitry & Parts

Category: Building Materials
SKU: UDBD03855
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 486
Tk 572
Tk 572
15% OFF
0 review(s)
  • I2C Address: 0x20-0x27(0x20 default)
  • Number of Characters: 20 characters x 4 Lines
  • Blue LED backlight with white char color
  • Adjustable contrast
  • Supply voltage: 5V(via Pin)  3.3V(via IDC10)
  • Interface: IIC/I2C/TWI x1,IDC10 x2
  • View direction: Wide viewing angle
  • Dot size: 0.55 x 0.55 mm
  • Dot pitch: 0.60 x 0.60 mm
  • Character size: 2.96 x 4.75 mm
  • Character pitch: 3.55 x 5.35 mm
  • Size: 98x60x24mm

Call For Order : 09613-800800

Description: LCD2004 LCD Display Monitor 2004 20×4 5V Character Blue Backlight Screen LCD 2004 IIC I2C

5V LCD Display LCD2004 2004 20×04 DC5V LCD Display Monitor Character Blue Backlight Screen LCD 2004 IIC I2C For Arduino LCD Display

I2C/IIC LCD2004 module compatible with Gadgeteer is a cool lcd display with a high speed I2C serial bus . With the limited pin resources, your project may be out of resources using normal LCD shield. The LCD display is a 4×20 character STN white display with a blue LED backlight.
With this I2C interface LCD module, you only need 2 lines (I2C) to display the information. If you already have I2C devices in your project, this LCD module actually cost no more resources at all. Fantastic for Arduino based project.
This board is able to be powered by 5V or 3.3V which make it compatible with both Gadgeteer, Arduino DUE 3.3V system and standard Arduino UNO/Mega 5V system

Specification:

  • I2C Address: 0x20-0x27(0x20 default)
  • Number of Characters: 20 characters x 4 Lines
  • Blue LED backlight with white char color
  • Adjustable contrast
  • Supply voltage: 5V(via Pin) 3.3V(via IDC10)
  • Interface: IIC/I2C/TWI x1,IDC10 x2
  • View direction: Wide viewing angle
  • Dot size: 0.55 x 0.55 mm
  • Dot pitch: 0.60 x 0.60 mm
  • Character size: 2.96 x 4.75 mm
  • Character pitch: 3.55 x 5.35 mm
  • Size: 98x60x24mm

Characteristics:

  • A new high quality 4 line 20 character LCD module
  • Not only do you set the Selector switch on the Contrast Control knob
  • It also has an IIC communication interface and backlight.
  • For Arduino beginners, not for the heavy and complex LCD driver circuit connection and a headache, the real importance of this LCD module will simplify the circuit, this module directly on the Arduino V5.0 Sensor board expansion board of the sensor can IIC device interface, GM 4P sensor connection cable, Programmed through the Arduino controller, you can easily identify the lemma, the sensor data records

Package includes:

  • 1 x LCD2004 LCD Display Monitor 2004 20×4 5V Character Blue Backlight Screen LCD 2004 IIC I2C For Arduino LCD Display





  • I2C Address: 0x20-0x27(0x20 default)
  • Number of Characters: 20 characters x 4 Lines
  • Blue LED backlight with white char color
  • Adjustable contrast
  • Supply voltage: 5V(via Pin)  3.3V(via IDC10)
  • Interface: IIC/I2C/TWI x1,IDC10 x2
  • View direction: Wide viewing angle
  • Dot size: 0.55 x 0.55 mm
  • Dot pitch: 0.60 x 0.60 mm
  • Character size: 2.96 x 4.75 mm
  • Character pitch: 3.55 x 5.35 mm
  • Size: 98x60x24mm
