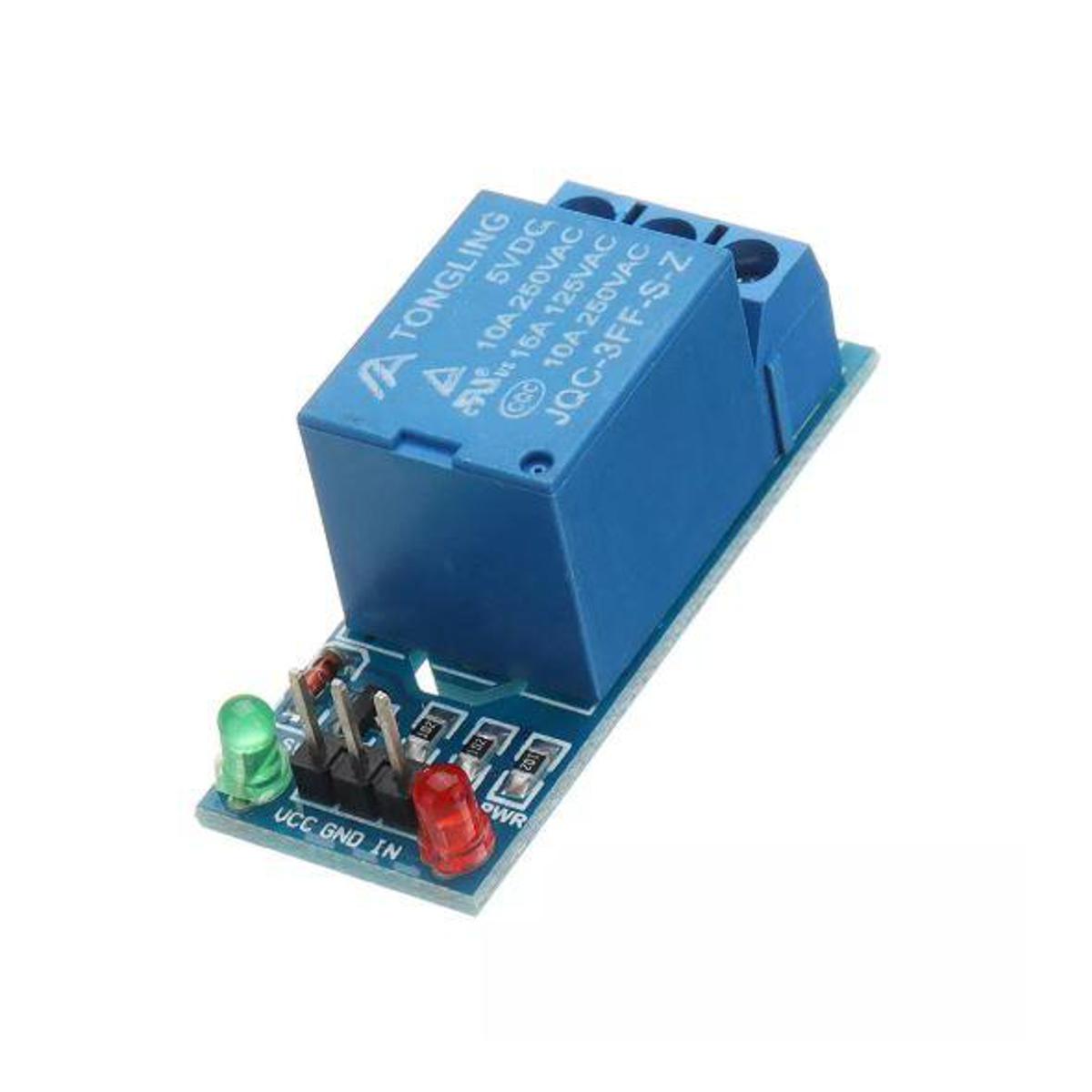

Picture of 5V Low Level Trigger One 1 Channel Relay Module Interface Board Shield DC AC 220V for Arduino PIC AVR DSP ARM MCU
Picture of 5V Low Level Trigger One 1 Channel Relay Module Interface Board Shield DC AC 220V for Arduino PIC AVR DSP ARM MCU

5V Low Level Trigger One 1 Channel Relay Module Interface Board Shield DC AC 220V for Arduino PIC AVR DSP ARM MCU

Category:
SKU: RDE01417
Seller: READY ELECTRONICS
App Coupon & 10% Extra Savings ( T&C)
Tk 145
Tk 175
Tk 175
17% OFF
0 review(s)

  • With isolation groove in control area and load area.
  • With power and relay action indication, bright when connect and go off when disconnects.
  • When there is a signal in signal input, public side and common side will breakover.
  • It can be not only used as a microcontroller development board module, but also as a home appliance control.
  • It can not only control the DC or AC signal, but the 220V AC load.
  • With a permanent open and close vents contact.
  • It is convenient to connect with blue KF301 terminal access control cable.

Call For Order : 09613-800800
  1. VCC: Power interface ,5V
  2. GND: Ground
  3. IN: Control interface .Drive Current at least 4mA
  4. COM: Control circuit ground ,Connect to GND
  5. Size: approx. 41 x 16 x 16mm/ 1.61 x 0.62 x 0.62''
  6. Weight: approx. 12g





  • With isolation groove in control area and load area.
  • With power and relay action indication, bright when connect and go off when disconnects.
  • When there is a signal in signal input, public side and common side will breakover.
  • It can be not only used as a microcontroller development board module, but also as a home appliance control.
  • It can not only control the DC or AC signal, but the 220V AC load.
  • With a permanent open and close vents contact.
  • It is convenient to connect with blue KF301 terminal access control cable.
