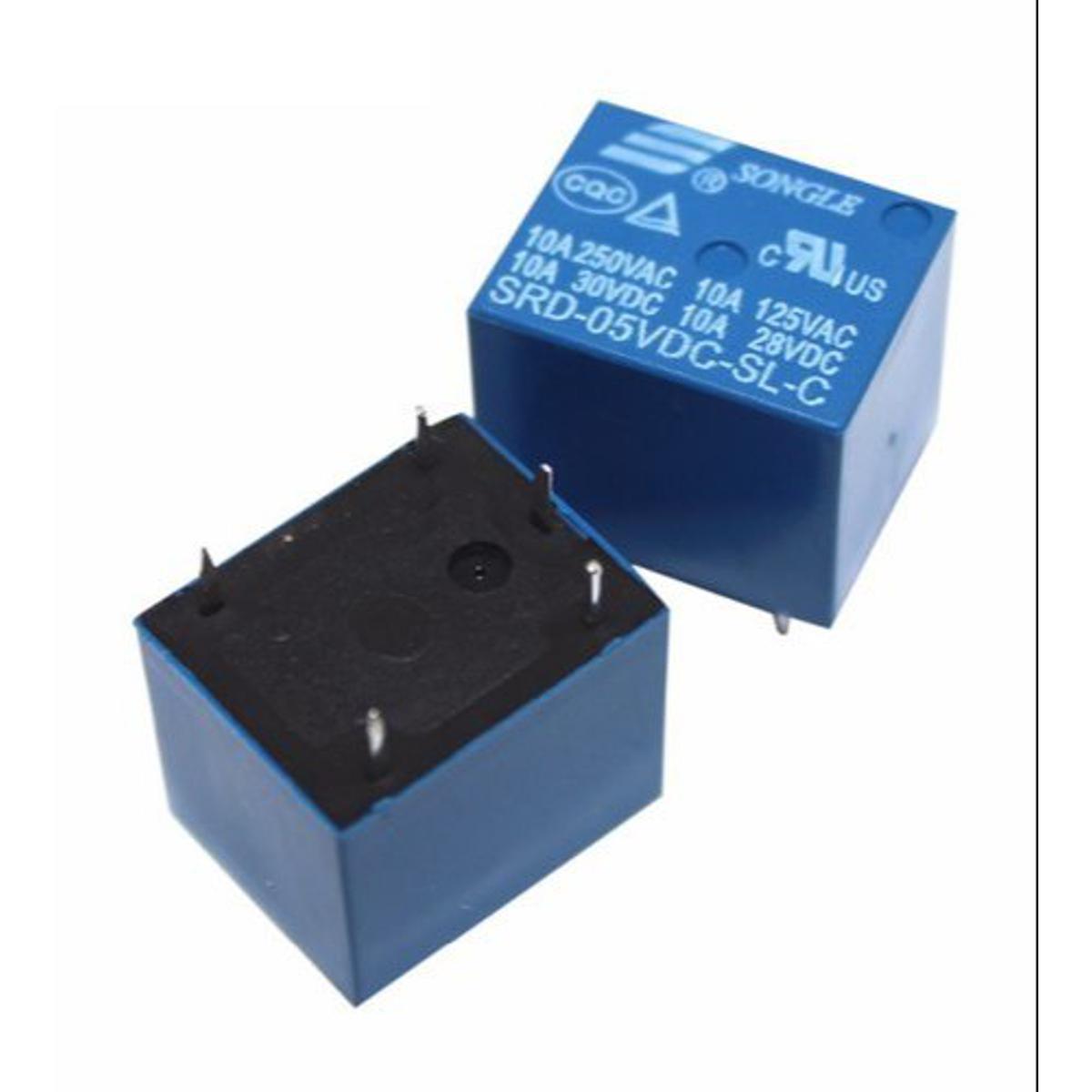

Description: 5V DC SPDT Power Relay 10A

This relay can be used to switch High power(whether AC or DC) to a load by driving the relay coil with a far much lower voltage and current. When Current flows through the relay coil, It makes or breaks its contacts through electromagnetic induction. A relay contacts comprises of the Normally-Open (NO) and Normally Closed (NC) contacts. These refer to the state of the relay contacts when the relay coil is not energized. When driving a relay coil from a digital output or transistor, always connect a diode in reverse bias across the coil of the relay in other to avoid the resulting back-emf that appears across the coil of the relay when its turned off from damaging the digital device or transistor.

Specifications:

• Product Name :Power Relay;
• Model :SRD-5VDC-SL-C;
• Mounting Form :PCB
• Rated Load :10A/250VAC 10A/125VAC,10A/30VDC 10A/28VDC;
• Pin Number :5
• Contact :SPDT;
• Size (Approx.) :19 x 15 x 15 mm / 0.75" x 0.6" x 0.6" (L*W*H)
• Main Color :Blue;
• Main Material :Plastic, Metal
• Weight : 9g

Features:

• Switching capacity available by 10A in spite of small size design for high density P.C. board mounting technique.
• UL,CUL,TUV recognized.
• Selection of plastic material for high temperature and better chemical solution performance.
• Sealed types available.
• Simple relay magnetic circuit to meet low cost of mass production.

Application:

Domestic appliance, office machine, audio, equipment, automobile, etc.( Remote control TV receiver, monitor display, audio equipment high rushing current use application.)

• Product Name :Power Relay;
• Model :SRD-5VDC-SL-C;
• Mounting Form :PCB
• Rated Load :10A/250VAC 10A/125VAC,10A/30VDC 10A/28VDC;
• Pin Number :5
• Contact :SPDT;
• Size (Approx.) :19 x 15 x 15 mm / 0.75" x 0.6" x 0.6" (L*W*H)
• Main Color :Blue;
• Main Material :Plastic, Metal
• Weight : 9g
