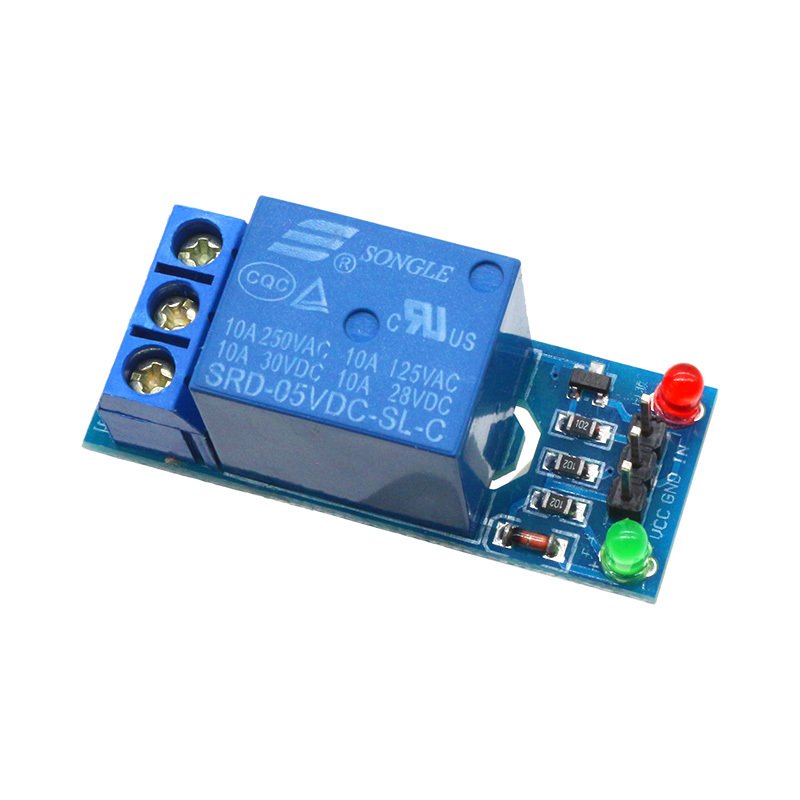

Picture of 5V Relay Module DC 5V Single Channel Trigger Relay Control Module With Screw Terminal For Arduino One Channel DC5V Relay Circuit Board
Picture of 5V Relay Module DC 5V Single Channel Trigger Relay Control Module With Screw Terminal For Arduino One Channel DC5V Relay Circuit Board

5V Relay Module DC 5V Single Channel Trigger Relay Control Module With Screw Terminal For Arduino One Channel DC5V Relay Circuit Board

Category: Electrical Accessories
SKU: GRIC821071
Seller: GREEN ELECTRONICS.
Tk 189
0 review(s)
  • Number of I/O Channels: 1
  • DC 5v Relay Use
  • Any Brand Relay Can Be use
  • Switching capacity available by 10A in spite of small size design for high density P.C. board mounting technique.
  • Control signal: TTL level
  • Max. Allowable Voltage: 250VAC/110VDC
  • Max. Allowable Power Force: From C(800VAC/240W), From A(1200VA/300W)
  • UL,CUL,TUV recognized.
  • Indication LED for Relay’s Status
  • VCC: Power interface, V
  • GND: Ground
  • IN: Control interface .Drive Current at least 4mA
  • COM: Control circuit ground ,Connect to GND
  • Single Size: approx. 44 x 6 x 6mm

Call For Order : 09613-800800

  • Number of I/O Channels: 1

  • DC 5v Relay Use

  • Any Brand Relay Can Be use

  • Switching capacity available by 10A in spite of small size design for high density P.C. board mounting technique.

  • Control signal: TTL level

  • Max. Allowable Voltage: 250VAC/110VDC

  • Max. Allowable Power Force: From C(800VAC/240W), From A(1200VA/300W)

  • UL,CUL,TUV recognized.

  • Indication LED for Relay’s Status

  • VCC: Power interface, V

  • GND: Ground

  • IN: Control interface .Drive Current at least 4mA

  • COM: Control circuit ground ,Connect to GND

  • Single Size: approx. 44 x 6 x 6mm

Warranty: 6 Months Seller Warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
