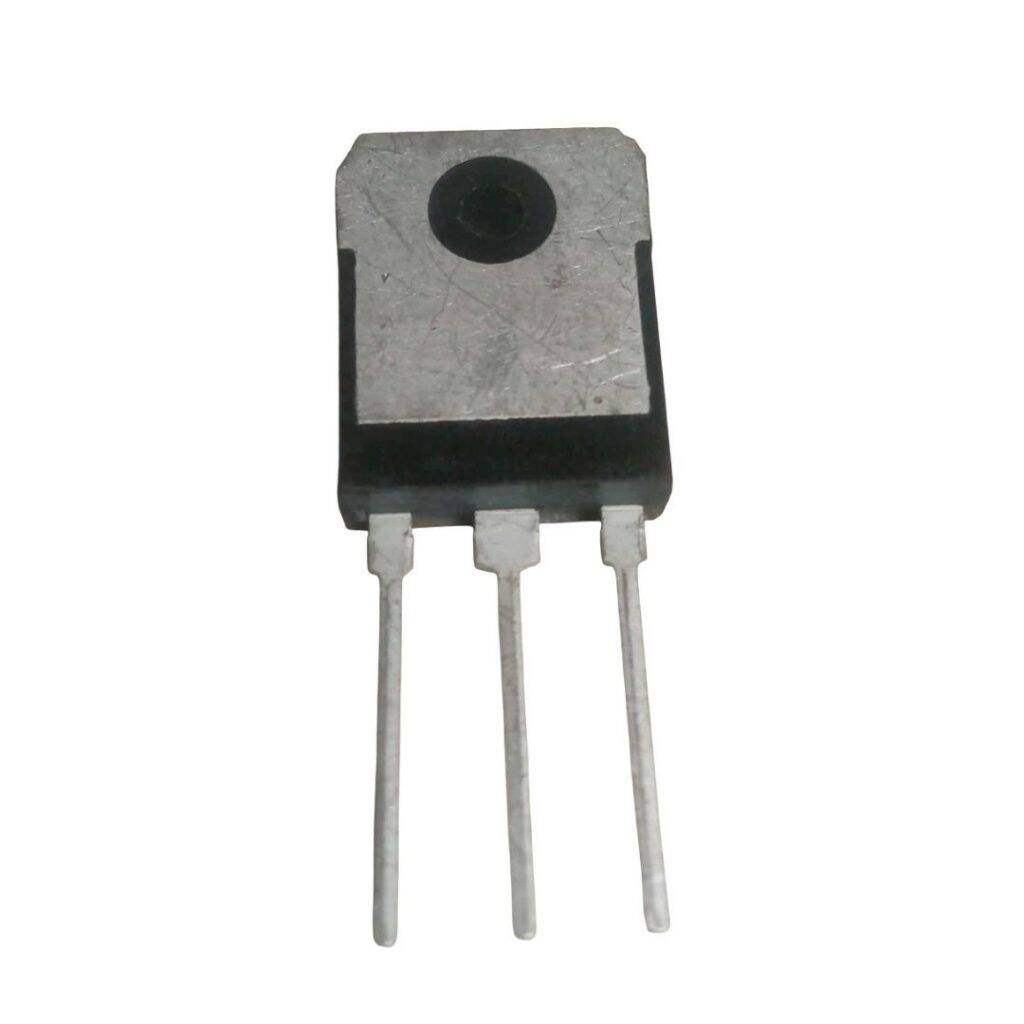

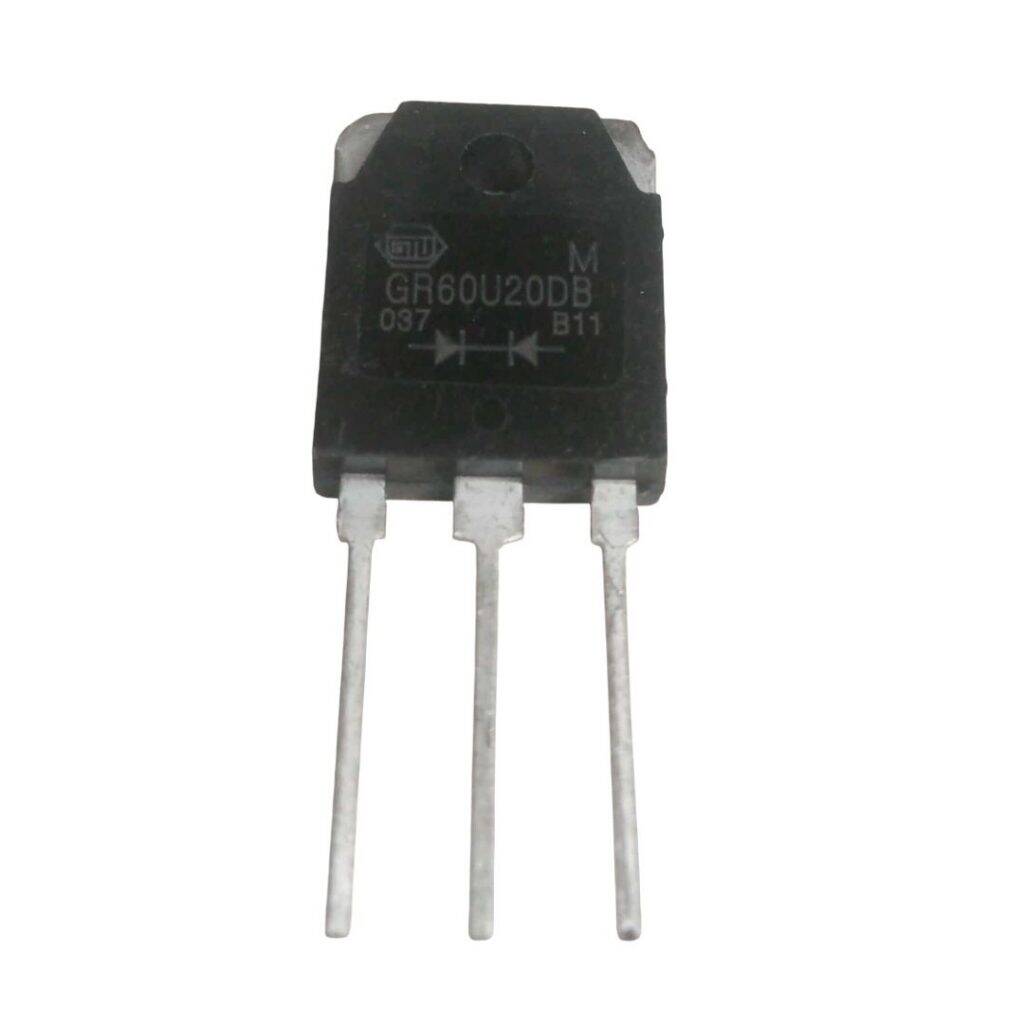

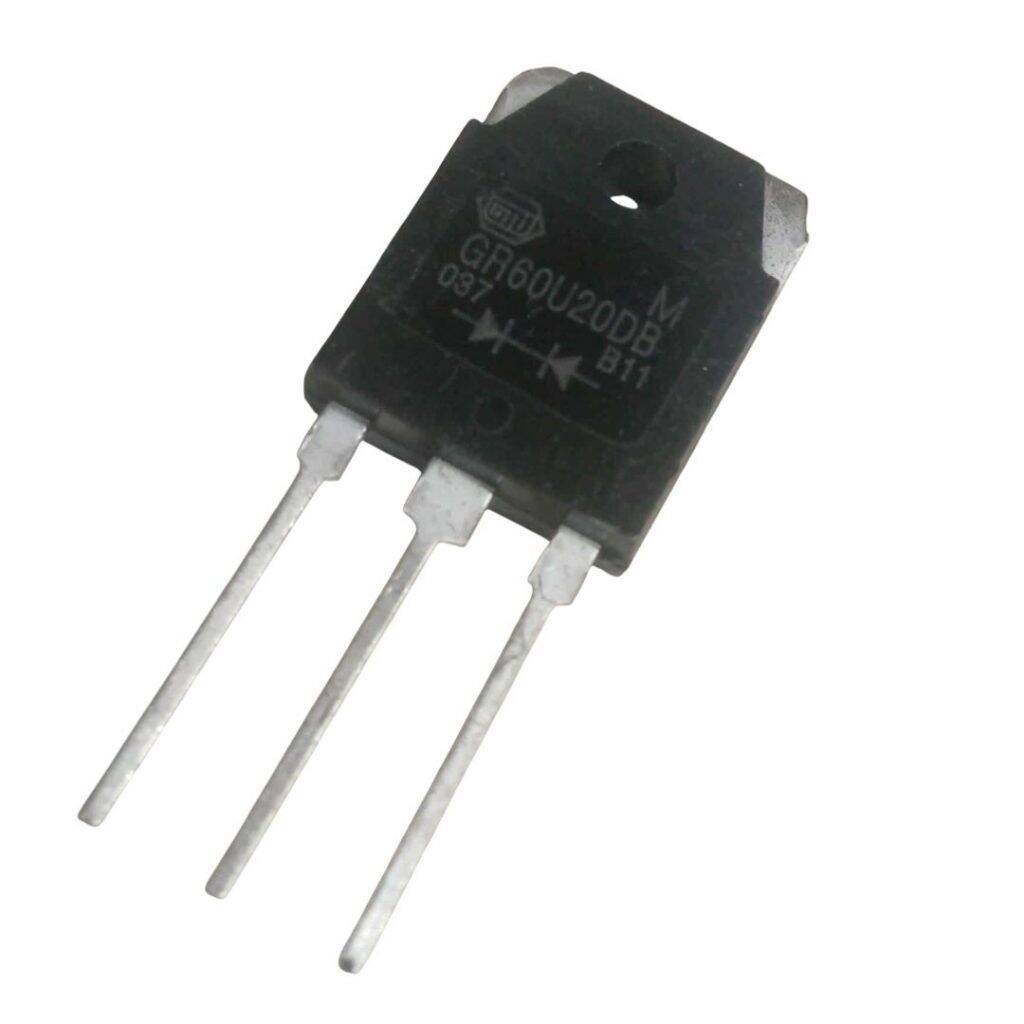

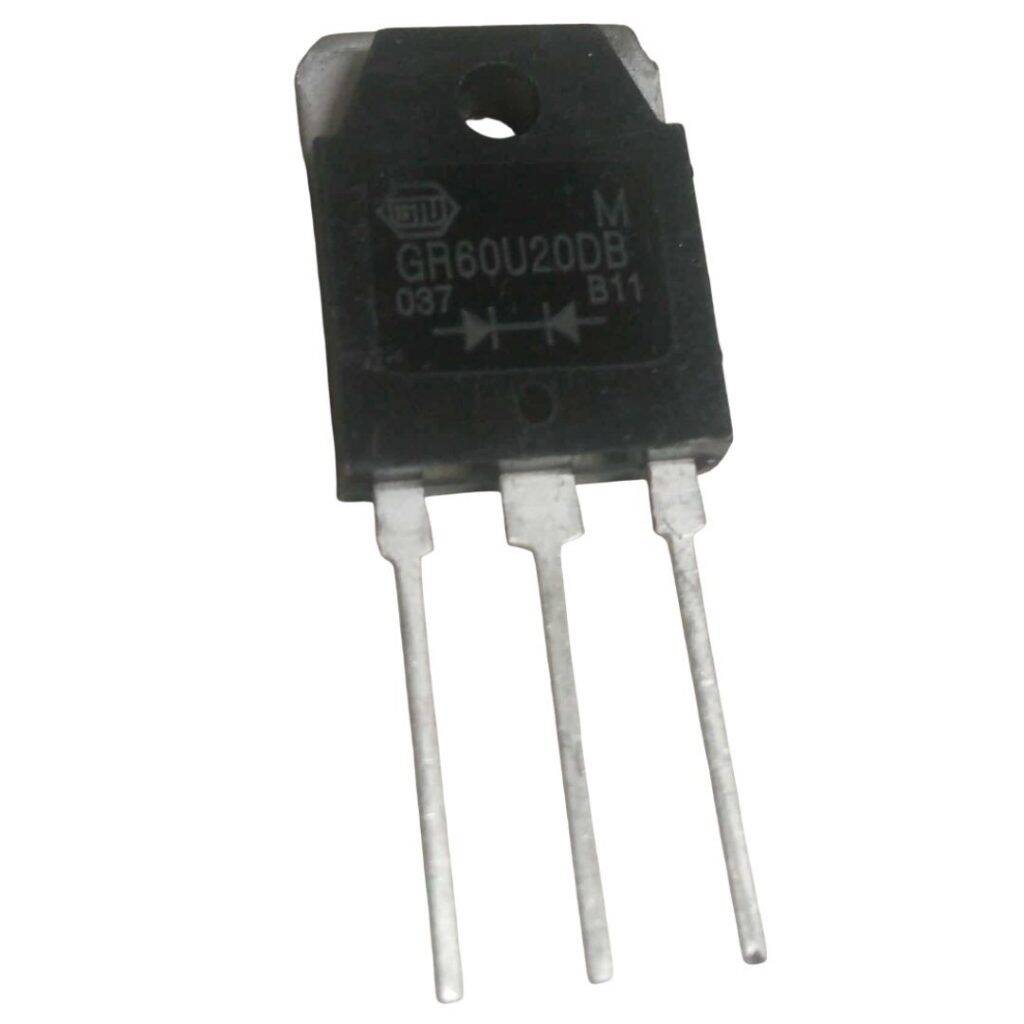

60U20 TO-3P 60A/200V Fast Recovery Diode

Description: 60U20 TO-3P 60A/200V Fast Recovery Diode

60U20 TO-3P 60A/200V Fast Recovery Diode

Key Specifications & Features:

• Maximum repetitive reverse voltage (V_RRM): ~ 200 V.
• Average rectified forward current (I_F(AV)): ~ 60 A (in a dual‑anode configuration, or ~30 A single) for the TO‑3P package class.
• Package: TO‑3P (through‑hole power package, good for heat sinking).
• Design type: Fast recovery diode (i.e., low reverse recovery time) — suitable for switching supplies, inverters, etc.
• Forward voltage drop: Typically around ~1.1 V (or similar) at rated current. For example, one listing: Vf ≈ 1.15 V at 60 A.
• Operating/Storage Temperature: e.g., −55 °C to +150 °C or even up to +175 °C in some cases.
• Surge/non‑repetitive current rating: Some listings show I_FSM (8.3 ms, single half‑sine) ~300–350 A.
• Avalanche energy rating (in some variants): e.g., E_AS ~50 mJ with L=1 mH

Package Include:

1 x 60U20 TO-3P 60A/200V Fast Recovery Diode
