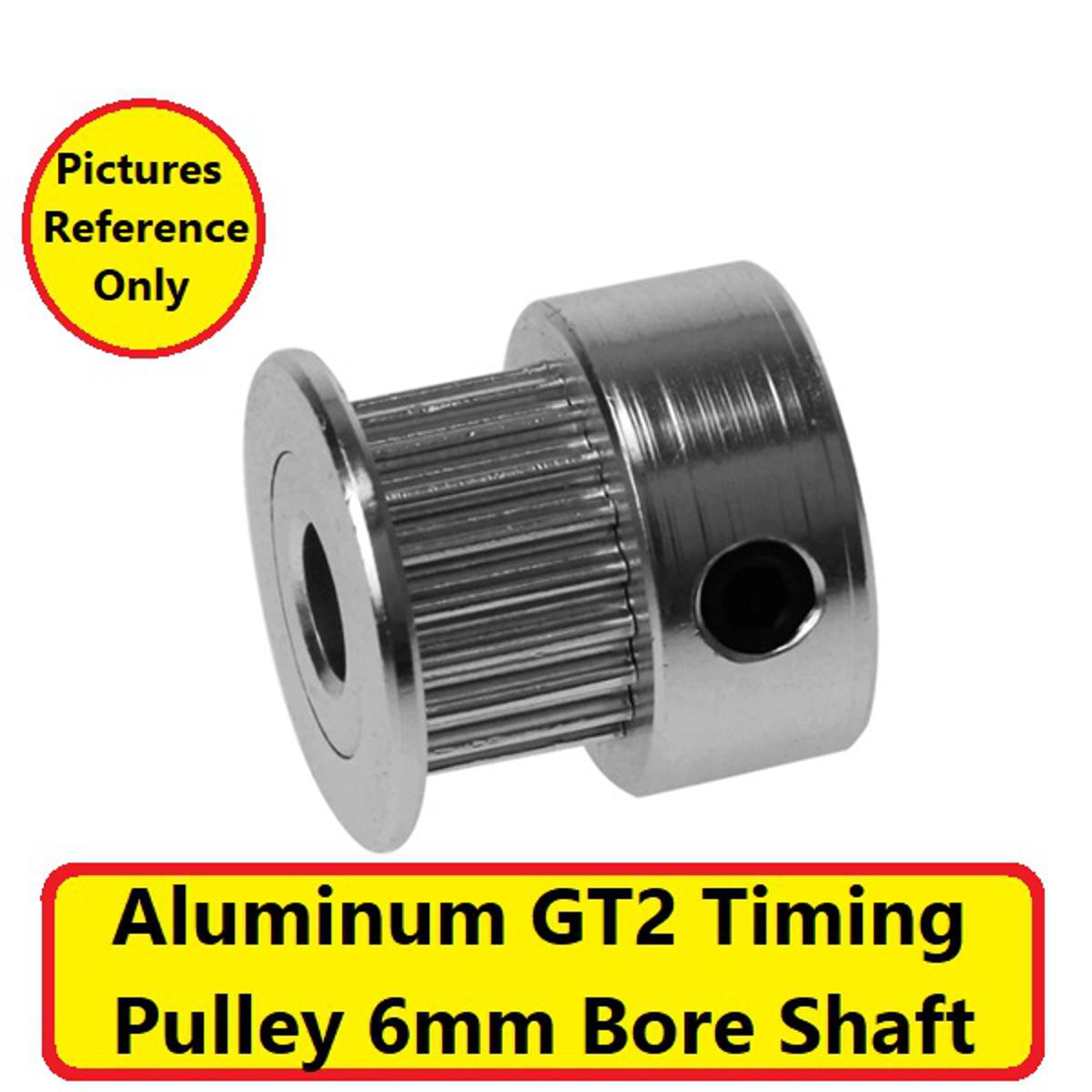

Description: Aluminum GT2 Timing Pulley 6mm Bore Shaft For CNC & 3D Printer Parts Puli Also Use For General Purpose

The GT2 pulley wheel with 20 teeth or grooves is one of the best choices for 3d printer construction. Compared with the T2.5 or MXL timing pulley, the GT2 pulley tooth profile is anti-backlash. Why? The rounded teeth of this tooth and belt are engaged together longer providing a smoother transition between teeth.

Specification:

• Products Name: GT2 Timing Pulley
• Material: Aluminum
• Color: Silver
• Tooth Number: 20
• Shape: Cylindrical Gear
• Tooth Pitch: 2mm
• Bore Diameter: 6mm
• Tooth Width: 7mm ( Very Suitable and good For 6mm Synchronous Belt )
• Tooth Profile: Spur Gear
• Outer Diameter: 16mm / 0.6″
• Inner Diameter: 8mm / 0.3″
• Weight: 15gm

Lessons for 3D printer and CNC laser machine

Package Include:

• 1 x Aluminum GT2 Timing Pulley 6mm Bore For CNC & 3D Printer Parts Puli Also Use For General Purpose

• Products Name: GT2 Timing Pulley
• Material: Aluminum
• Color: Silver
• Tooth Number: 20
• Shape: Cylindrical Gear
• Tooth Pitch: 2mm
• Bore Diameter: 6mm
• Tooth Width: 7mm ( Very Suitable and good For 6mm Synchronous Belt )
• Tooth Profile: Spur Gear
• Outer Diameter: 16mm / 0.6″
• Inner Diameter: 8mm / 0.3″
• Weight: 15gm
