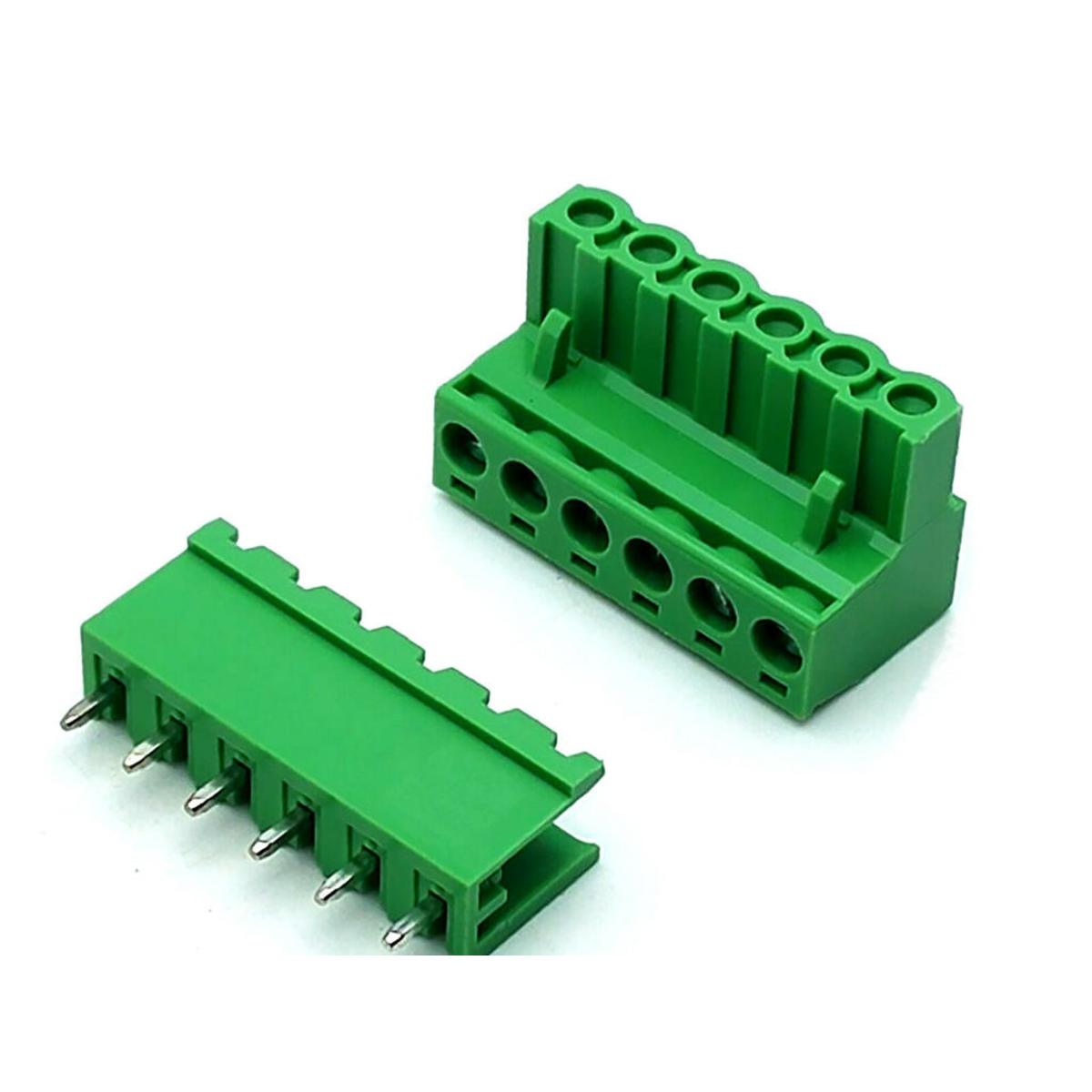

Description: 5.08mm Pitch 6Pin Male & Female Plug-in Screw Terminal Block

Characteristics:

• New brand
• Pitch: 5.08mm
• Poles: 6 Pin
• Green color

Electric:

• Nominal voltage: 300 V (250 V)
• Rated current: 15A (10A)
• Contact resistance: 20 m max.
• Insulation resistance: 5000 M / 1000 V
• Resistance voltage: 2500 V / 1 Min

Mechanics:

• Temperature range: -40 ~ + 105
• Maximum welding: + 250, 5sec
• Torque: nm (inches)
• Cable range: 22-14AWG 2.5mm²
• Resistance Length: 6.0-7.0mm

Package Include:

• 1 x 5.08mm Pitch 6Pin Male & Female Plug-in Screw Terminal Block

• Nominal voltage: 300 V (250 V)
• Rated current: 15A (10A)
• Contact resistance: 20 m max.
• Insulation resistance: 5000 M / 1000 V
• Resistance voltage: 2500 V / 1 Min
