7402 SN74HC02N 74HC02 74LS02 NOR Gate Dual In Package DIP 14 Pin IC Electrical Circuitry & Parts

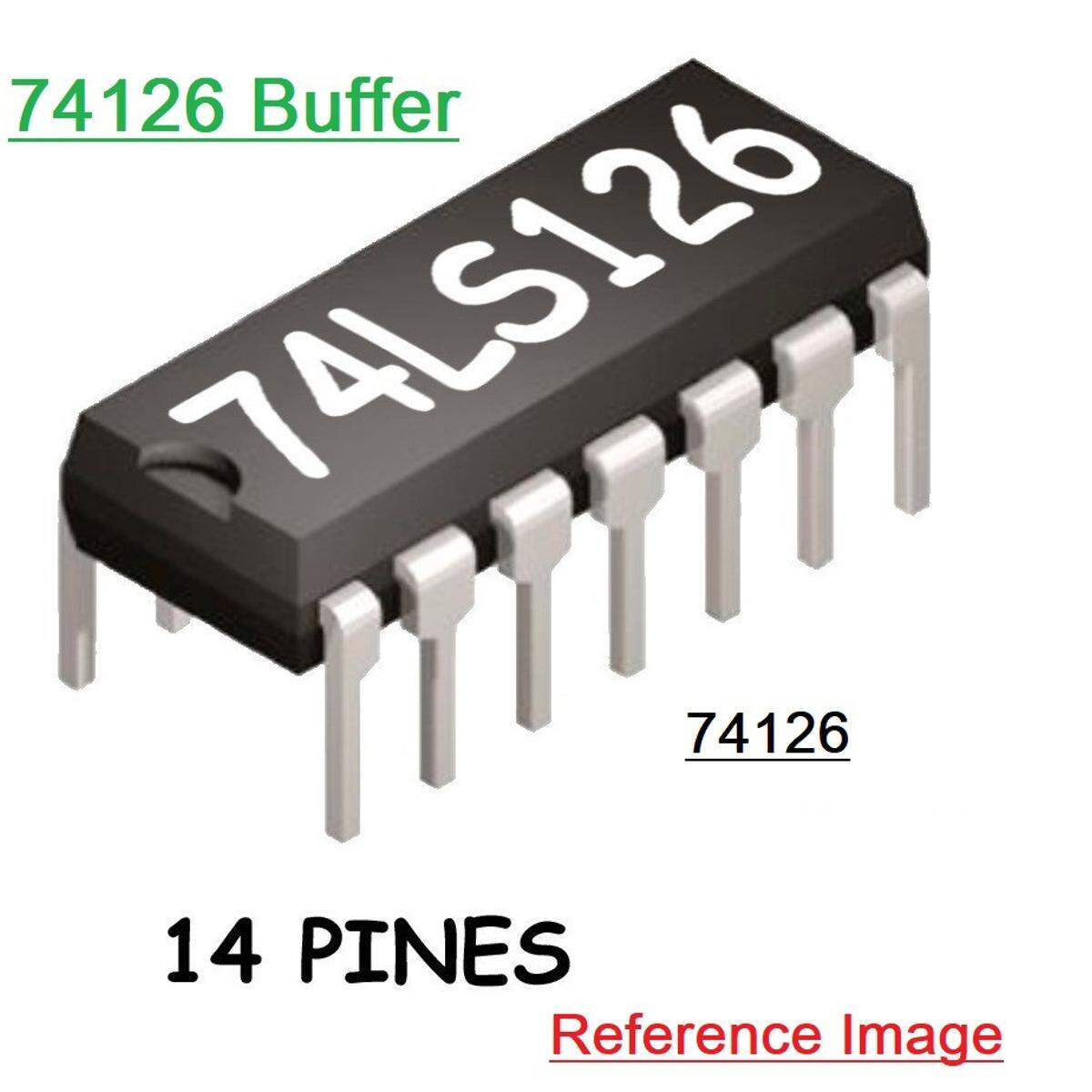

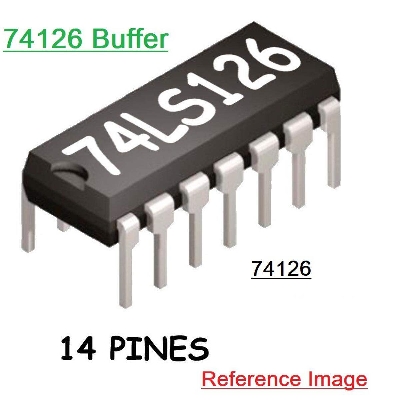

Description: 74126 Buffer

These are high speed CMOS QUAD BUS BUFFER (3-STATE) FABRICATED IN SILICON GATE C2MOS technology.They have the same high speed performance of LSTTL combined with true CMOS low power con-sumption. These devices require the same 3-STATE control input G to be taken high to make the output go into the high impedance state.All inputs are equipped with protection circuits against static discharge and transient excess voltage.

Specification:

• Supply Voltage: -0.5 to +7 V
• DC Input Voltage: -0.5 to VCC + 0.5 V
• DC Output Voltage: -0.5 to VCC + 0.5 V
• DC Input Diode Current: ± 20 mA
• DC Output Diode Current :± 20 mA
• DC Output Source Sink Current Per Output Pin: ± 25 mA
