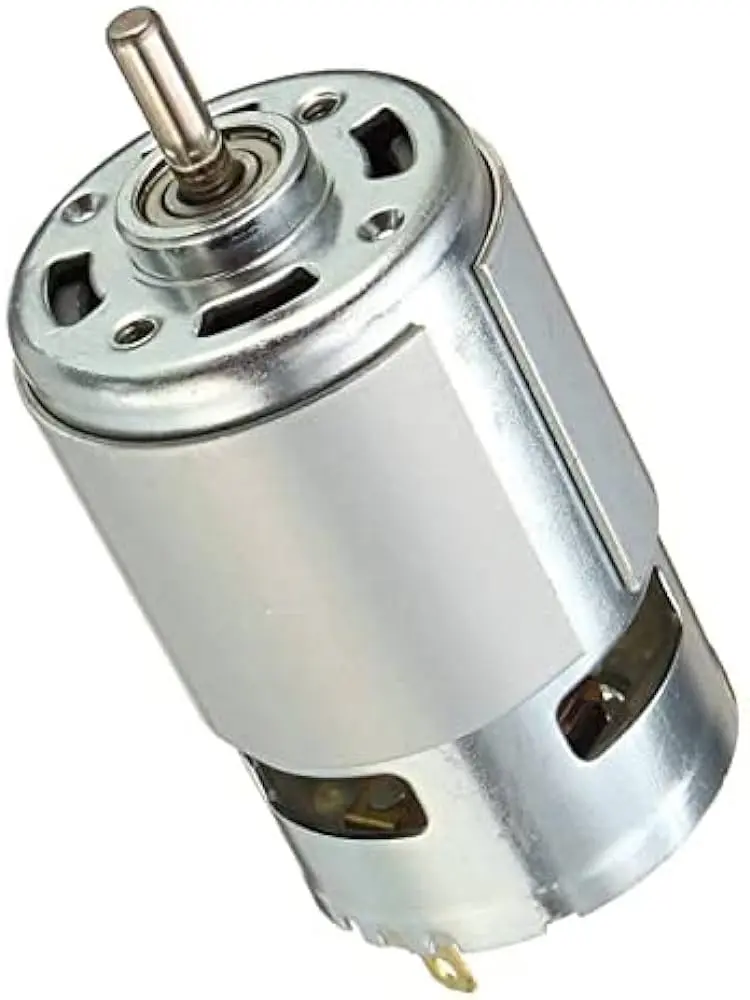

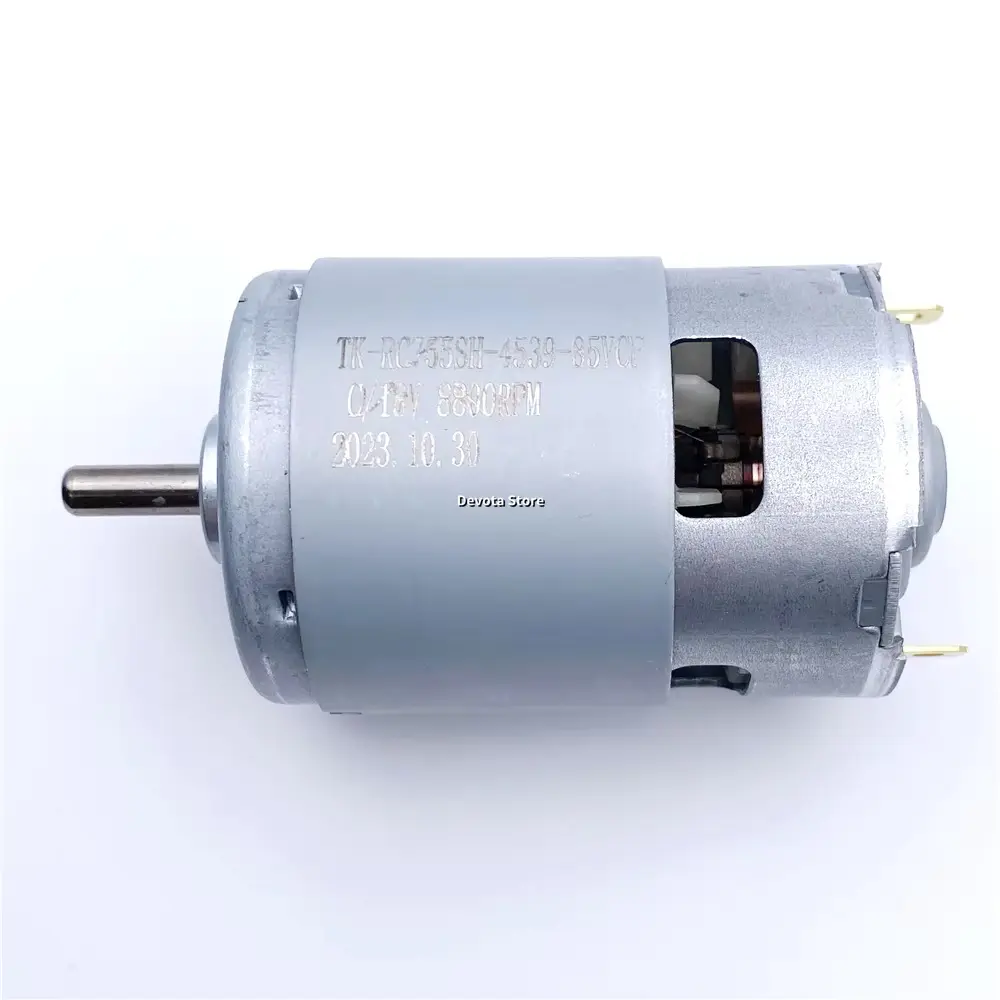

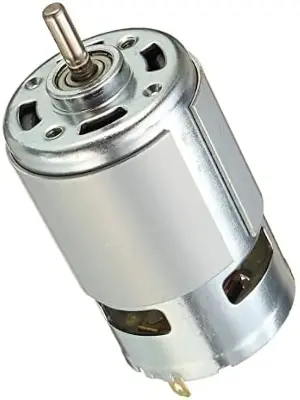

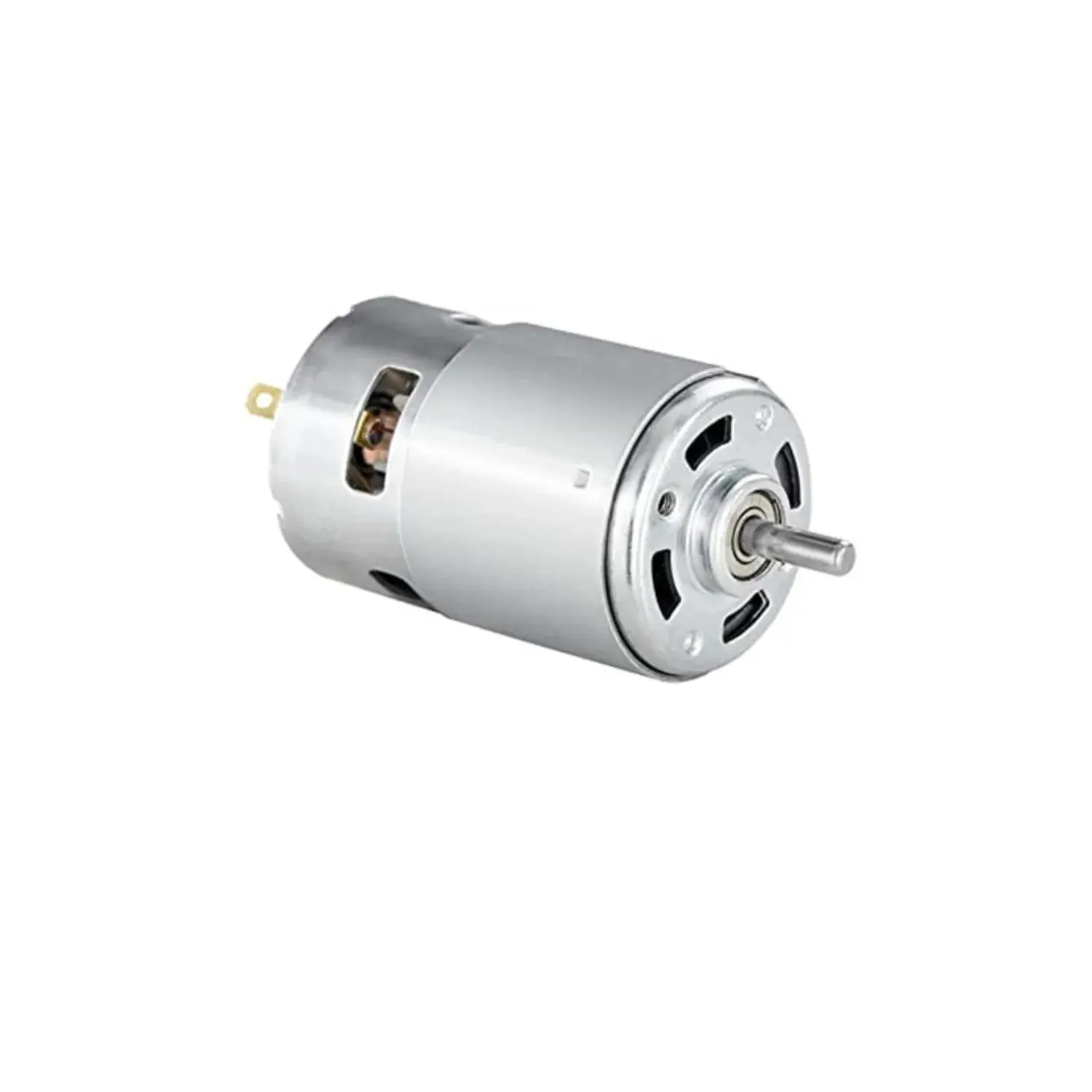

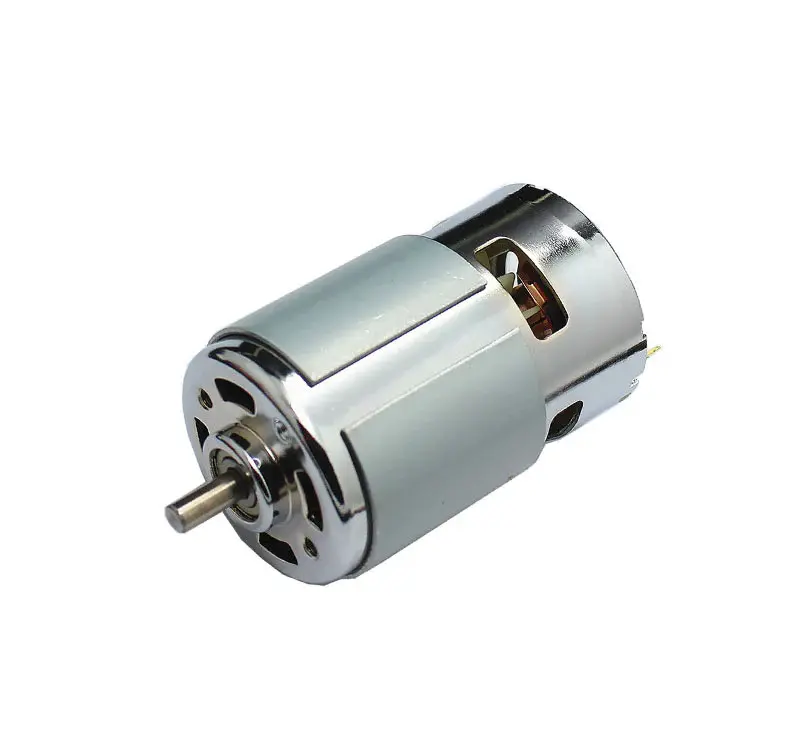

775 12V DC Motor 21,000 RPM Brushed Electric Motor with Double Bearing(Grey)

Product Description

The 775 High Speed High Torque 12V DC Motor is a powerful and efficient motor designed for various applications, including robotics, power tools, and DIY projects. Despite operating at 12V DC, this motor delivers high torque and an impressive speed of 21,000 RPM, making it a popular choice among hobbyists and professionals alike. It features ball bearings on both terminals and a built-in cooling fan, ensuring smooth operation and durability.

Specifications

• Operating Voltage: 12V DC
• No-load Current: 1A
• Stall Current: 2.6A
• No-load Speed: 21,000 RPM
• Speed with Load: 8,800 RPM

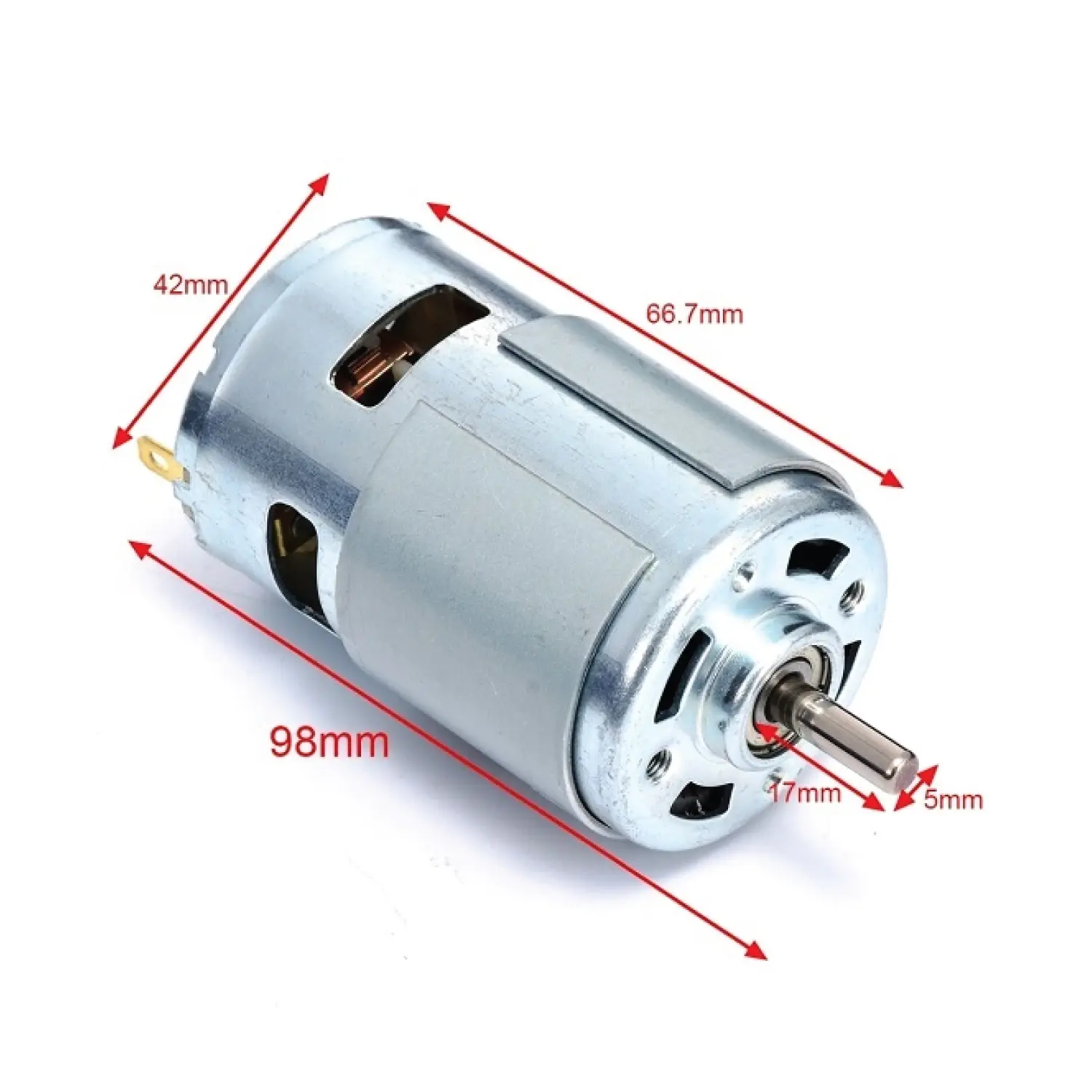

• Motor Diameter: 42mm
• Motor Length: 66.5mm
• Shaft Diameter: 5mm
• Shaft Length: 16mm
• Mounting Hole Pitch: Approx. 29mm
• Mounting Hole Diameter: M4 screw
• Bearings: Double bearing
• Weight: Approx. 350g

Due to its high torque and reliability, this motor is widely used in robotics, power tools, DC water pumps, saw machines, sanding machines, and small vehicles.
