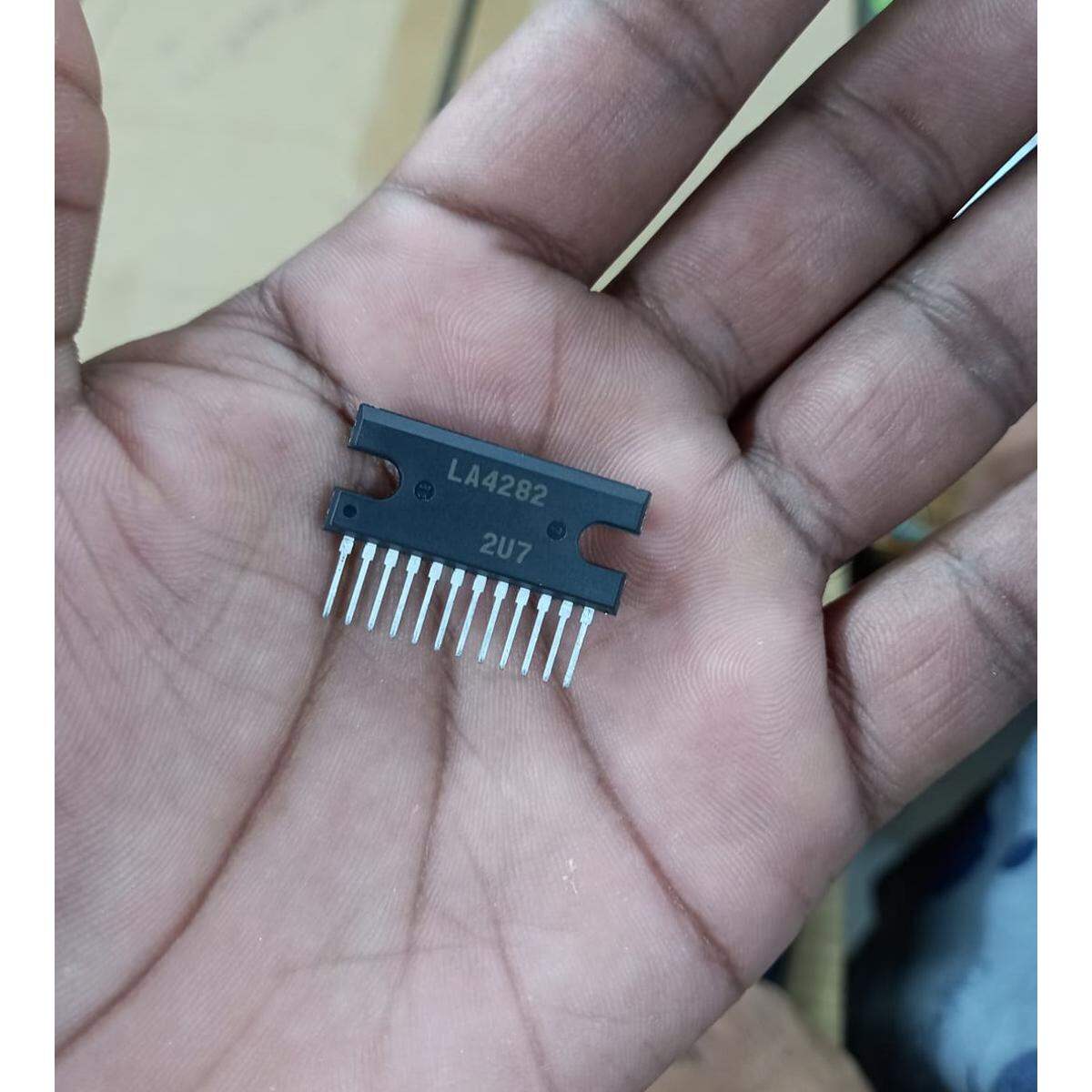

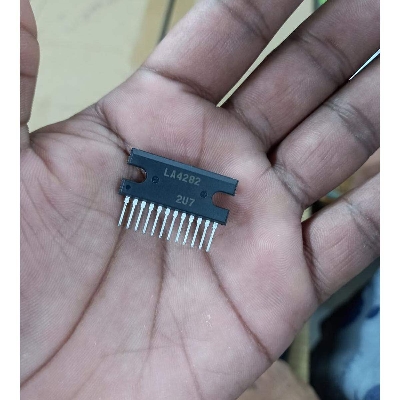

A Class Audio Power Amplifier Voltage Regulator LA4282 10W 45V ZIP 12 Pin Dual 2 Channels Stereo Audio Board Amplifier IC LA 4282 Electrical Circuitry & Parts

Descriptions: High Quality Audio Power Amplifier Voltage Regulator LA4282 10W 45V ZIP 12 Pin Dual 2 Channels Stereo Audio Board Amplifier IC LA 4282

LA4282 is a Audio Amplifier IC with ZIP-12 package and it has 12 pins. LA4282 Audio Amplifier IC has Max 45V Supply Voltage Range and 2 channels. LA4282 has 6W output power. This Audio Amplifier IC has 8 ohm output impedance. Power amplifiers are used in the output stages of audio amplifier systems to drive a loudspeaker load. They are also known as large signal power amplifiers.

Specifications:

• Product Name: LA4282
• Product Category: Comparators and Amplifiers
• Sub Category : Audio Amplifier
• Package Type: ZIP-12
• Number of Pins: 12
• Supply Voltage Range: Max 45V
• Number of Channels: 2
• Output Power: 2 X 10W
• Output Impedance 8 OHM
• Dimension: 27x19x4.5mm
• Weight approx.: 6.87gm

Features:

• Minimum number of external parts required.
• Small pop noise at the time of power supply ON/OFF and good starting balance.
• Good ripple rejection : 46dB (typ.)
• Good channel separation.
• Small residual noise (Rg=0).
• Low distortion over a wide range from low frequencies to high frequencies.
• Easy to design radiator fin.
• Built-in audio muting function..
• Thermal protector
• Over-voltage, surge voltage protector
• Pin-to-pin short protector

Package Included:

• 1 x Audio Power Amplifier LA4440 6W 9V 12V ZIP 14 Pin Dual 2 Channels Stereo Audio Board Amplifier IC
