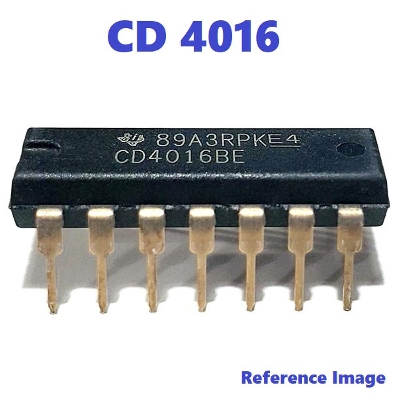

Description: A Class CD4016 IC CD 4016 DIP 14 Pin IC

The CD4016BM/CD4016BC is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with CD4066BM/ CD4066BC.

Features:

• Wide supply voltage range: 3V to 15V
• Wide range of digital and analog switching: ±7.5 VPEAK
• “ON” resistance for 15V operation: 400W (typ.)
• Matched “ON” resistance over 15V signal input: DRON = 10W (typ.)
• High degree of linearity: 0.4% distortion (typ.) @ fIS = 1 kHz, VIS = 5 Vp-p, VDD-VSS = 10V, RL = 10 kW
• Extremely low “OFF” switch leakage: 0.1 nA (typ.) @ VDD – VSS = 10V TA = 25°C
• Extremely high control input impedance: 1012W (typ.)
• Low crosstalk between switches: -50 dB (typ.) @ fIS = 0.9 MHz, RL = 1 kW
• Frequency response, switch “ON”: 40 MHz (typ.)

Applications:

• Analog signal switching/multiplexing Signal gatin Squelch control Chopper Modulator/Demodulator Commutating switch
• Digital signal switching/multiplexing
• CMOS logic implementation
• Analog-to-digital/digital-to-analog conversion
• Digital control of frequency, impedance, phase, and analog- signal gain

•  Wide supply voltage range: 3V to 15V
•  Wide range of digital and analog switching: ±7.5 VPEAK
• “ON” resistance for 15V operation: 400W (typ.)
•  Matched “ON” resistance over 15V signal input: DRON = 10W (typ.)
•  High degree of linearity: 0.4% distortion (typ.) @ fIS = 1 kHz, VIS = 5 Vp-p, VDD-VSS = 10V, RL = 10 kW
•  Extremely low “OFF” switch leakage: 0.1 nA (typ.) @ VDD – VSS = 10V TA = 25°C
•  Extremely high control input impedance: 1012W (typ.)
•  Low crosstalk between switches: -50 dB (typ.) @ fIS = 0.9 MHz, RL = 1 kW
•  Frequency response, switch “ON”: 40 MHz (typ.)
