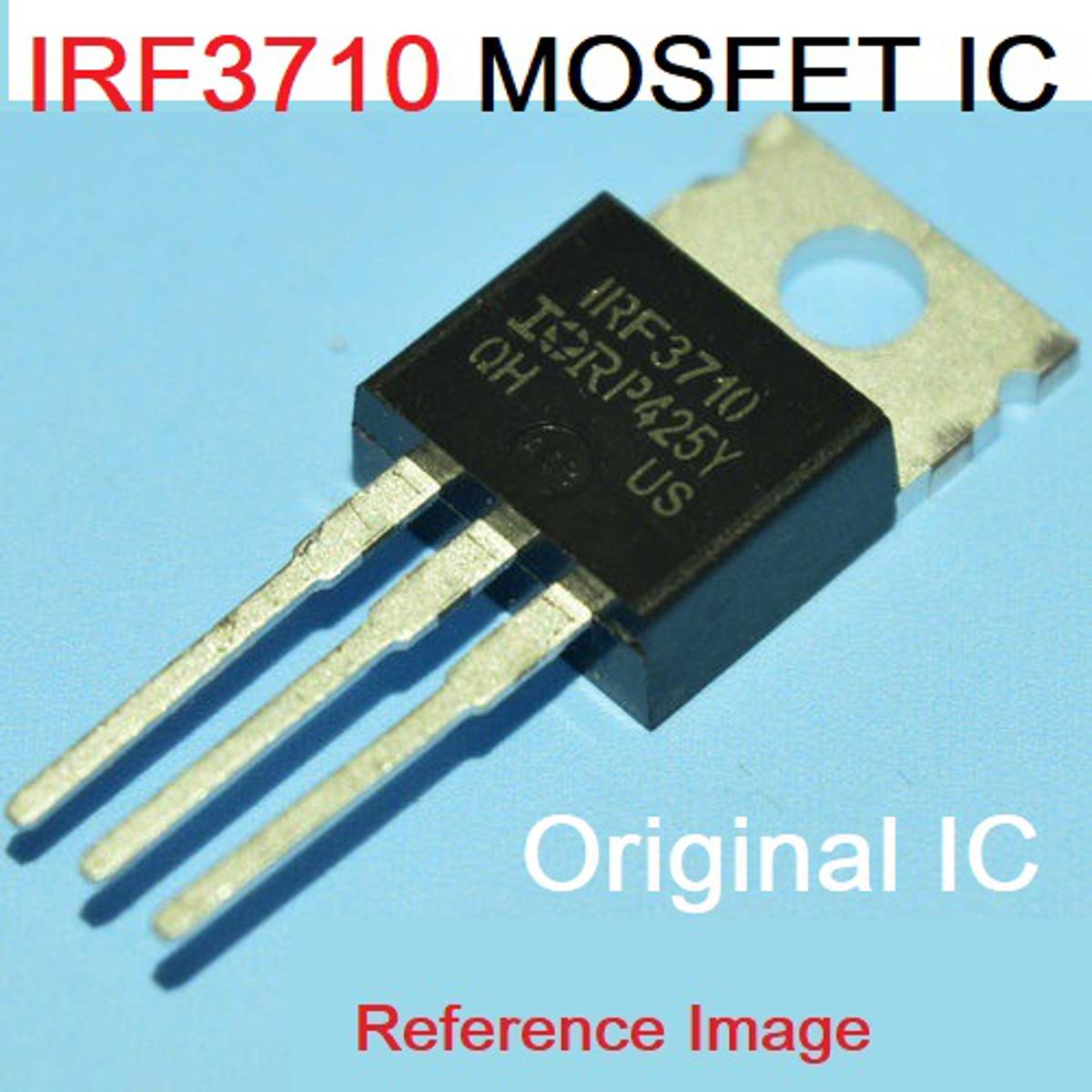

Description: IRF3710 MOSFET 100V 57A N-Channel A Class IRF 3710 Power MOSFET Transistor TO-220 Package IC Electronic Components

IRF3710 is anN-Channel Power MOSFET which utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area, this design enables the transistor for fast switching speeds and ruggedized device design. IRF3710 being extremely efficient and reliable device, therefore used in wide variety of applications. Even the TO-220 package is universally preferred for many commercial-industrial applications at power dissipation levels to Roughly 50 watts. The low thermal resistance and low package cost of the TO-220 bring about its acceptance across the industry.

The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Features:

• Type = N-Channel
• Category = IRF series
• Department = Transistors
• Drain-Source Volt (Vds) = 100V
• Advanced process technology
• Gate-Source Volt (Vgs) = 20V
• Ultra-low on-resistance

• Drain Current (Id): 57A
• Power Dissipation (Ptot) = 200W
• Fully avalanche rated
• Dynamic dv/dt rating

Application

• Used in switching applications
• Used in USP
• Employed in Inverters
• Used in embedded projects
• Employed in instrumentation projects

Package Include:

• 1 x IRF3710 MOSFET 100V 57A N-Channel A Class IRF 3710 Power MOSFET Transistor TO-220 Package IC Electronic Components

• Type = N-Channel
• Category = IRF series
• Department = Transistors
• Drain-Source Volt (Vds) = 100V
• Advanced process technology
• Gate-Source Volt (Vgs) = 20V
• Ultra-low on-resistance
• Drain Current (Id): 57A
• Power Dissipation (Ptot) = 200W
• Fully avalanche rated
• Dynamic dv/dt rating
