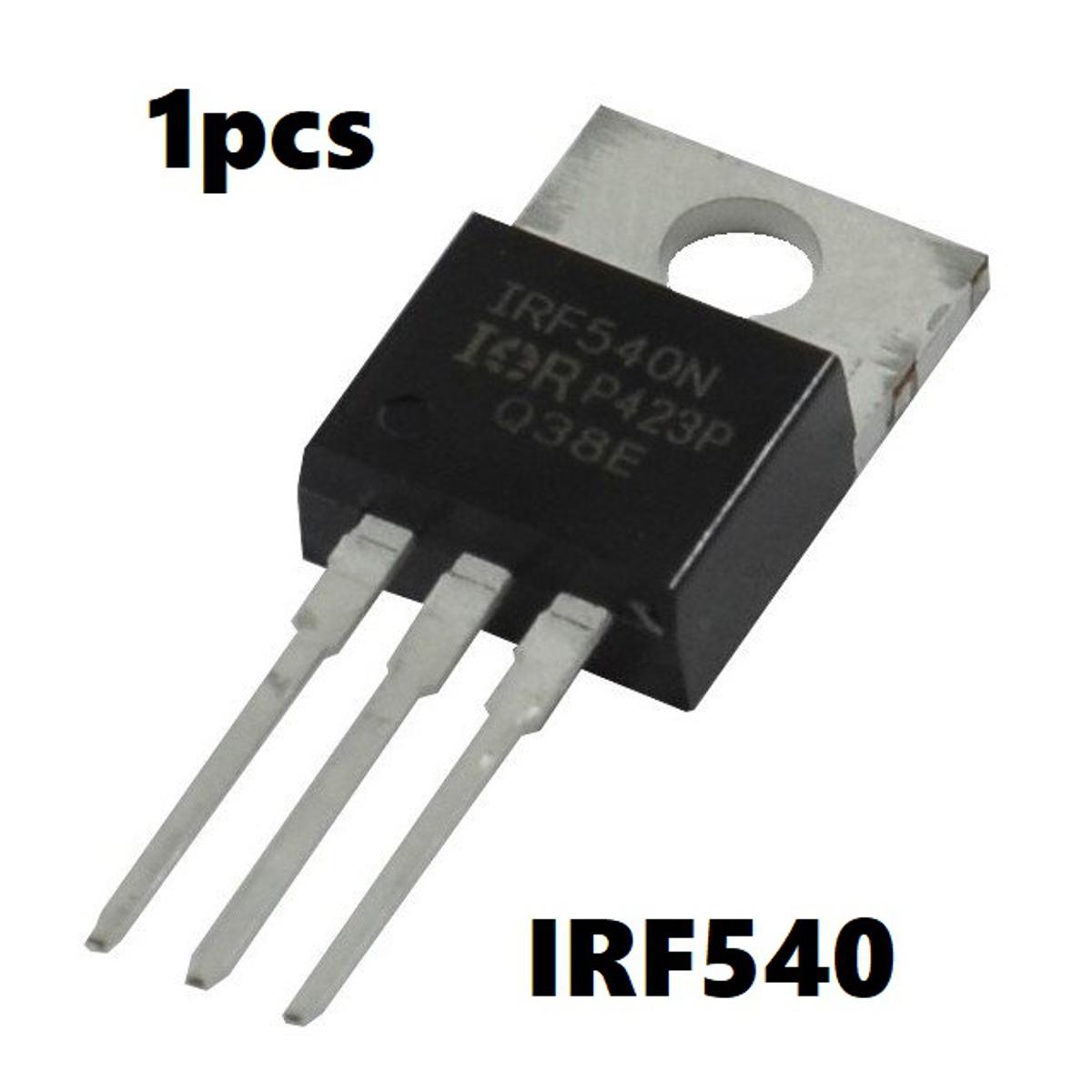

Description: IRF540 N Channel MOSFET

These are N – Channel 100V – 00.50W – 30A – TO-220/TO-220FI Power MOSFETs.

Features:

• Typical RDS(on) = 0.050 W
• Avalanche rugged technology
• 100% Avalanche tested
• Repetitive avalanche data at 100oc
• Low gate charge
• High current capability
• 175oC Operating temperature
• Application oriented characterization

Application:

• High current, high speed switching
• Solenoid and relay drivers
• DC-DC& DC-AC converter
• Automotive environment (injection,abs, air-bag, lamp drivers etc.)
• Minimum Drain to Source Voltage,VDSS:100V
• Minimum Drain Current,ID:30A
• Maximum Static Drain-source On Resistance:0.077Ω

• Typical RDS(on) = 0.050 W
• Avalanche rugged technology
• 100% Avalanche tested
• Repetitive avalanche data at 100oc
• Low gate charge
• High current capability
• 175oC Operating temperature
• Application oriented characterization
