Description: A Class 3525 PWM

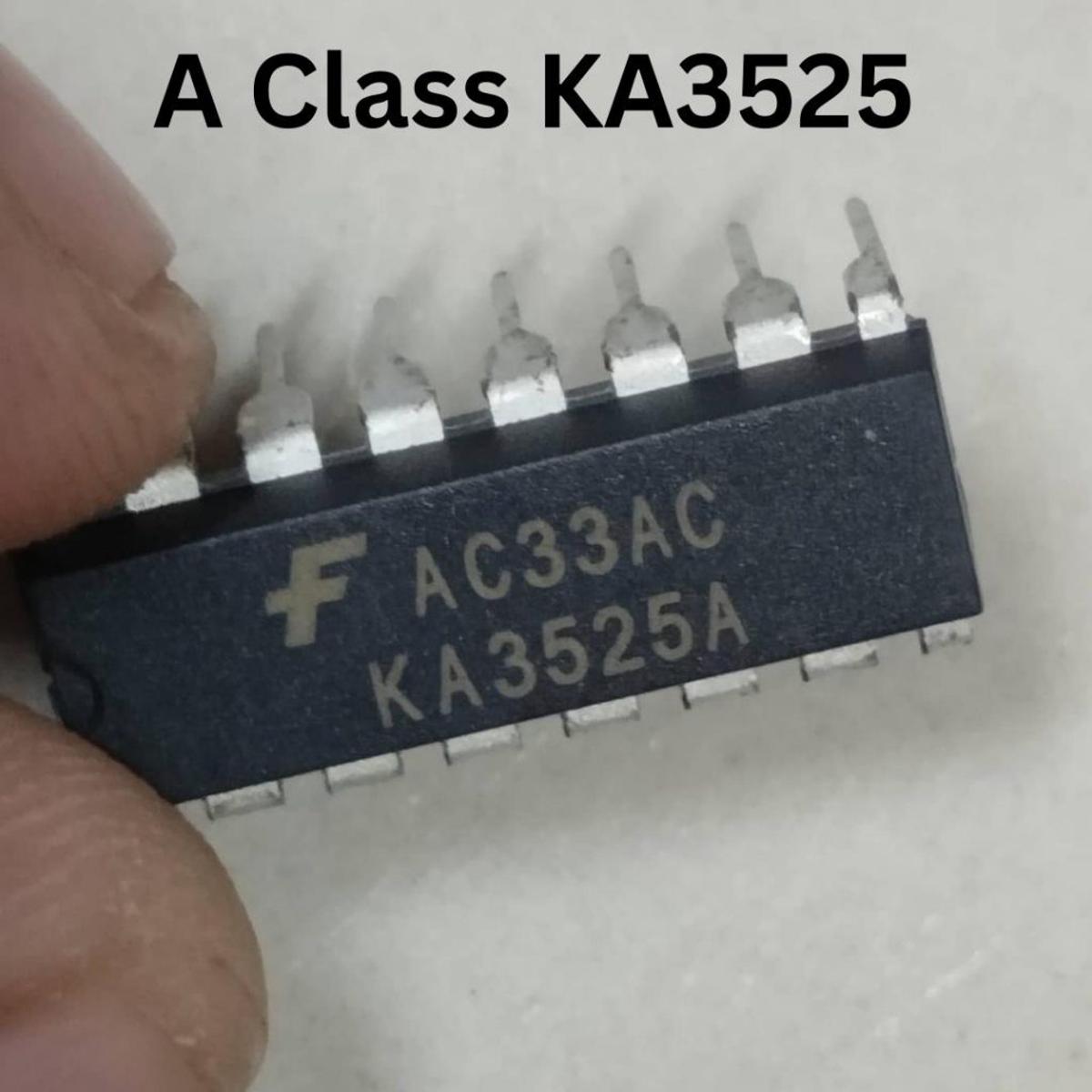

A Class KA3525 PWM IC SG3525 3525 Regulating Pulse Width Modulator IC PWM 16 Pin Leads DIP-16 Dual In Line Package Chip

The KA3525A is a monolithic integrated circuit that Included all of the control circuit necessary for a pulse width modulating regulator. There are a voltage reference, an error amplifier, a pulse width modulator, an oscillator, under-voltage lockout, soft start circuit, and output drivers in the chip.

Features:

• Maximum Supply Voltage:40V
• Operating Temperature:0~+70°C
• Maximum Power Dissipation:100mW
• Model: KA 3525

• Maximum Supply Voltage:40V
• Operating Temperature:0~+70°C
• Maximum Power Dissipation:100mW
• High Quality
• Made In China
• Model: 3525 PWM
