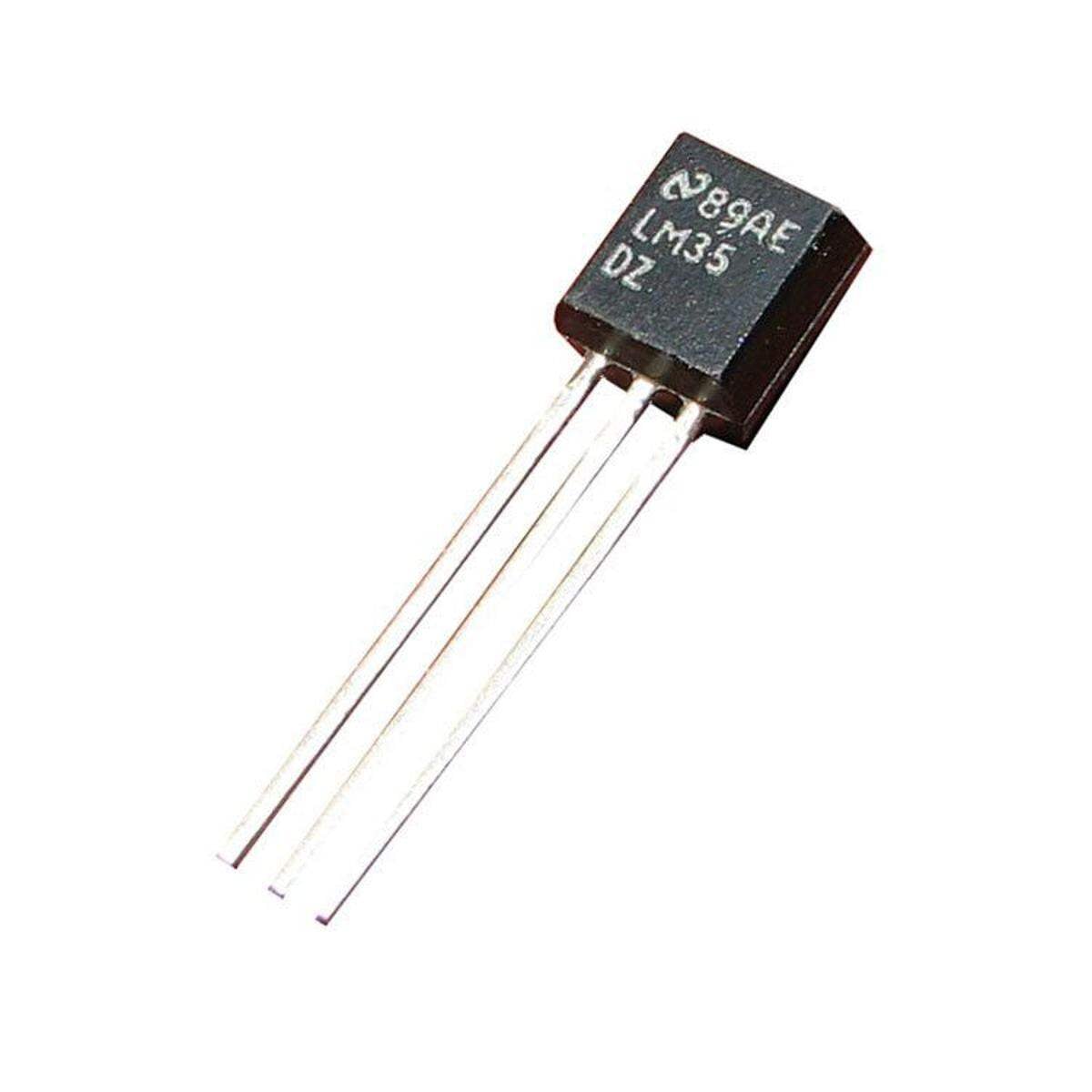

A Class LM35DZ LM35 LM-35 Temperature Sensor IC DC 4V To 30V 60mA 3 Pin Precision Centigrade Temperature Sensors TO-92 Package Electrical Circuitry & Parts

Brand
Category: Computers, Components & Accessories
SKU: ELPB1016533
Manufacturer: No Brand
Seller: Electronics Parts BD
Tk 240
0 review(s)

Call For Order : 09613-800800

Description: LM35-TO-92 Temperature Sensor

LM35DZ LM35 LM-35 Temperature Sensor IC DC 4V To 30V 60mA 3 Pin Precision Centigrade Temperature Sensors TO-92 Package Electrical Circuitry & Parts

The lm35 temperature sensor circuit:

As such no extra components required to interface LM35 to ADC as the output of LM35 is linear with 10mv/degree scale. any 10 or 12 bit ADC interfaced directly with lm35. But if you are using an 8-bit ADC like ADC0808 or ADC0804 an amplifier section will be useful if you require measuring 1°C change.

LM35 directly connected to Arduino. The output of LM35 temperature goes to comparator circuit and used for over temperature indication or by using a simple relay, used as a temperature controller.

Features:

  • Calibrated Directly in Celsius (Centigrade)
  • Linear + 10-mV/°C Scale Factor
  • 0.5°C Ensured Accuracy (at 25°C)
  • Rated for Full −55°C to 150°C Range
  • Suitable for Remote Applications
  • Low-Cost Due to Wafer-Level Trimming
  • Operates From 4 V to 30 V
  • Less Than 60-µA Current Drain
  • Low Self-Heating, 0.08°C in Still Air
  • Non-Linearity Only ±¼°C Typical
  • Low-Impedance Output, 0.1 Ω for 1-mA Load

Specification:

  • Supply voltage: 4 V to 30 V
  • The scale is calibrated to degrees of Celsius
  • Linear scale: 10,0 mV/°C
  • Accuracy 0.5 °C
  • Measuring range: from-55 °Cto 150°C
  • Current of drain is below 60 mA

Package included:

  • 1 x LM35DZ LM35 Temperature Sensor IC LM 35 Precision Centigrade Temperature Sensors TO-92 Package IC
